$755.00 AUD $690.00 AUD
PRE-ORDER NOW, DISPATCHES IN 2 TO 3 WEEKS.
LCD: Green (images depict DarkEdition LCD)

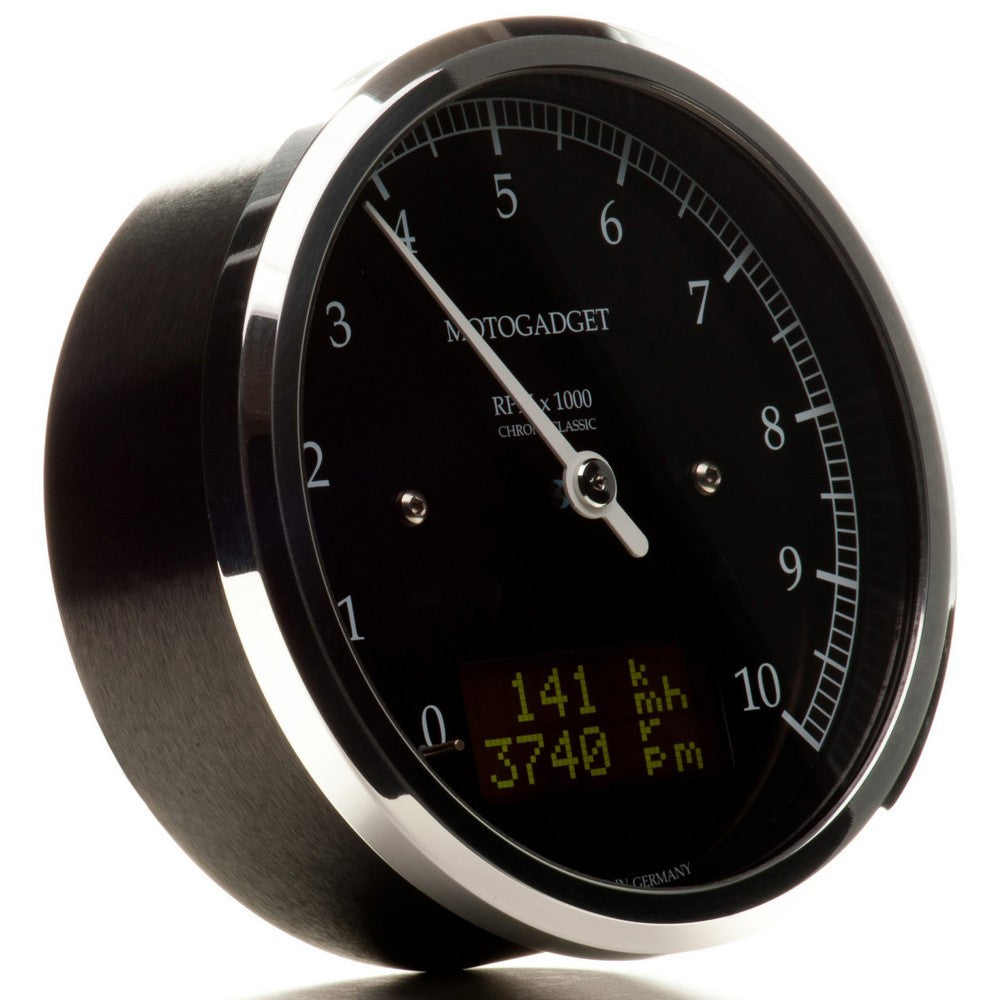

The motogadget chronoclassic is a digital multi-purpose instrument in a classic round casing.
Technically identical to the motoscope classic, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.
Please note that temperature and pressure sensors have to be ordered separately (refer to 'Accessories').
Mounting diameter: 80 mm
Total diameter (bezel): 85 mm
Depth without cable fitting: 34 mm
Weight: approx. 230 g
Mount: 3 x M4 threaded hole
Power consumption, operating: approx. 200 mA (load dependent)
Power consumption, standby: 0 mA
Operating voltage: 9 V - 18 V
Operating temperature: -20°... +80°C
Rev counter (analogue/indicator): 0 – 8, 10, 14 krpm
Speedometer: (LCD) 0 – 350 km/h or mi/h
Trip meter: 999 km or mi max.
Total distance: (adjustable) 250000 km or mi max.
Journey time display: 0 – 99:99:99 h/min/s
Rev counter (on LCD): 0 – 20000 rpm
RPM threshold warning, adjustable: (int. LED and ext. gear shift flash) 0 – 20000 rpm
On-board voltage display: 9 V – 18 V
NEW! Low voltage warning: LED blinks if on-board voltage drops below approx. 11V - replacement for battery charge status light
Air temperature* (optional instead of water temp.): -20 - 80 °C / -4 - 176 °F with high-/low warning
Water temperature* (optional instead of air temp.): 40 - 120 °C / 104 - 248 °F with high-/low warning
Oil temperature*: 40 - 160 °C / 104 - 320 °F with high-/low warning
Oil pressure*: 0 - 8 bar / 0 - 116 psi with high-/low warning
Timer: 0 - 100 km/h or 0 - 60 mi/h 0.0 – 99.9 s
Current acceleration: (-20.0) – 20.0 m/s2
Average speed: 0 – 350 km/h or mi/h
Max. speed: 0 – 350 km/h or mi/h
Max. rpm: 0 – 20.000 rpm
Max. positive acceleration: 0 – 20.0 m/s2
Max. negative acceleration: 0 – (-20.0) m/s2
Gear indicator: N, gear 1 - 6
Green indicator LED: Neutral (N)
Yellow indicator LED: Turn signal left, right
Blue indicator LED: High beam
Red indicator LED: Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage)
Output external gear shift flash light: Switched power 1.4 A max.
