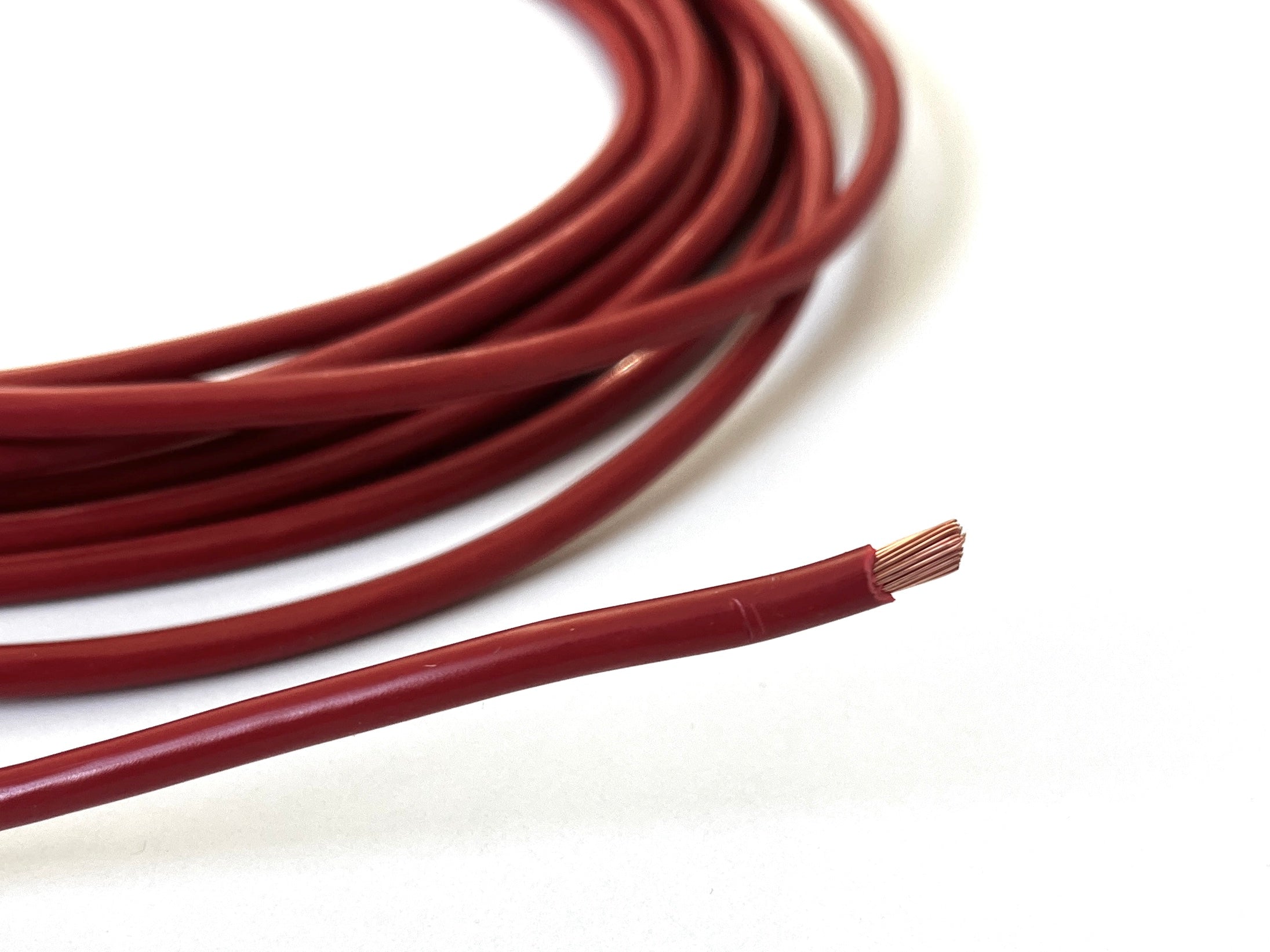

Thinwall Cable, 6mm², 50 Amps, Red
$4.00 AUD
Single core cable insulated in thin-walled PVC, resulting in a much slimmer and lighter wiring harness without compromising on safety and durability. This makes it easier to conceal wiring on custom builds, particularly those with limited space.
Thinwall cables are around 32% lighter and 22% narrower than standard cables!
For high temperature, low voltage automotive applications.
Suitable for use at temperatures from -40°C to 105°C with excursions up to 120°C.
Suitable for 12V & 24V systems (maximum 60V).
The PVC insulation offers good resistance to abrasion and cut-through, and good resistance to petrol, lubricating oils and diluted acids.
Cores manufactured to ISO 6722-1:2011 (Class B) 105°C.
Plain Copper Conductors to BS EN 60228:2005 - PVC Insulated.
Specifications
Voltage Rating: 12V to 24V
Current Rating: 50A
Maximum Overall Diameter: 4.10mm
Conductor Specification: 84/0.30mm
Conductor Cross Section: 6mm²
Maximum Loading: 600W @ 12V / 1200W @ 24V
Price is per 25cm in length. Quantities greater than 25cm is supplied in one continuous length.
