mo.lock NFC Cable Kit, High-Temp, Automotive Thinwall, Dual-Fuse
AUD120.00

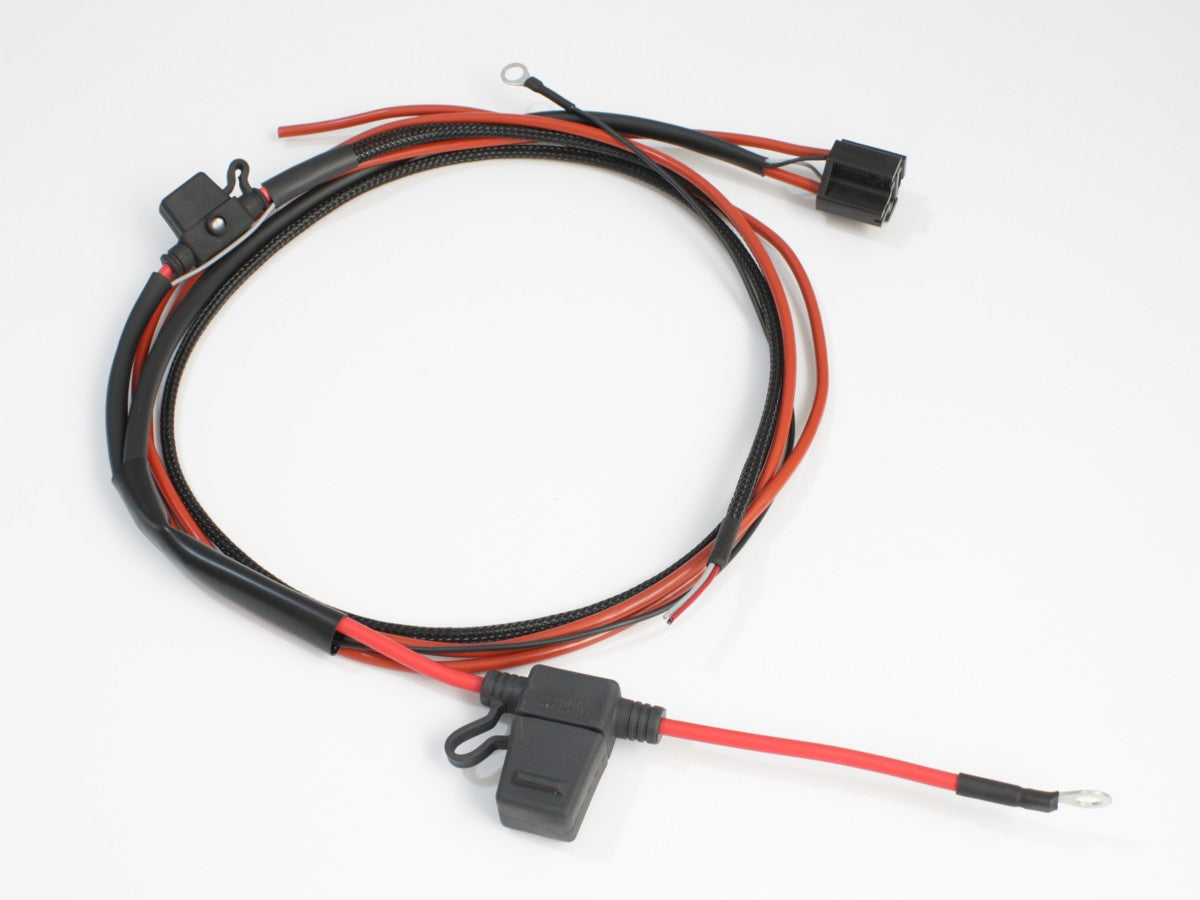

A complete, made-to-order mo.lock wiring harness, hand-built in Australia with dual-fuse protection and cut to the exact length your bike needs.
Dual-Fuse Protection
Our mo.lock cable kit includes two fuses: a 40A JCASE fuse on the main relay cable, and a dedicated 7.5A mini-blade fuse on the mo.lock power cable. The mains cable and the mo.lock power cable are different gauges with very different current-carrying capacities, so we fuse them separately, each conductor protected to its own actual rating, not the heaviest cable in the circuit. It's a small addition, but one we think matters on a motorcycle wiring harness.
Plug-and-Play Installation

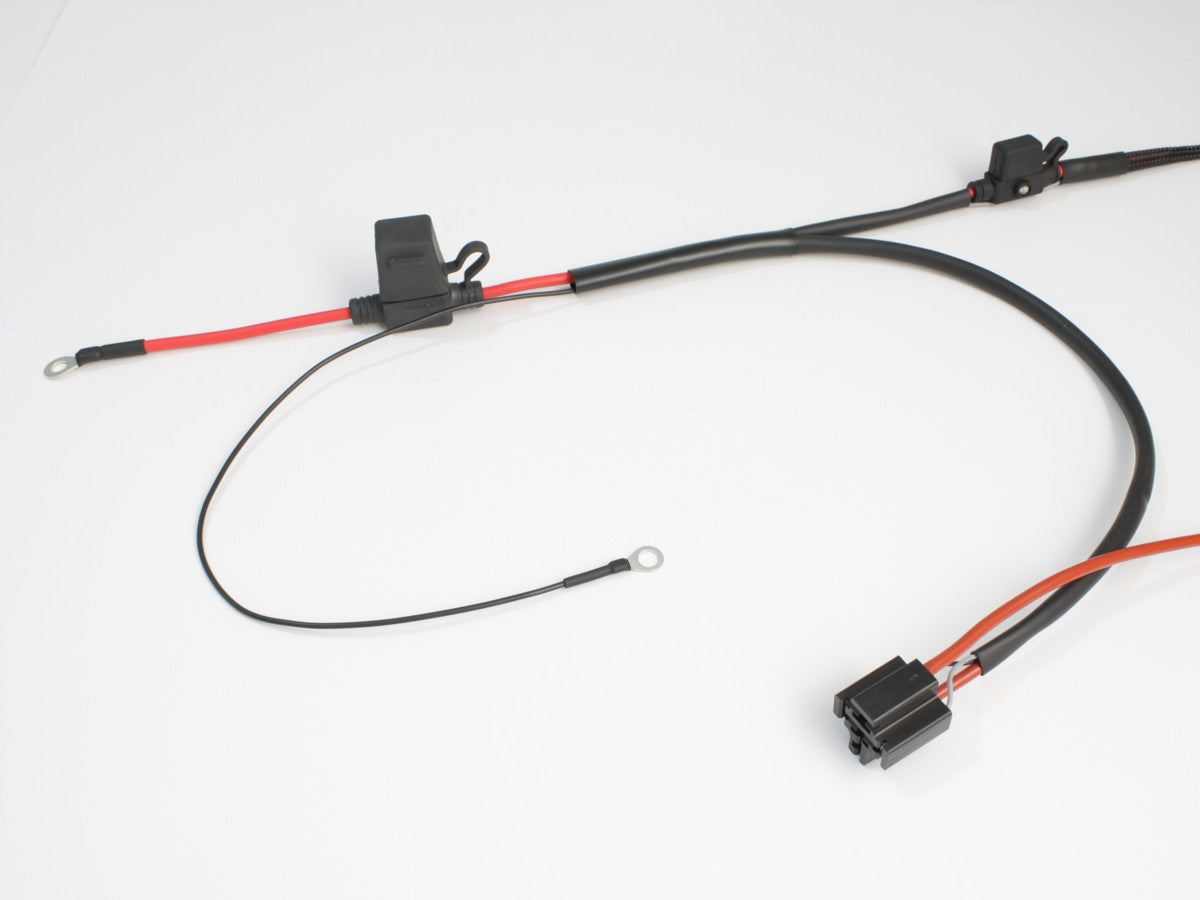

Our mo.lock cable kit is a complete, ready-to-fit harness, designed to get your mo.lock up and running with minimal fuss. Plug the relay (supplied with your mo.lock) into the relay socket, connect the 3-core cable to the mo.lock, and attach the two ring terminals to your battery. No soldering, no crimping, nothing left to figure out.
Made to Length, Not Just to Fit
Because we hand-build every mo.lock cable kit in-house, we're not limited to a single one-size-fits-all length. Choose the length that suits your bike. From 75cm for tight, minimalist builds right up to 225cm for larger machines or non-standard mounting positions, so you get a clean install with no excess cable to coil up and hide.
Select your lengths independently for each circuit:
Battery to mo.lock: 75 / 100 / 125 / 150 / 175 / 200 / 225cm
Battery to main harness connection: 75 / 100 / 125 / 150 / 175 / 200 / 225cm
3-Year Warranty!
Manufactured by us here in Australia using the highest quality components. If the cable fails within 3 years of purchase, we will replace it for you free of charge.
Specifications
Main Fuse Holder
Max. Current Rating: 40A
Current Rating (Continuous): 30A
Max. Voltage Rating: 132V
Maximum Overall Cable Diameter: 4.55mm
Conductor Cross Section: 6mm² (10AWG)
Ingress Protection: IP67 / IP69K (with cover sealed)
Operating Temperature: -40°C to +125°C
Ring Terminal: M6
Includes 2 x 40A JCASE fuses
mo.lock Fuse Holder
Max. Current Rating: 30A
Max. Voltage Rating: 32V
Maximum Overall Cable Diameter: 4mm
Conductor Cross Section: 3.5mm²
Includes 2 x 7.5A mini-blade fuses
Features LED indicator which illuminates when fuse is blown.
Mains Cable
Current Rating: 50A
Voltage Rating: 12V to 24V
Maximum Overall Diameter: 4.10mm
Conductor Specification: 84/0.30mm
Conductor Cross Section: 6mm²
Temperature Range: -40°C to 105°C with excursions up to 120°C.
mo.lock Cables
Current Rating: 11A
Voltage Rating: 12V to 24V
Maximum Overall Diameter: 1.6mm
Conductor Specification: 16/0.2mm
Conductor Cross Section: 0.5mm²
Temperature Range: -40°C to 105°C with excursions up to 120°C.
Sleeving: braided, black PET sleeving, -50ºc to +150ºc
Sleeved Diameter: 4.5mm
Negative Battery Cable
Current Rating: 16.5A
Voltage Rating: 12V to 24V
Maximum Overall Diameter: 1.95mm
Conductor Specification: 32/0.2mm
Conductor Cross Section: 1mm²
Ring Terminal: M6
Note: The mo.lock NFC cable kit is not required if the mo.lock is to be connected to a mo.unit blue/basic.
