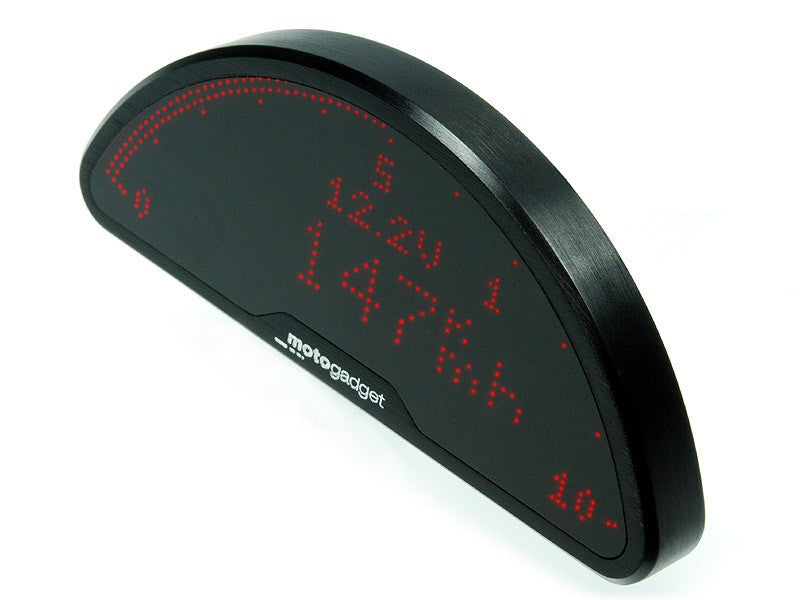

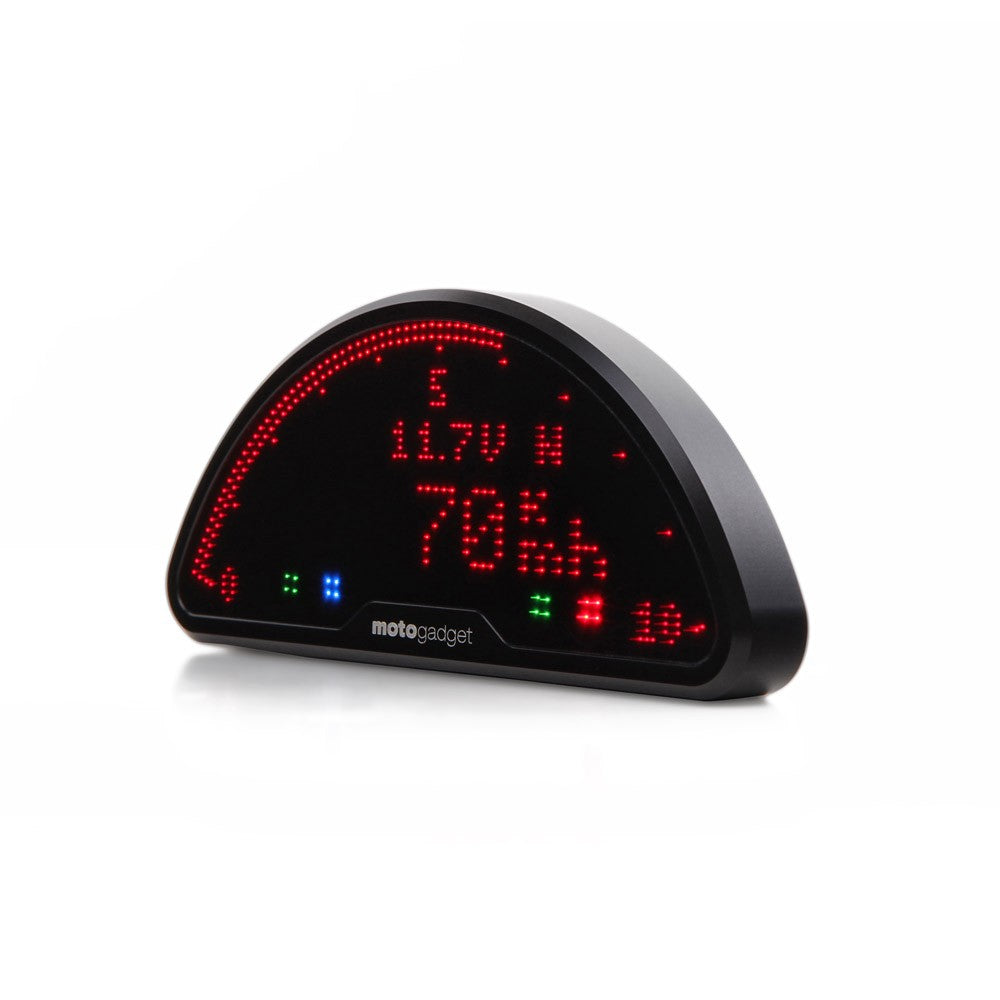

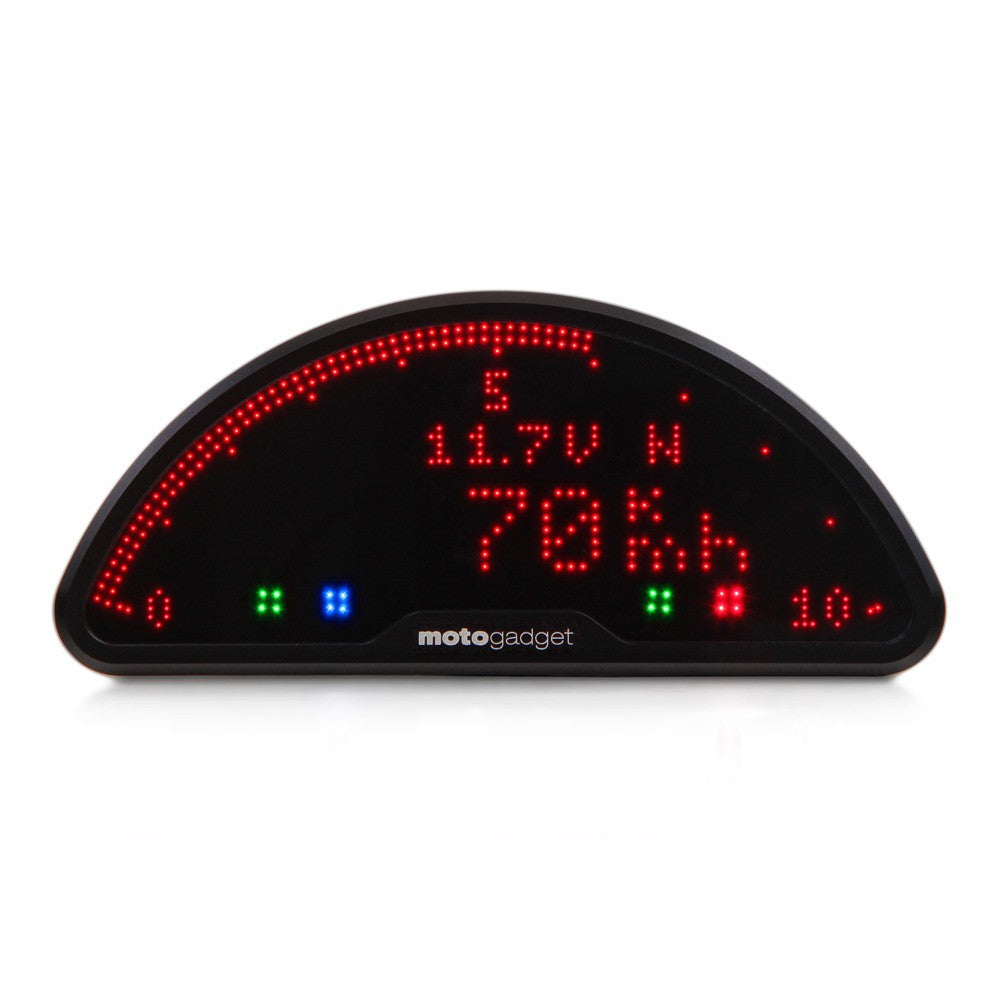

Motogadget motoscope pro, Digital Dashboard for BMW R Nine T


The motoscope pro BMW R9Te is the only plug & play instrument on the market.

The CAN-Bus interface of the motoscope pro enables the complete display of all original functions (except settings for heated grips). The original plug connector for the original wiring loom makes the instrument a real plug & play solution and very simple to instal.

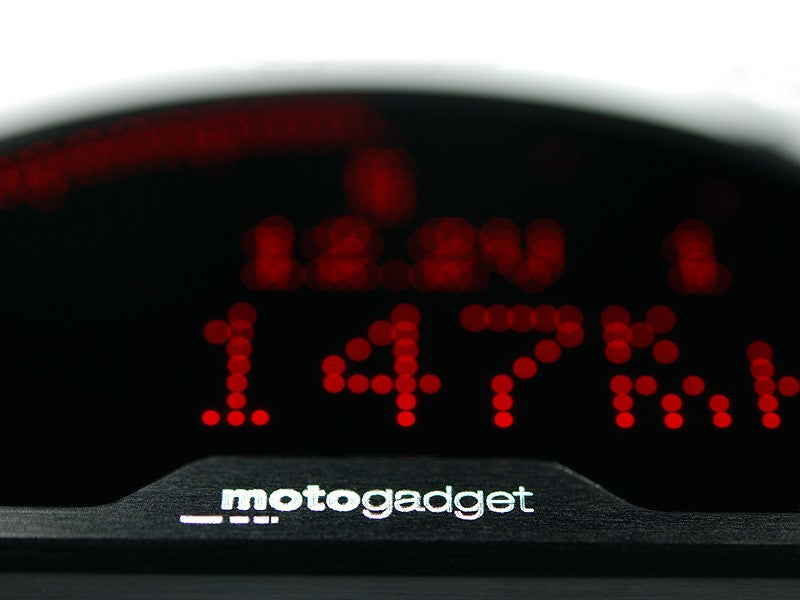

An LED matrix display enables an ultra thin housing design. 734 LEDs controlled by a 16-bit RISC processor - create an almost rimless, self-illuminating display. It provides optimal readability even under conditions of direct sunlight assisted by automatic brightness control.

The rev-counter is displayed fully scalable via the analogue LED band with drag indicator function. Main and secondary display are user configurable. Another display section shows the gear currently engaged.

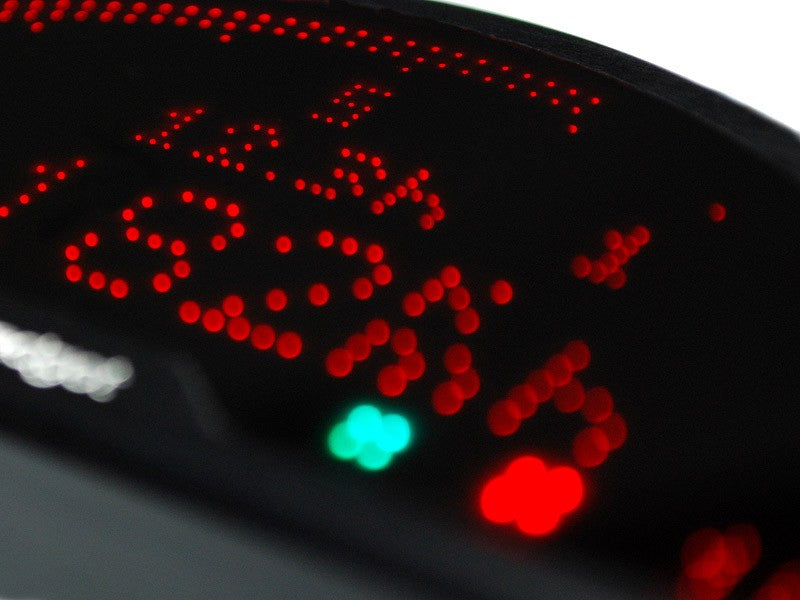

Four indicator lights are pre-installed and can be used for far more input signals.

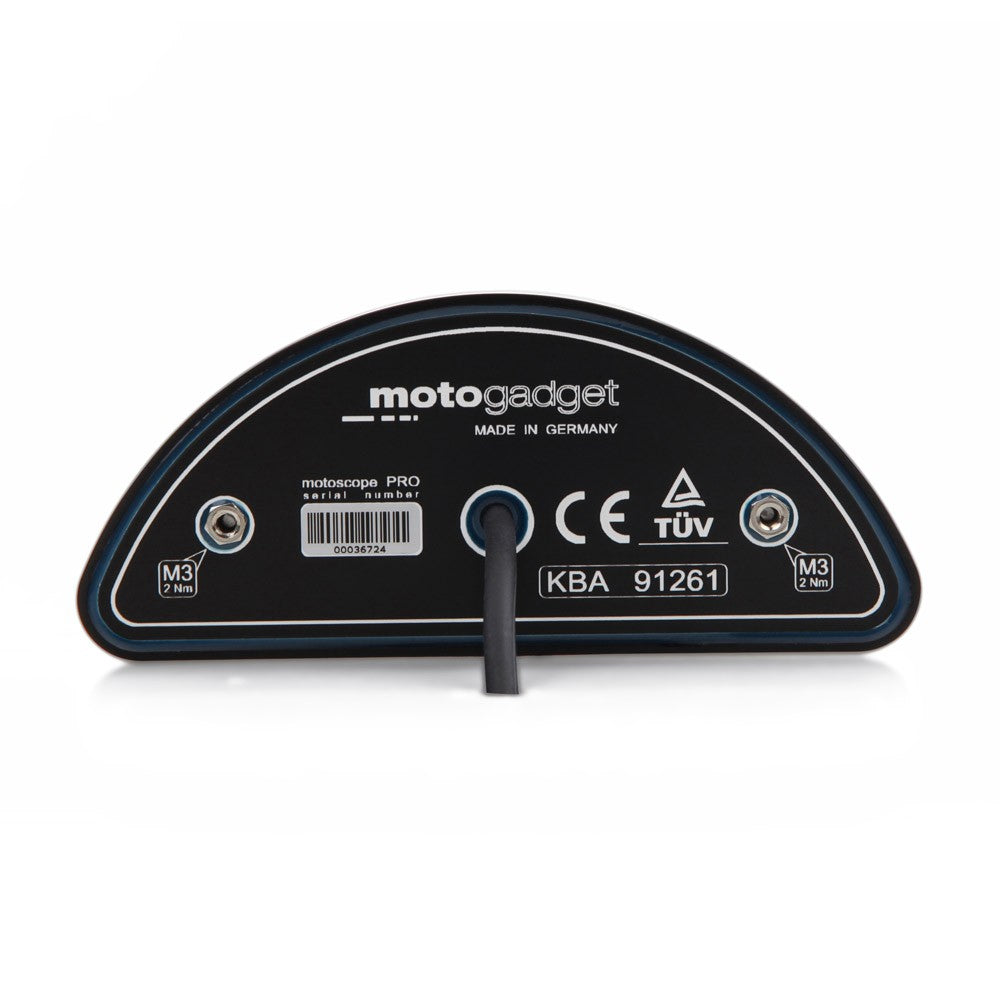

The billet aluminium casing is cnc-machined and is easily mounted by two backside threaded holes. The instrument is equipped with an ABE approval.

Compatible with BMW R nineT Model 2014, 2015, 2016.

NOT compatible with BMW R nineT Model 2017 and later, R nineT Urban G/S, R nineT Pure, R nineT Racer, R nineT Scrambler.

Specifications and Features

Length/Width/Depth: 109 x 47 x 11mm
Weight w/ cable: approx. 100 g
Mount: 2 x M3 threaded hole
Power consumption, operating: max. 200 mA (load dependent)
Power consumption, standby: 0.4 mA (load dependent)
Operating voltage: 9 V - 15 V
Operating temperature: -20°... +80°C
Rev counter (LED bargraph): 0 – 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
Speedometer: 0 – 350 km/h or mph
Trip meter A: up to 999.9 km or mi
Trip meter B: up to 999.9 km or mi
Total mileage (adjustable): up to 250,000 km or mi
Operating hours/Service: 0 – 9999.5 h
Clock: 23:59 h/min
Hourmeter: 0 – 99:59:59 h/min/s
RPM count (on LCD): 0 – 20000 rpm
Adjustable RPM warning (gear shift flash): 0 – 20000 rpm
On-board voltage: 9 – 18 V
Low voltage warning: warning if below approx. 11V
Timer 0 - 100 km/h or 0 - 60 mph: 0.00 – 30.59 sec.
Actual accelleration: +/- 0.00 – 1.50 G
Average speed: 0 – 350 km/h or mph
Max. speed: 0 – 350 km/h or mph
Max. RPM: 0 – 20000 rpm
Max. positive acceleration: +1.50 G
Max. negative acceleration: - 1.50 G
Gear display: N, gear 1 - 6
Green control LED: Neutral (N)
Green control LED: Indicator left/right
blue control LED: High beam
Red control LED: Miscellaneous, e.g. check engine, ABS, low fuel
Fuel/Reserve: low warning

Package Contents

  • motoscope pro with ca. 70 cm connector cable
  • 2 stainless steel screws
  • Detailed installation and operating instructions

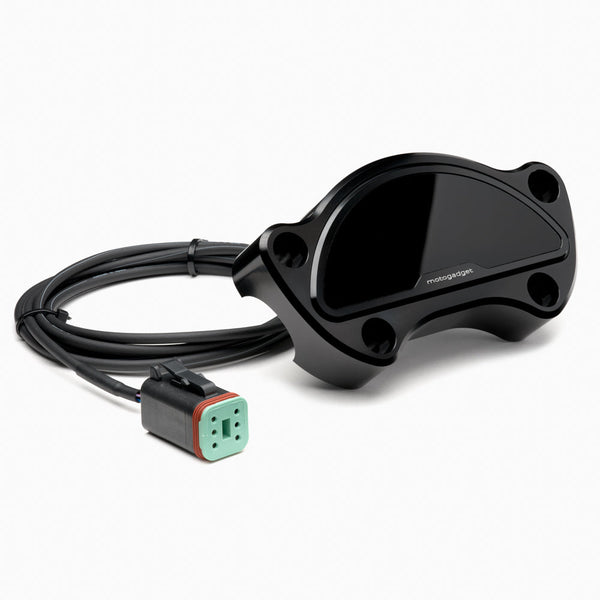

Mounting bracket for the BMW R9T sold separately.

Please note: Touch sensor has been discontinued. Heated-Grip-Control may not work.


*subject to manufacturer availability
