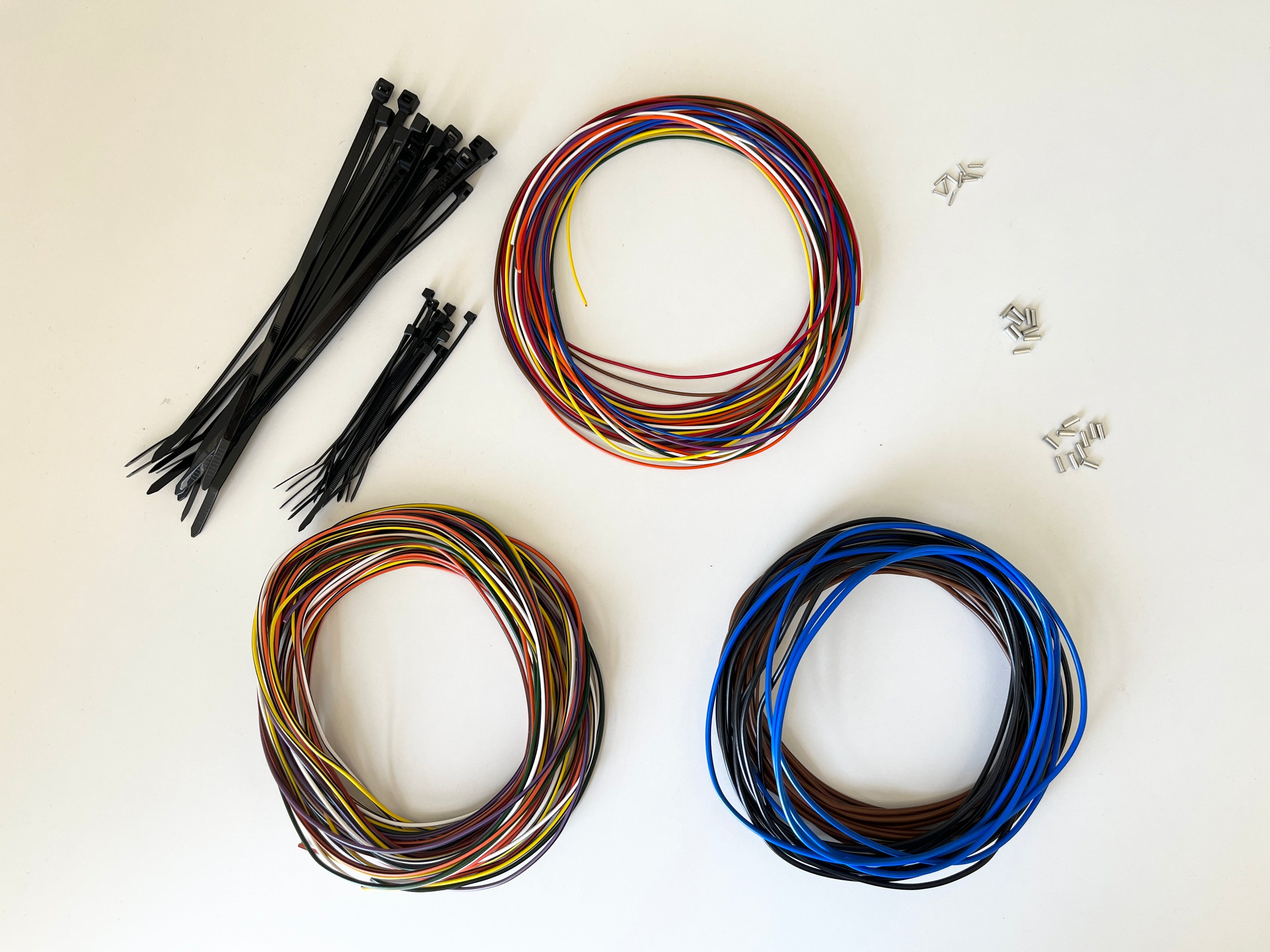

MMCC Thinwall Cable Kit for mo.unit

This kit has been put together by us here at MMCC using the same components we use in all our builds.

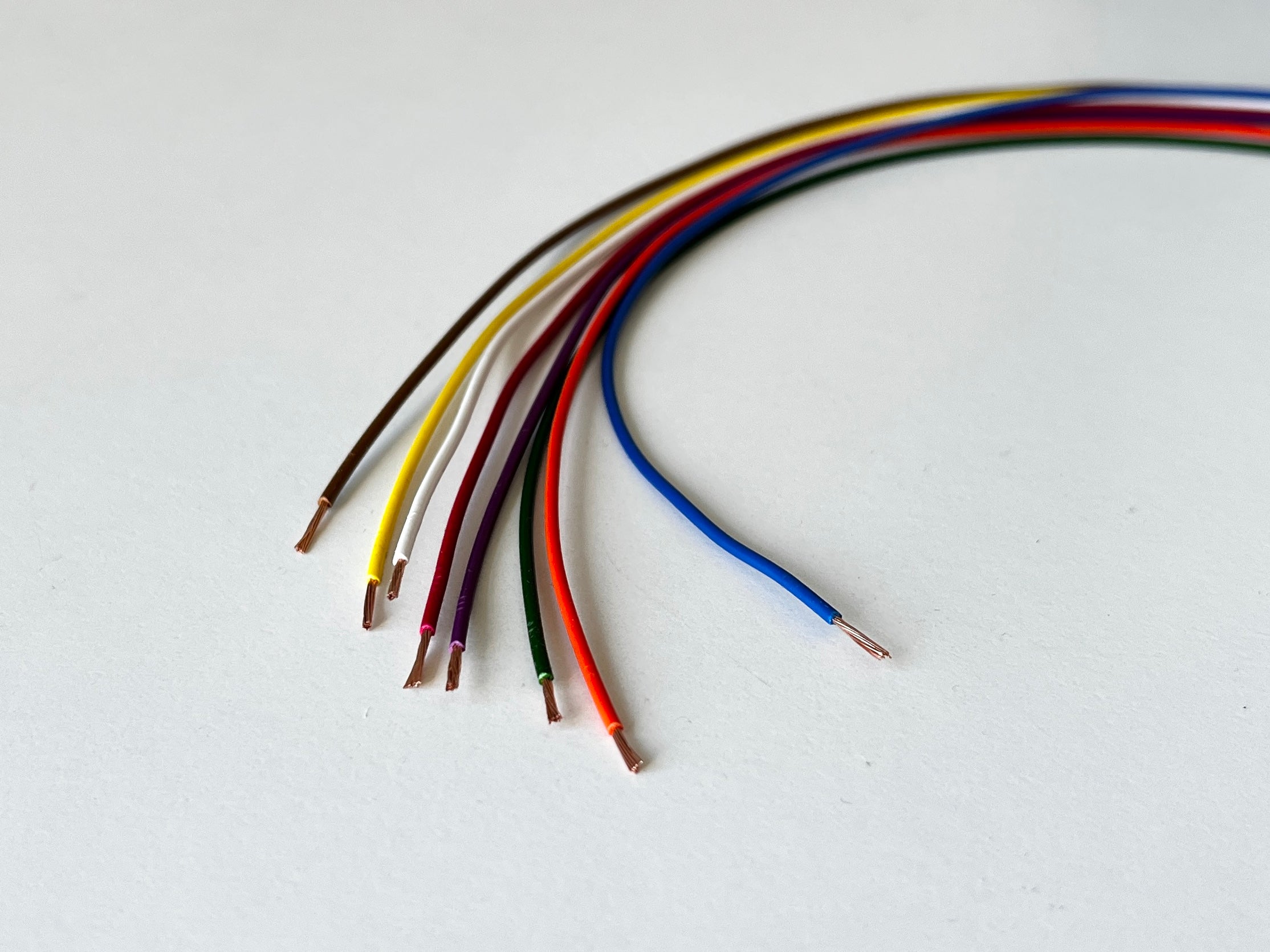

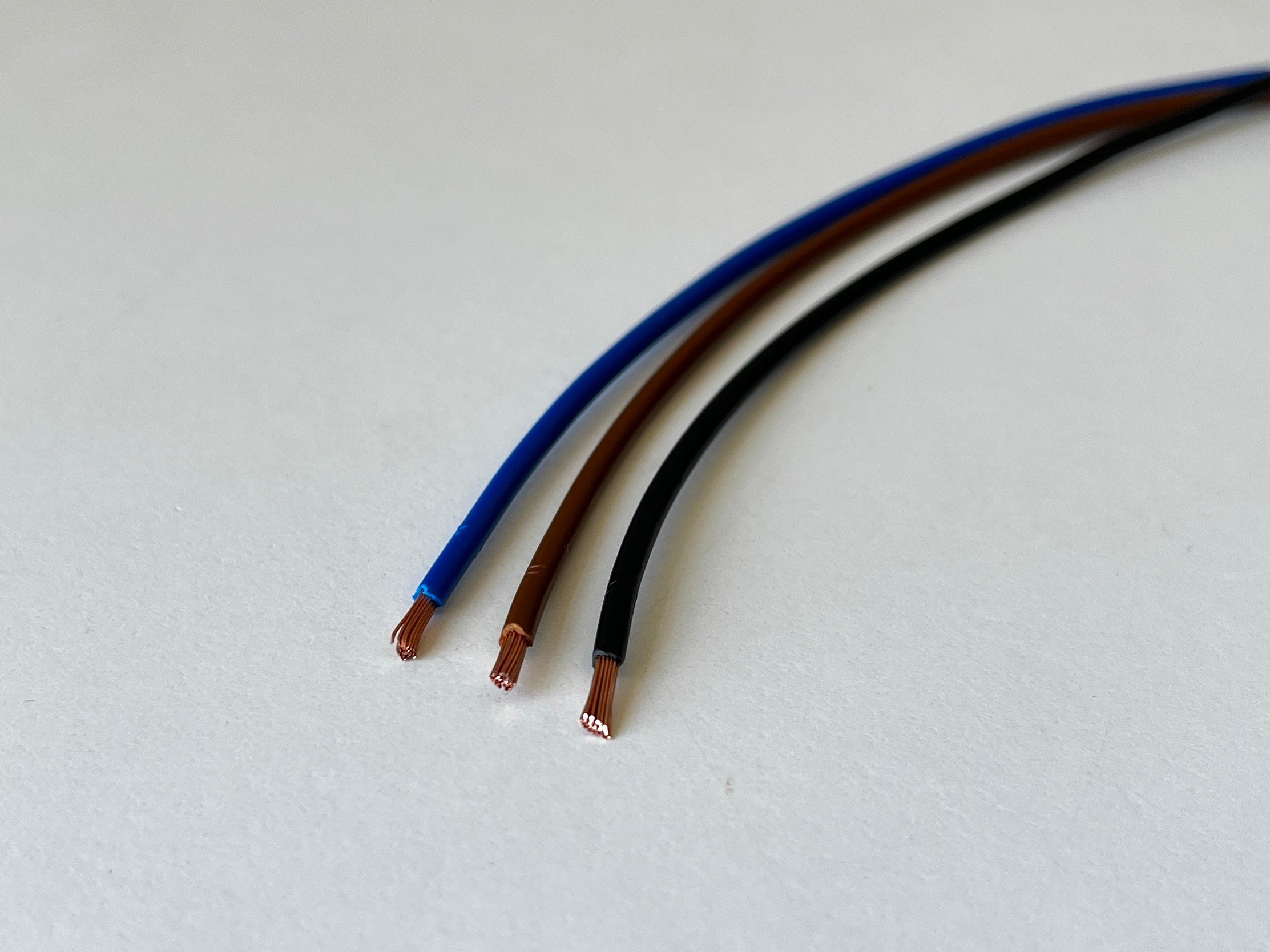

Our cables are insulated in thin-walled PVC, resulting in a much slimmer and lighter wiring harness without compromising on safety and durability. This makes it easier to conceal wiring on custom builds, particularly those with limited space.

Thinwall cables are around 32% lighter and 22% thinner than standard cables!

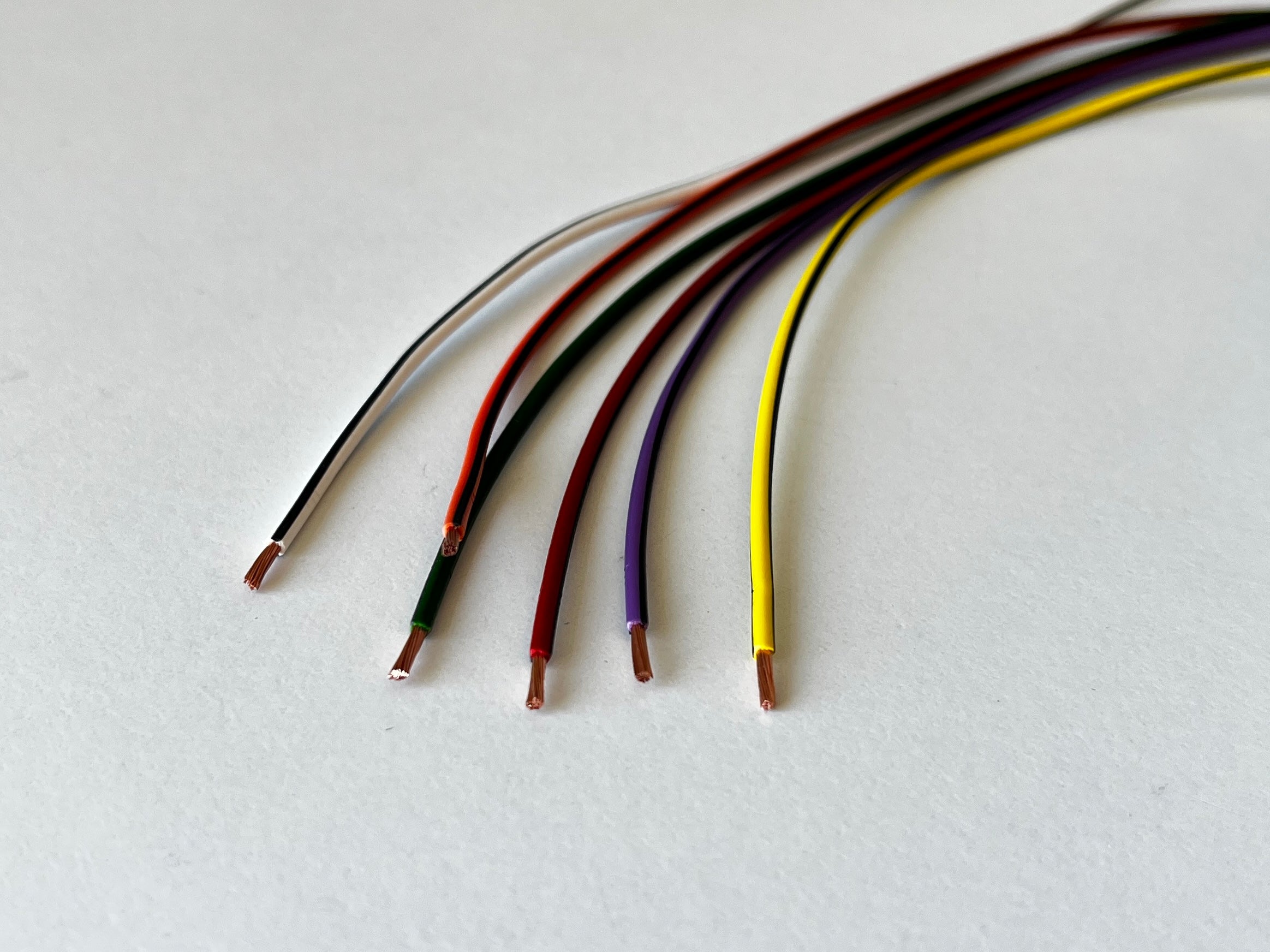

Our 1mm² cables have a black tracer making identification easier when wiring up.

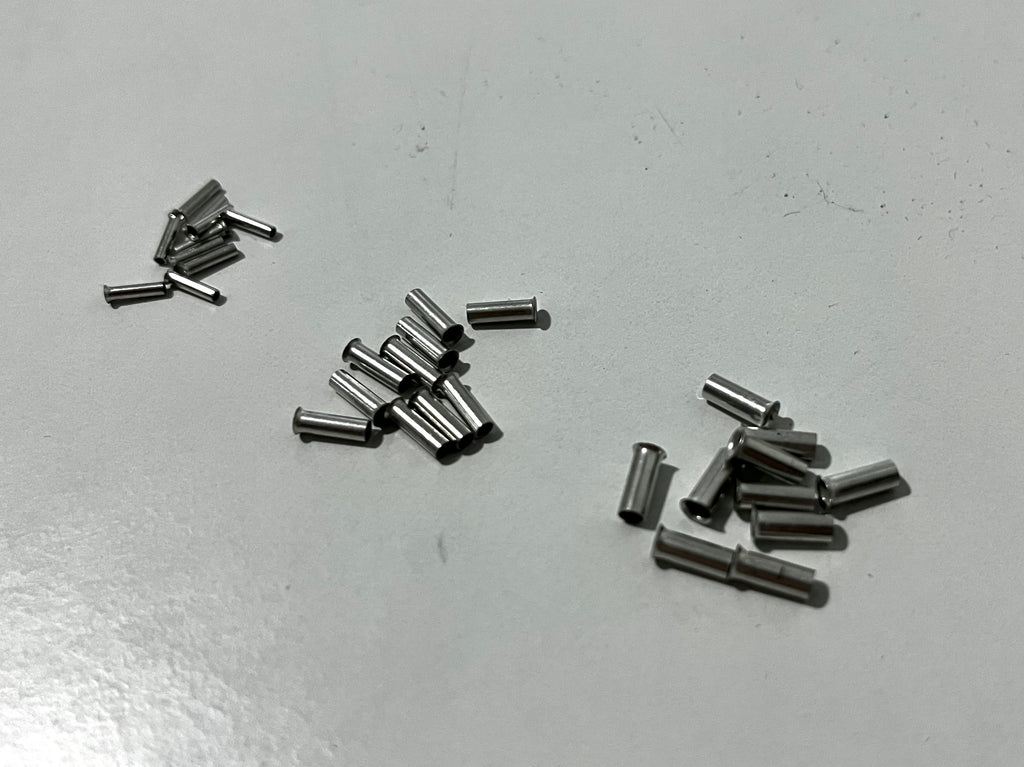

Includes bootlace ferrules which can be crimped or soldered onto the cable ends which connect to the mo.unit, making connection and disconnection quick and smooth.

For high temperature, low voltage automotive applications.

Suitable for use at temperatures from -40°C to 105°C with excursions up to 120°C.

Suitable for 12V & 24V systems (maximum 60V).

The PVC insulation offers good resistance to abrasion and cut-through, and good resistance to petrol, lubricating oils and diluted acids.

Cores manufactured to ISO 6722-1:2011 (Class B) 105°C.

Plain Copper Conductors to BS EN 60228:2005 - PVC Insulated.

The total length of cables is more than enough for the great majority of builds.

Total weight of cables: 530 grams.

Parts delivered

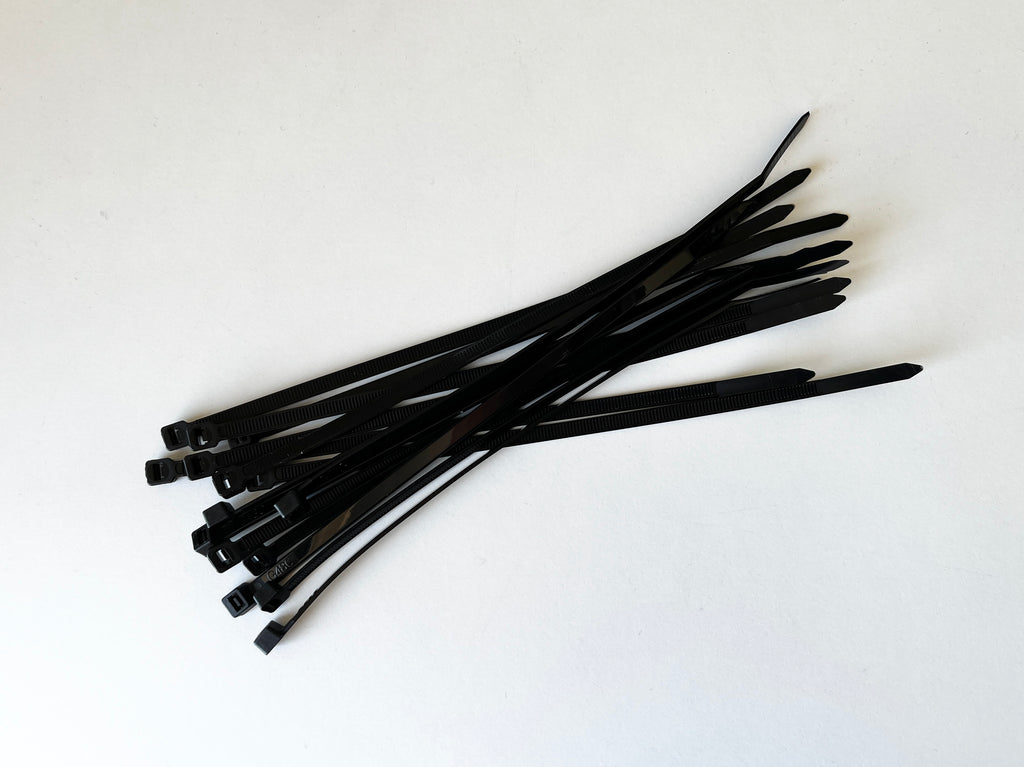

Cable Ties, 100mm x 2.5mm: 15 pcs

Cable Ties, 200mm x 4.8mm: 15 pcs

Bootlace Ferrule, 6 mm x 1.2mm: 10 pcs

Bootlace Ferrule, 7 mm x 2mm: 10 pcs

Bootlace Ferrule, 7 mm x 2.6mm: 10 pcs
