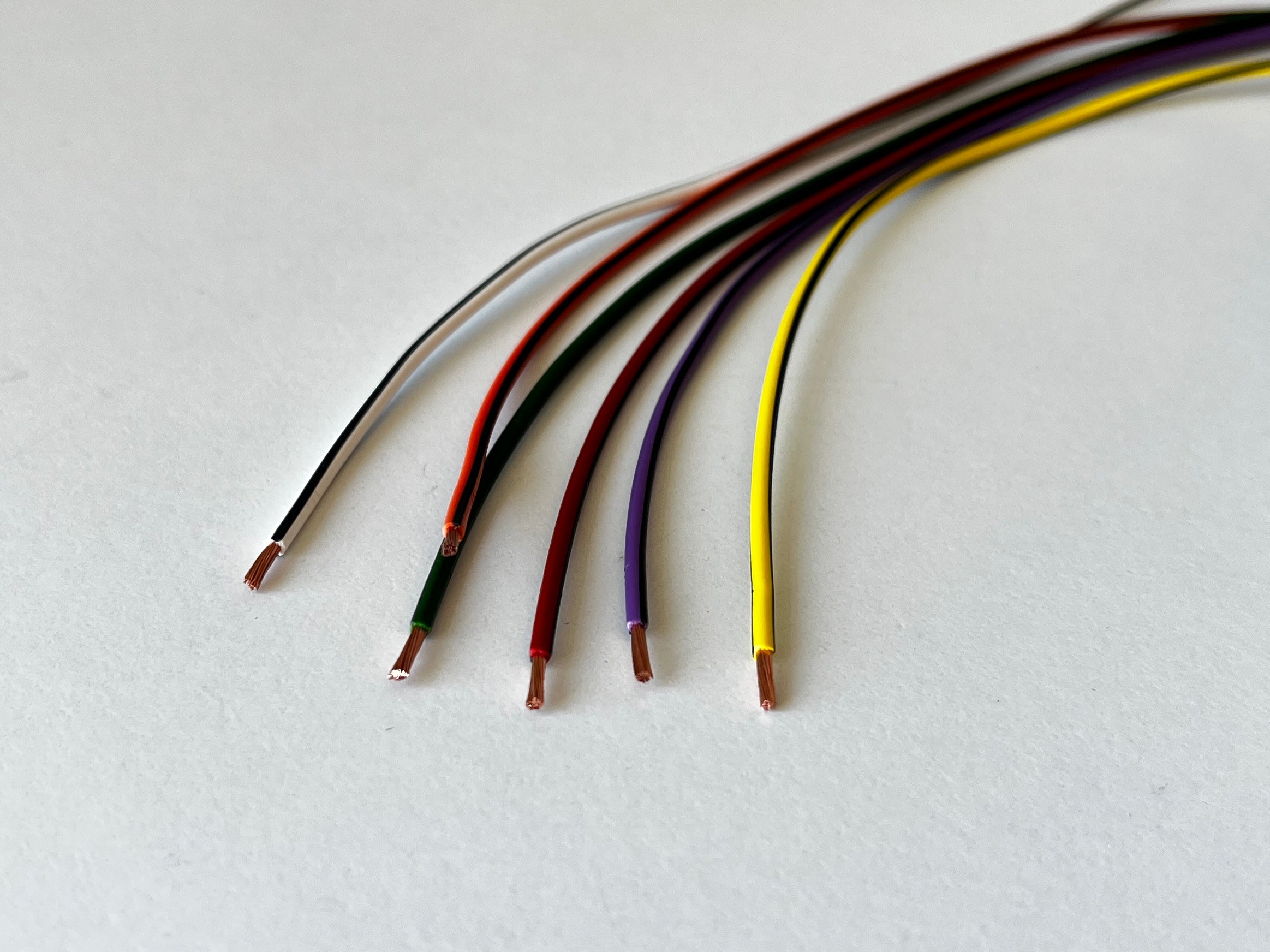

Thinwall Cable Set, 1mm², 16.5A
$16.00 AUD

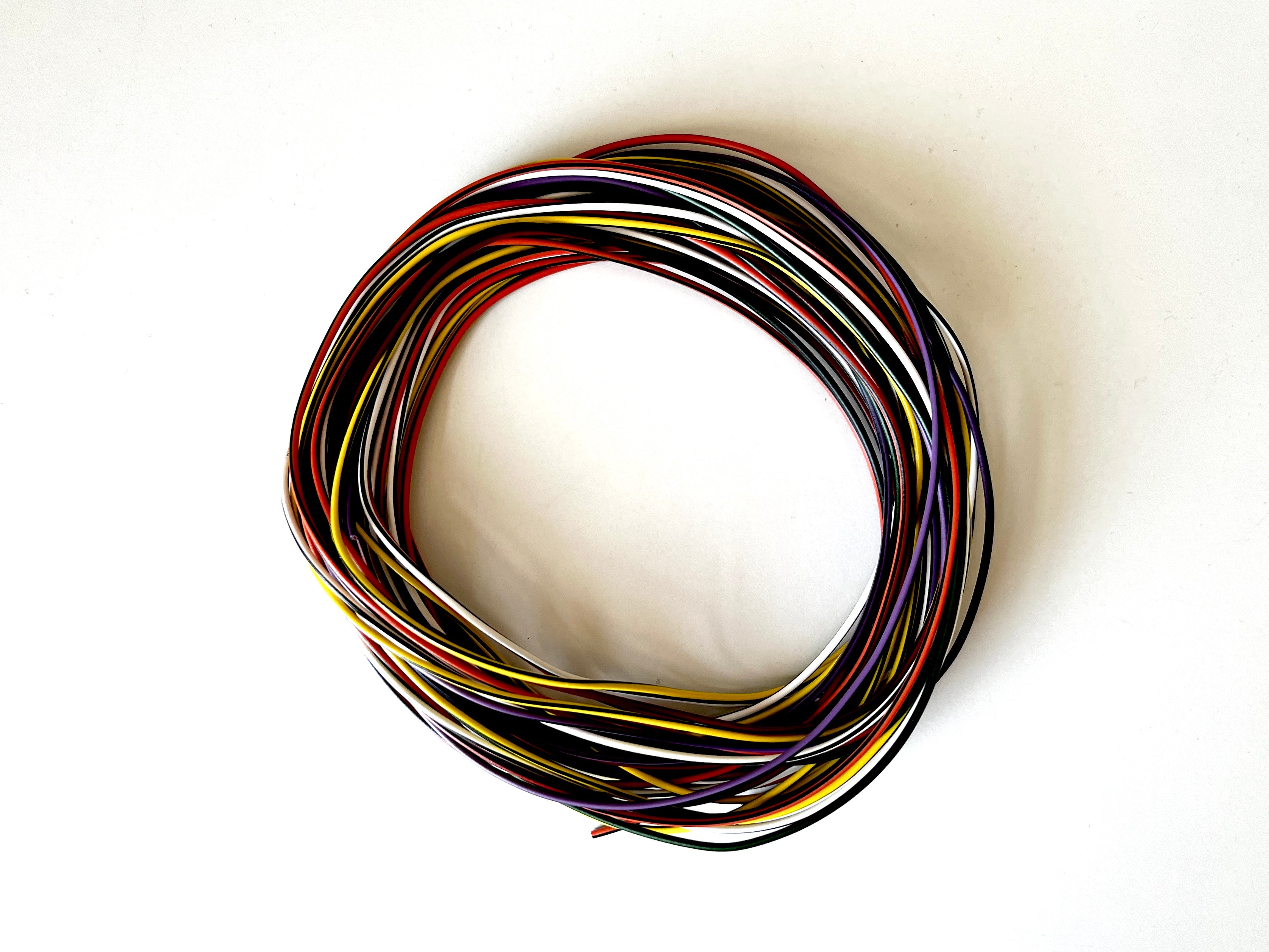

Set of all 6 colours of our 16 amp thinwall cables, sold by the metre. Just select how many metres of each colour you need and we will send you that length of each of the following colours: white/black, red/black, yellow/black, green/black, orange/black, and purple/black.
Single core cable insulated in thin-walled PVC, resulting in a much slimmer and lighter wiring harness without compromising on safety and durability. This makes it easier to conceal wiring on custom builds, particularly those with limited space.
Thinwall cables are around 32% lighter and 22% narrower than standard cables!
For high temperature, low voltage automotive applications.
Suitable for use at temperatures from -40°C to 105°C with excursions up to 120°C.
Suitable for 12V & 24V systems (maximum 60V).
The PVC insulation offers good resistance to abrasion and cut-through, and good resistance to petrol, lubricating oils and diluted acids.
Cores manufactured to ISO 6722-1:2011 (Class B) 105°C.
Plain Copper Conductors to BS EN 60228:2005 - PVC Insulated.
Specifications
Voltage Rating: 12V to 24V
Current Rating: 16.5A
Maximum Overall Diameter: 1.95mm
Conductor Specification: 32/0.2mm
Conductor Cross Section: 1mm²
Maximum Loading: 198W @ 12V / 396W @ 24V
