Bar-End Indicator Connection Cable
AUD35.00 - Sold Out
Simplifies bar-end indicator installation by doing the joining inside the handlebar.

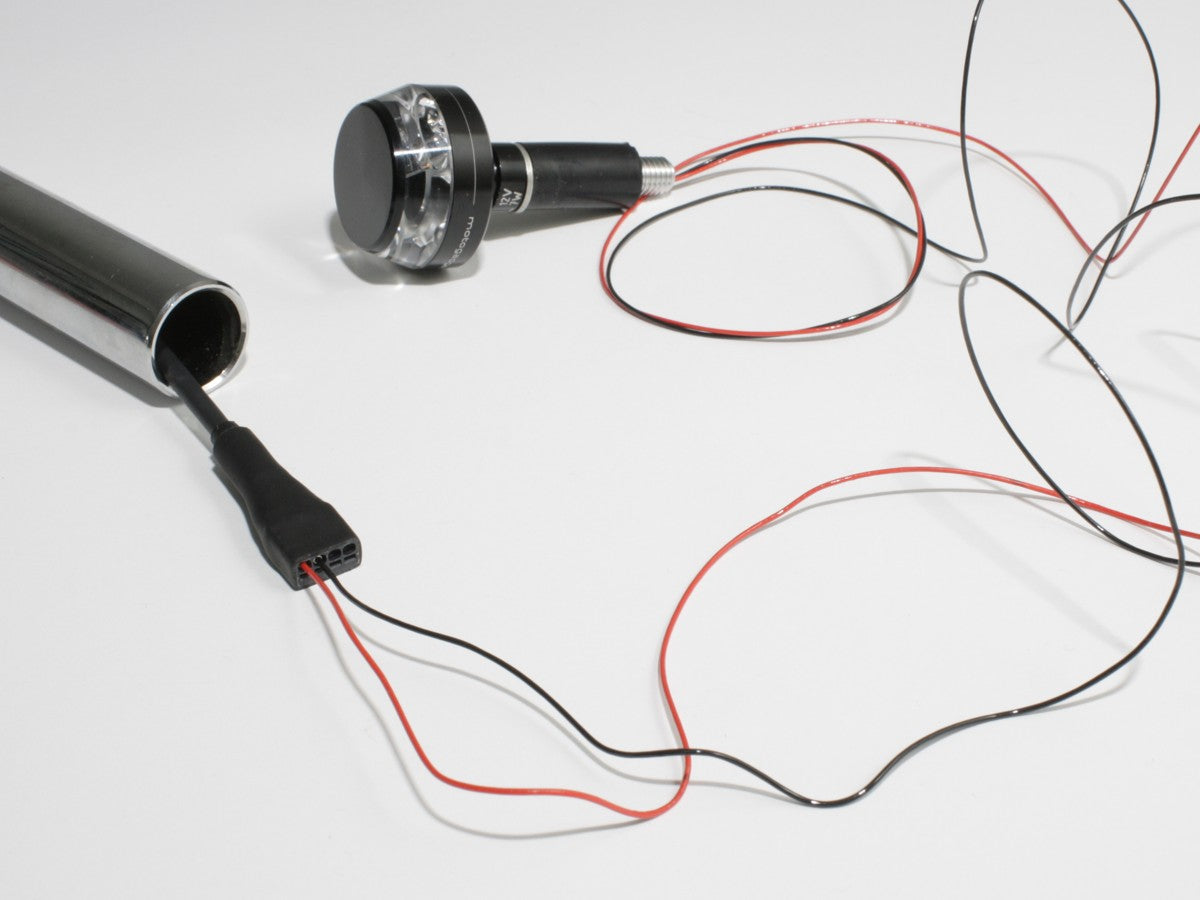

Bar-end indicators each come with their own pair of wires, which normally means sleeving both pairs together and finding a tidy way to get them out of the bars. With the Bar-End Indicator Connection Cable, the connections are made inside the handlebar instead: push each indicator’s leads into the 4-port housing, slide it into the bar, and bring a single cable out through a small hole near the bar clamps.
The two centre ports are commoned to a shared ground, and the outer ports carry left and right indicator power. From the exit hole, the 1.5 m 3-core lead runs back to your mo.unit or indicator circuit.
3-Year Warranty!
Manufactured by us here in Australia using the highest quality components. If the cable fails within 3 years of purchase, we will replace it for you free of charge.
Features

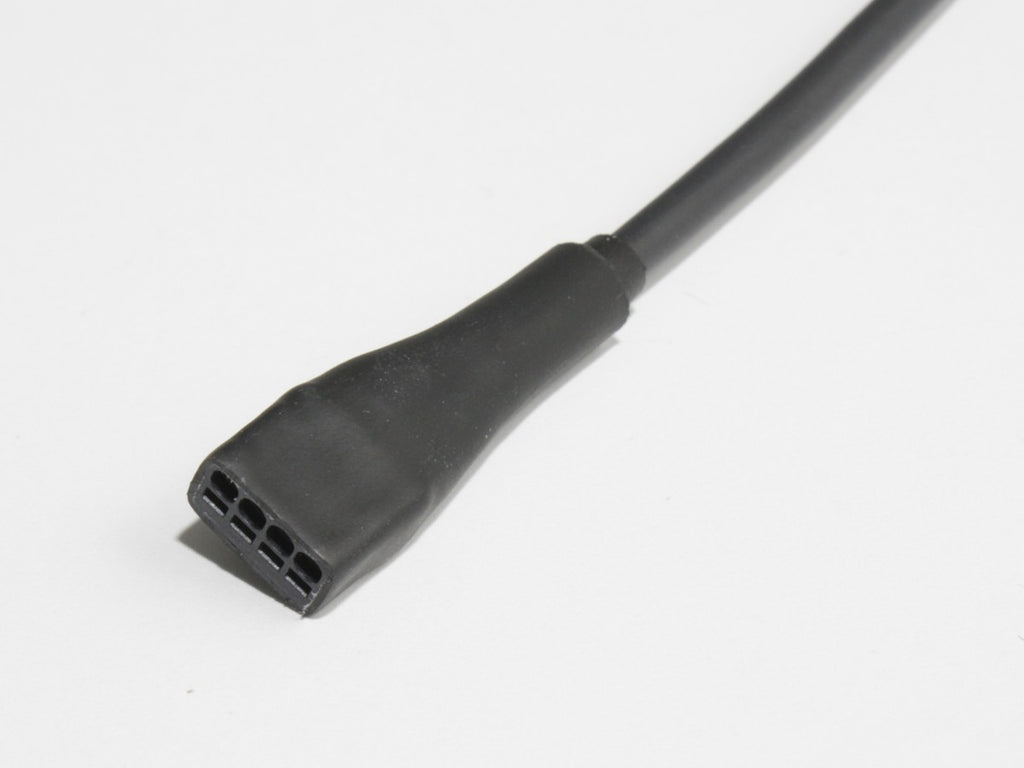

- 4-position push-in breakout, sized to sit neatly inside the handlebars
- Shared ground across the two centre positions, so both indicators return on one core
- Single 3-core lead (Left +, Right +, Ground) replaces two separate cable runs
- 24 AWG Tefzel (ETFE) conductors: thin, tough, and rated for high temperatures, well suited to the heat inside handlebars
- Sealed and strain-relieved at the housing for durability under vibration
Specifications
- Max total current: 3A (1.5A per indicator)
- Positions: 4 (outer: Left +, Right +; centre: Ground, commoned)
- Cable dia.: 3.6mm
- Cable: 3-core, 24 AWG Tefzel
- Length: 1.5 m
- Wire colours: left Indicator: yellow, right Indicator: white, earth: black
Compatibility
Suited to LED bar-end indicators, and other low-current indicators. Connects to the indicator outputs of a mo.unit or any conventional indicator circuit.
Package Contents

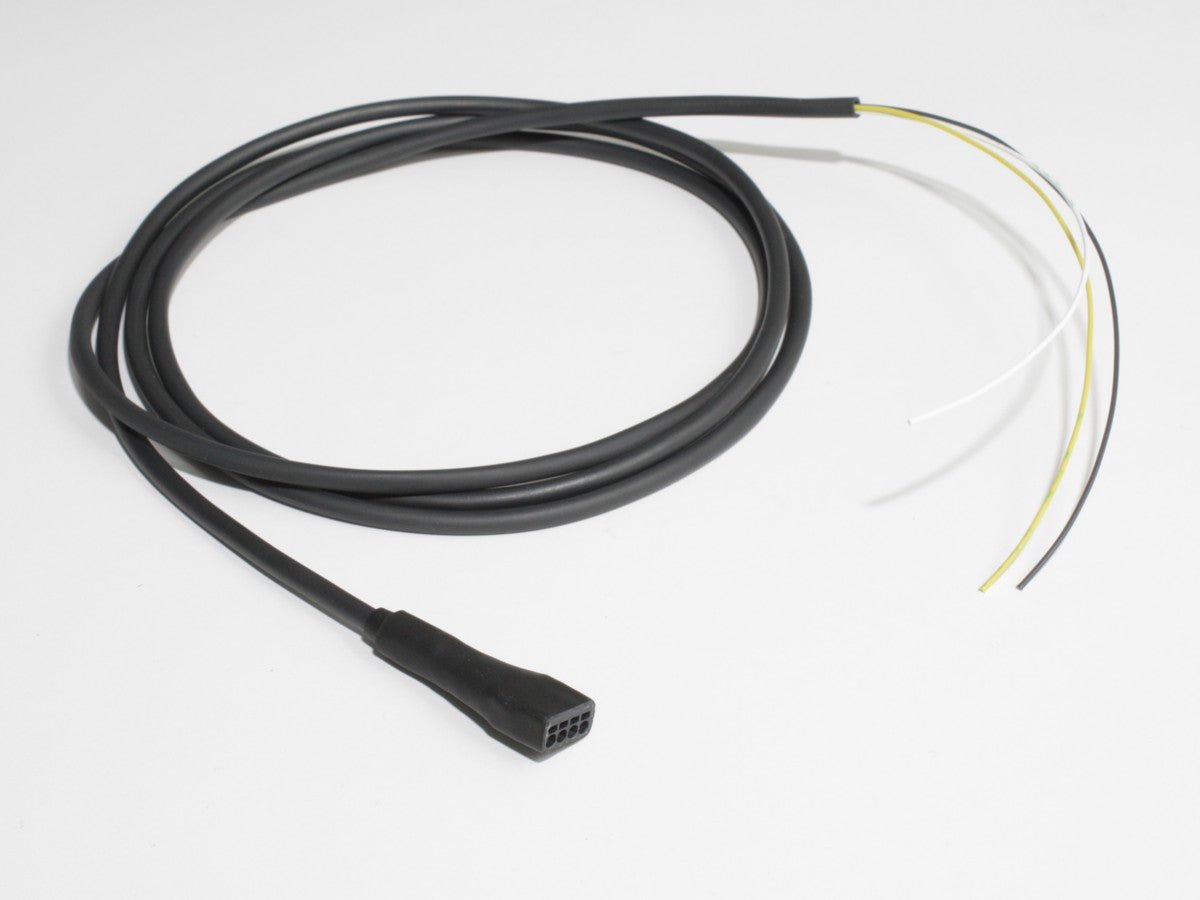

1 x Bar-End Indicator Connection Cable with 1.5 m lead
8 x bootlace ferrules, 1.3mm dia. x 6mm long
