Blade Fuse Holder Kit, 40A, 75cm Thinwall Cable (6mm²), Waterproof
$39.00 AUD
A marine-grade, 40 amp blade fuse holder kit engineered for maximum build flexibility. Compatible with the motogadget mo.unit. Perfect for custom electrical systems both with or without a mo.unit.
Most high-amperage inline fuse holders like the pre-wired JCASE options come with two distinct drawbacks. First, JCASE fuses are notoriously expensive and hard to find locally if you need a quick replacement on the road. Second, pre-wired cables force you into a fixed layout, severely limiting where you can cleanly position and mount the holder in your wiring harness. The cables are also relatively short, requiring some builders to have to resort to connecting the ends to additional cable.
Our 40A Blade Fuse Holder Kit solves both problems. By utilising standard, readily available blade fuses and providing 75cm of un-terminated cable, this kit gives you the flexibility needed to cut your leads to size and mount your IP67 weatherproof fuse holder precisely where it fits best.
Built for Real-World Installation. We know that wiring projects rarely go 100% to plan on the first try. That’s why our kit includes four crimp terminals, giving you two spares in case of a bad crimp, or harness modifications down the track. We’ve also doubled up on the battery terminals, supplying two M5 and two M6 options to ensure you have the right terminals for your specific project's requirements straight out of the box.

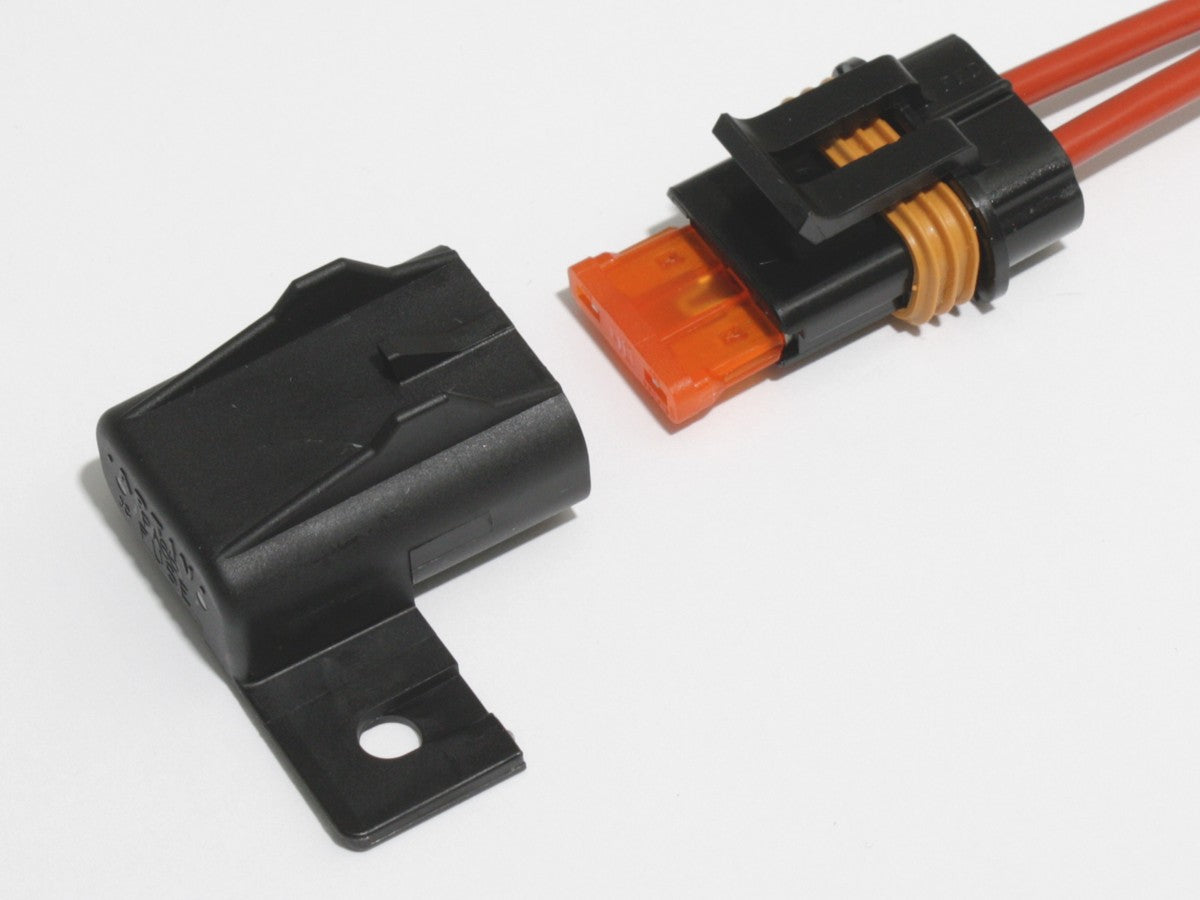

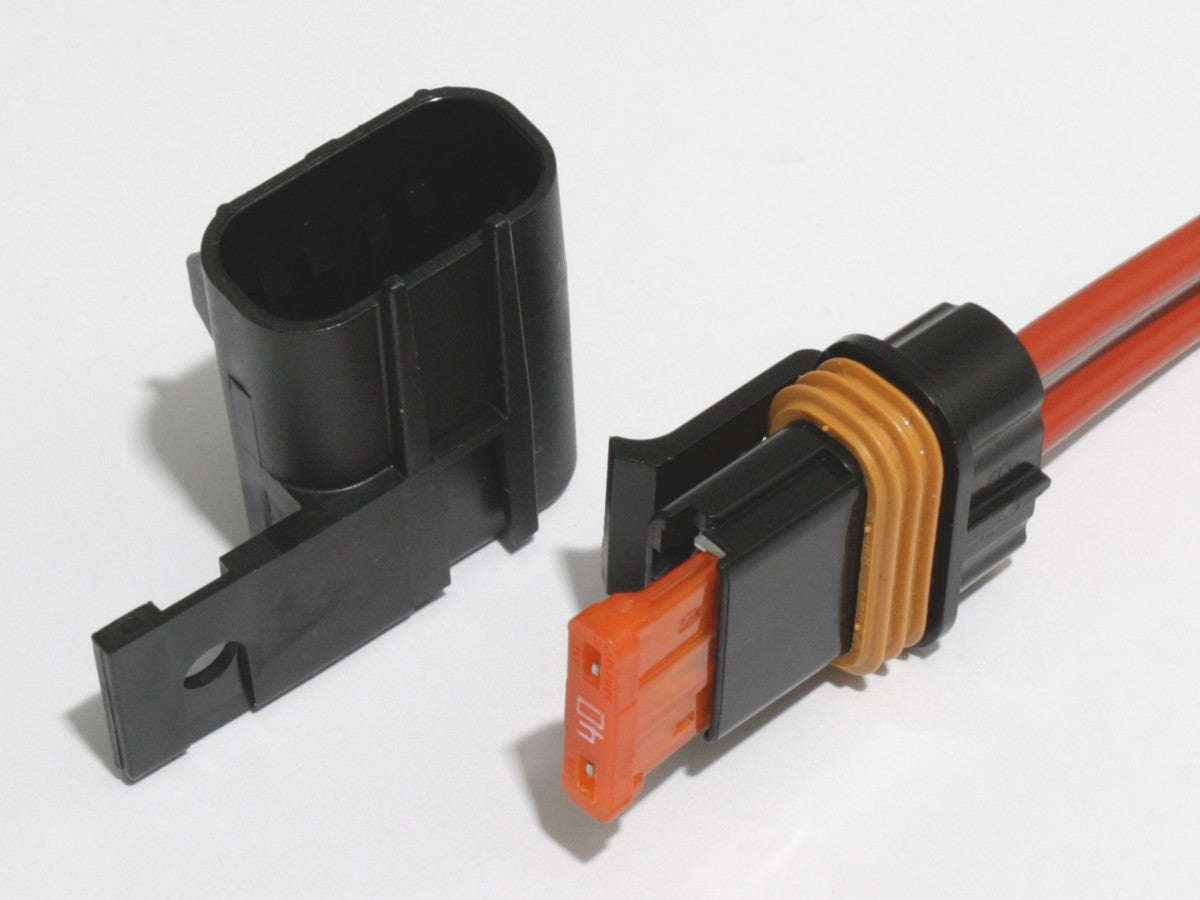

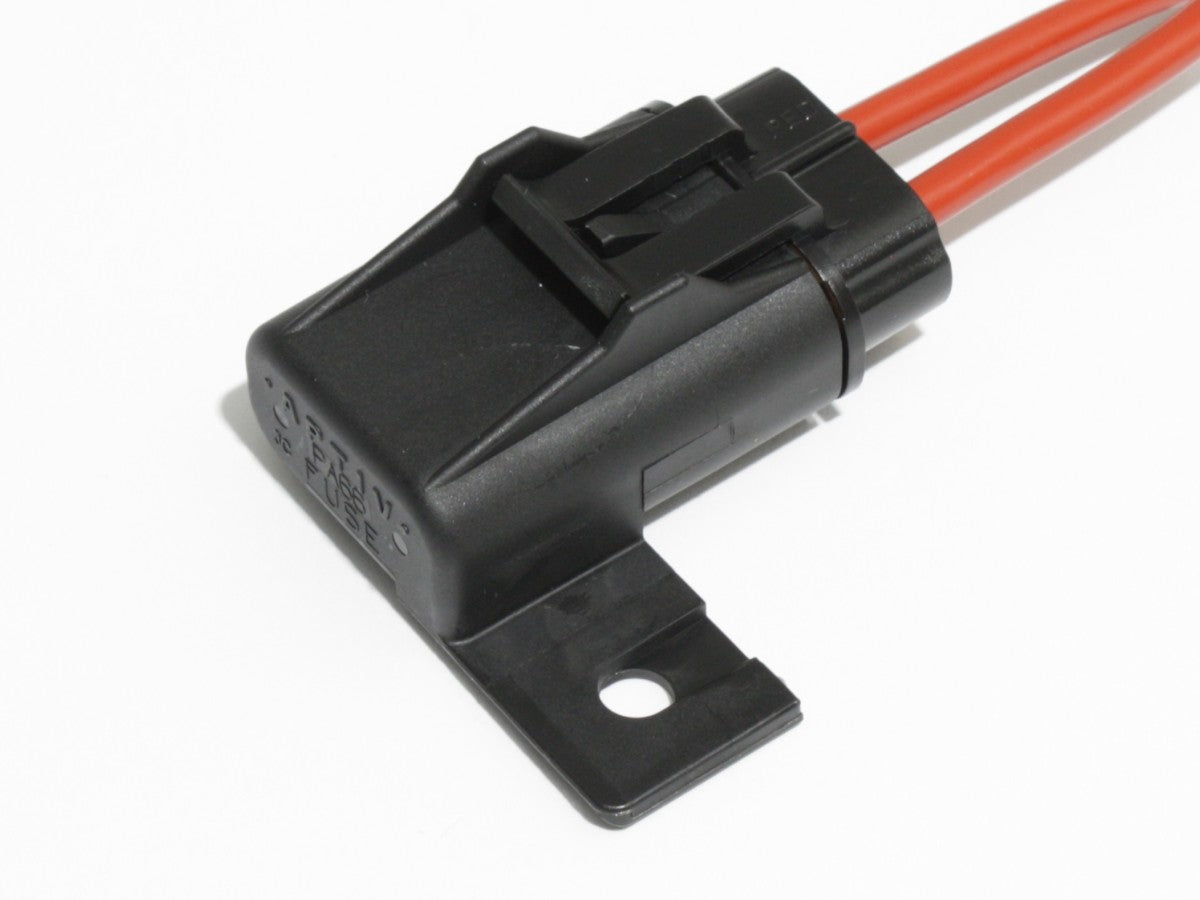

For clean, secure placement within tight custom layouts, the weatherproof cover features an integrated mounting tab with an M5 hole. This allows you to bolt the unit firmly to a frame rail, electronics tray, or battery box—eliminating loose, dangling wires and protecting your connections from heavy engine vibrations.
Key Features
- Better Fuse Availability: Uses standard blade fuses that you can pick up at any local auto parts store for a fraction of the cost of a JCASE fuse.
- Custom Positioning: Supplied un-terminated with more than enough cable length for every situation, so you aren't fighting pre-wired factory lengths. Route your cable, cut to length, and mount the holder exactly where your build demands.
- IP67 Environmental Rating: The marine-grade, sealed housing features advanced silicone seals to ensure a dust-tight barrier and reliable protection against moisture ingress, even during temporary water immersion.
- Premium Thinwall Cable: Features 6mm² thinwall insulation, offering superior flexibility, a reduced overall diameter (4.1mm), and excellent resistance to abrasion, heat, and chemicals.

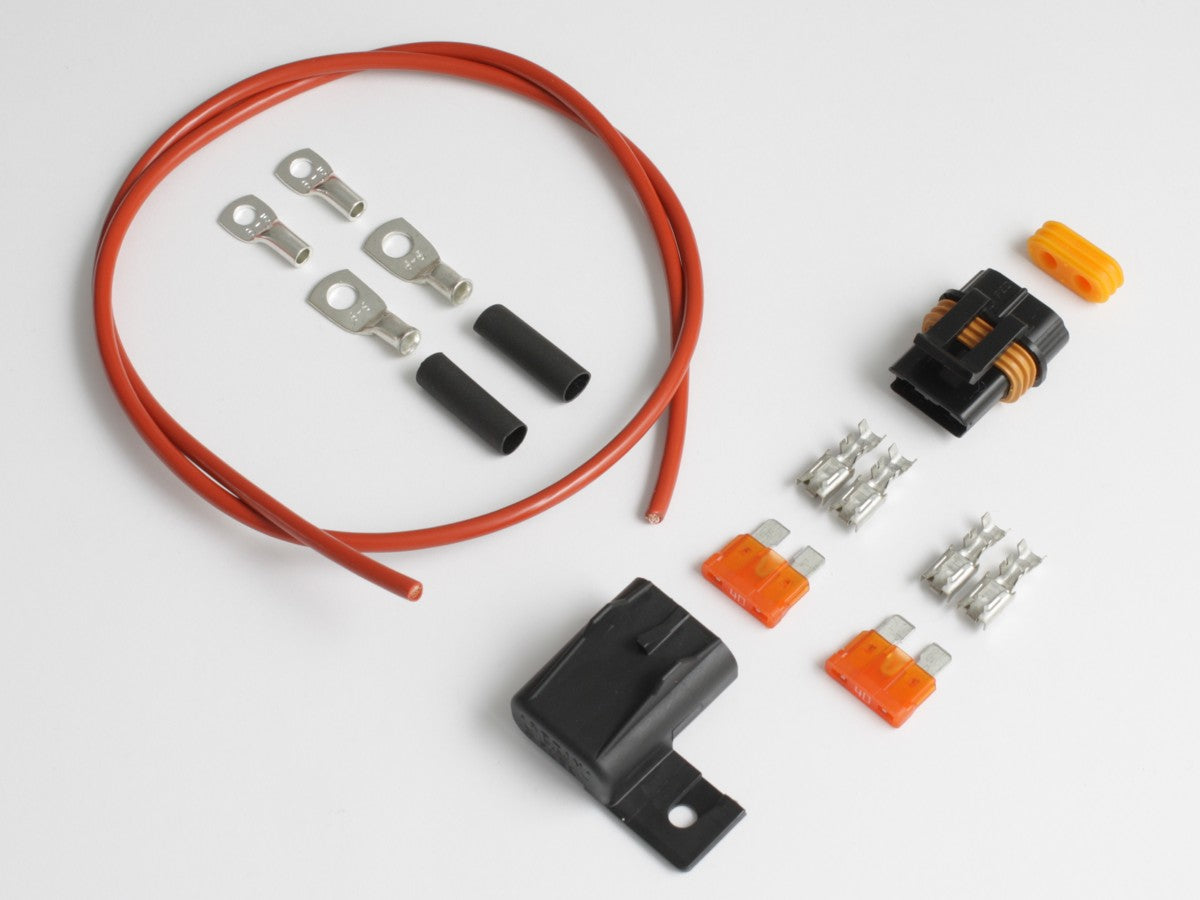

Kit Contents
1 x inline fuse holder with cap
75cm x red, thinwall automotive cable
2 x 40A blade fuses
4 x 6.3mm crimp terminals
2 x M5 battery terminals
2 x M6 battery terminals
Pre-cut heatshrink tubing (to fully seal and insulate the battery terminals)
Specifications
Max. Current (fuse holder): 40A
Max. Current (cable): 50A
Fuse Type: Standard Blade Fuse (ATO / ATC)
Cable Cross-Section: 6mm²
Cable Outer Diameter: 4.1mm
Housing Dimensions (mated - mounting tab excluded): 47 x 27 x 23mm
Compliance & Certification Standards
Every component in this kit has been engineered and certified to meet high-level automotive specifications, ensuring long-term reliability in harsh environments.
Housing & Connection System: Engineered to pass SAE J2030 (Heavy-Duty Electrical Connector Standard) and adheres to the international standard ISO 2.8mm blade configuration.
CrushinAG
Automotive Cable Certification: Manufactured in strict accordance with ISO 6722-1 Class B standards for low-voltage road vehicle wiring.
Environmental Protections: Housing system certified to IP67 (IEC 60529) for ingress protection. All components comply with RoHS environmental directives.
