Compact Connectors, Waterproof
$16.00 AUD

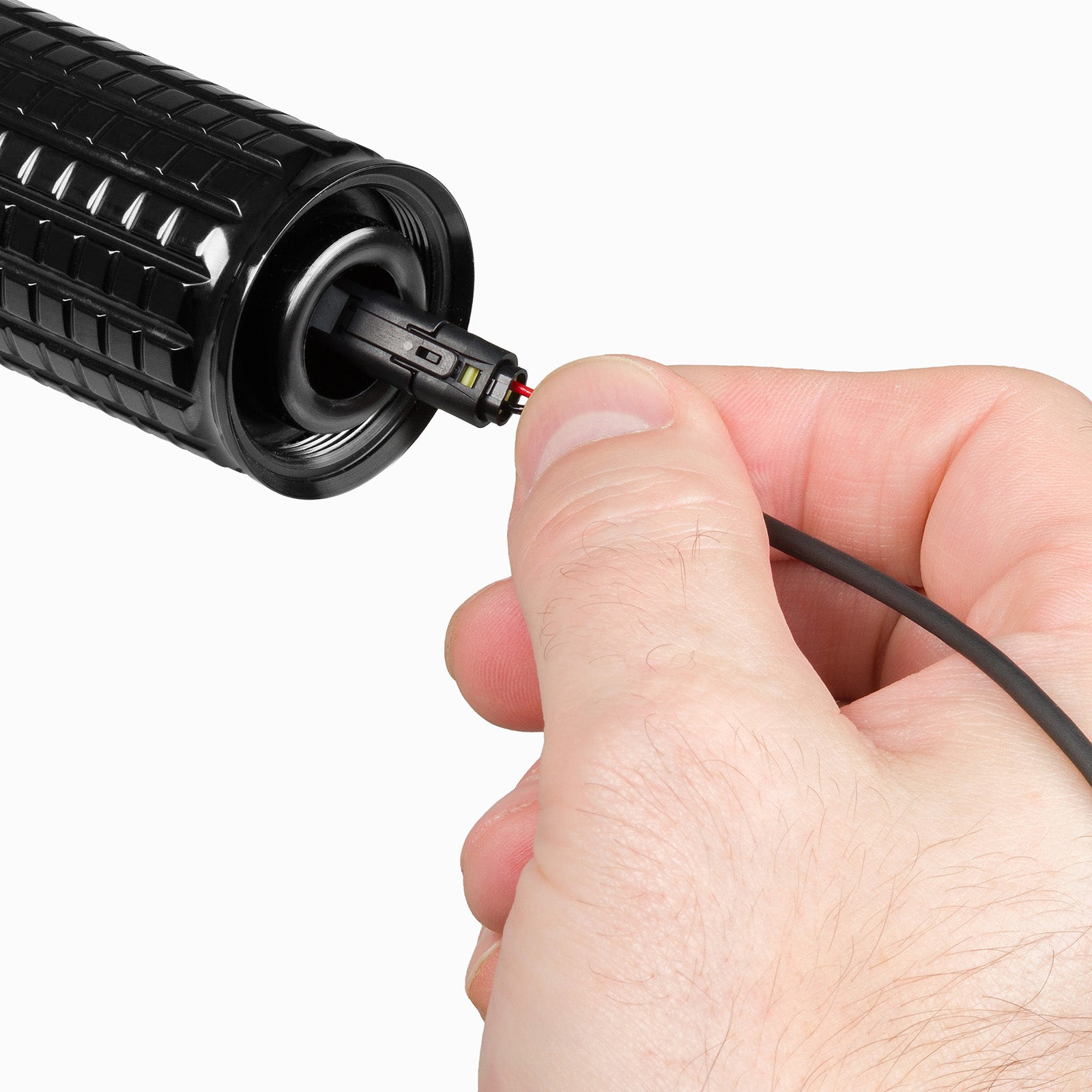

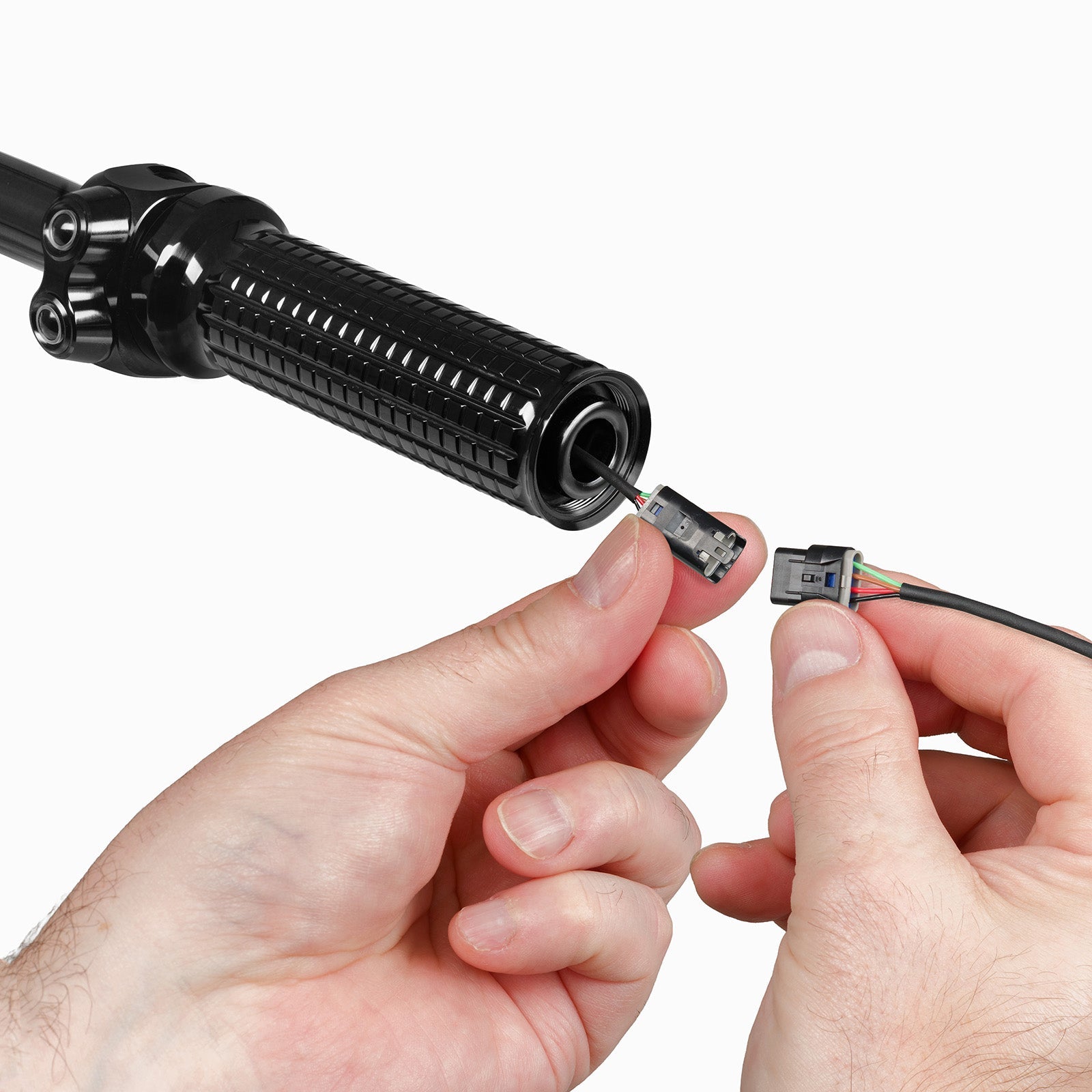

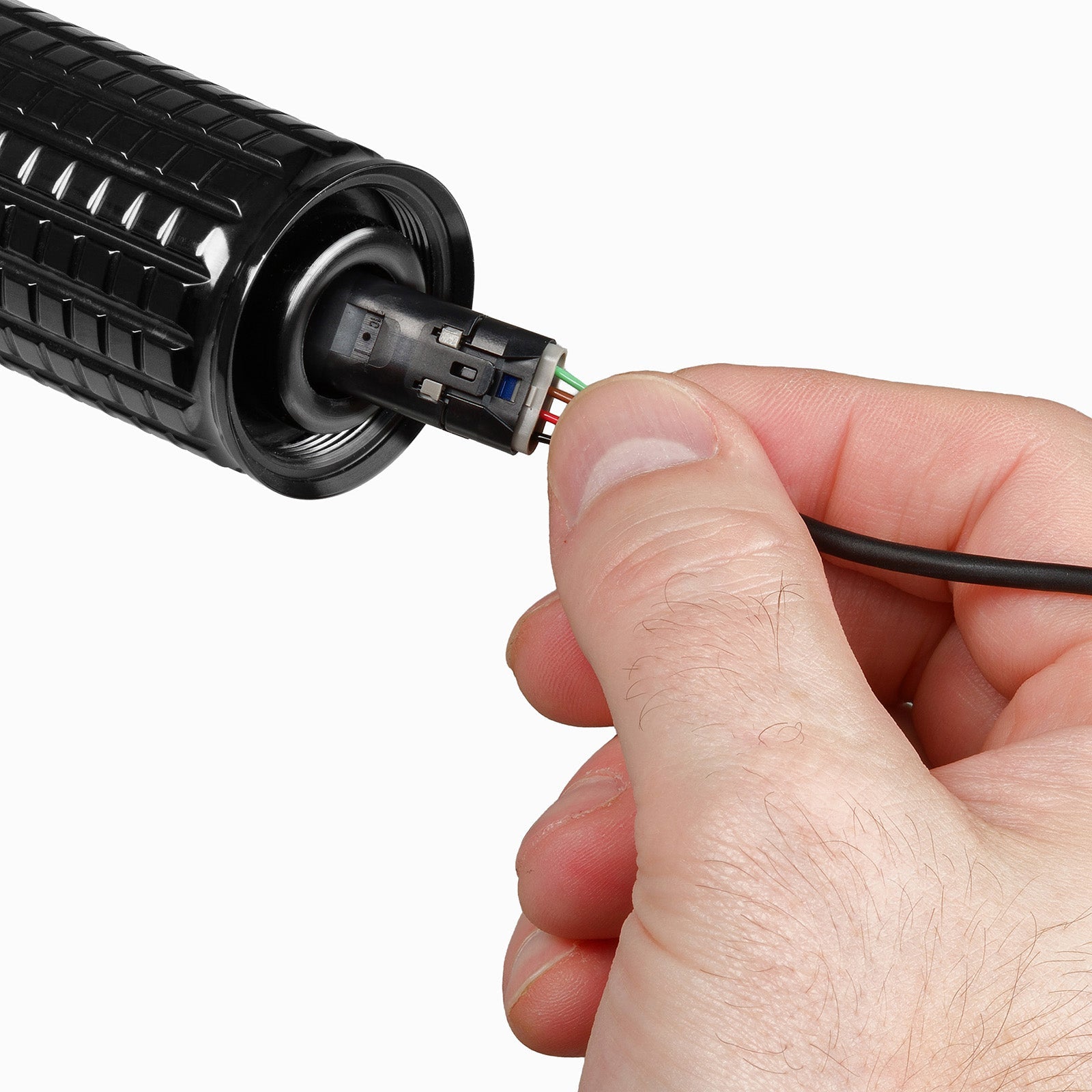

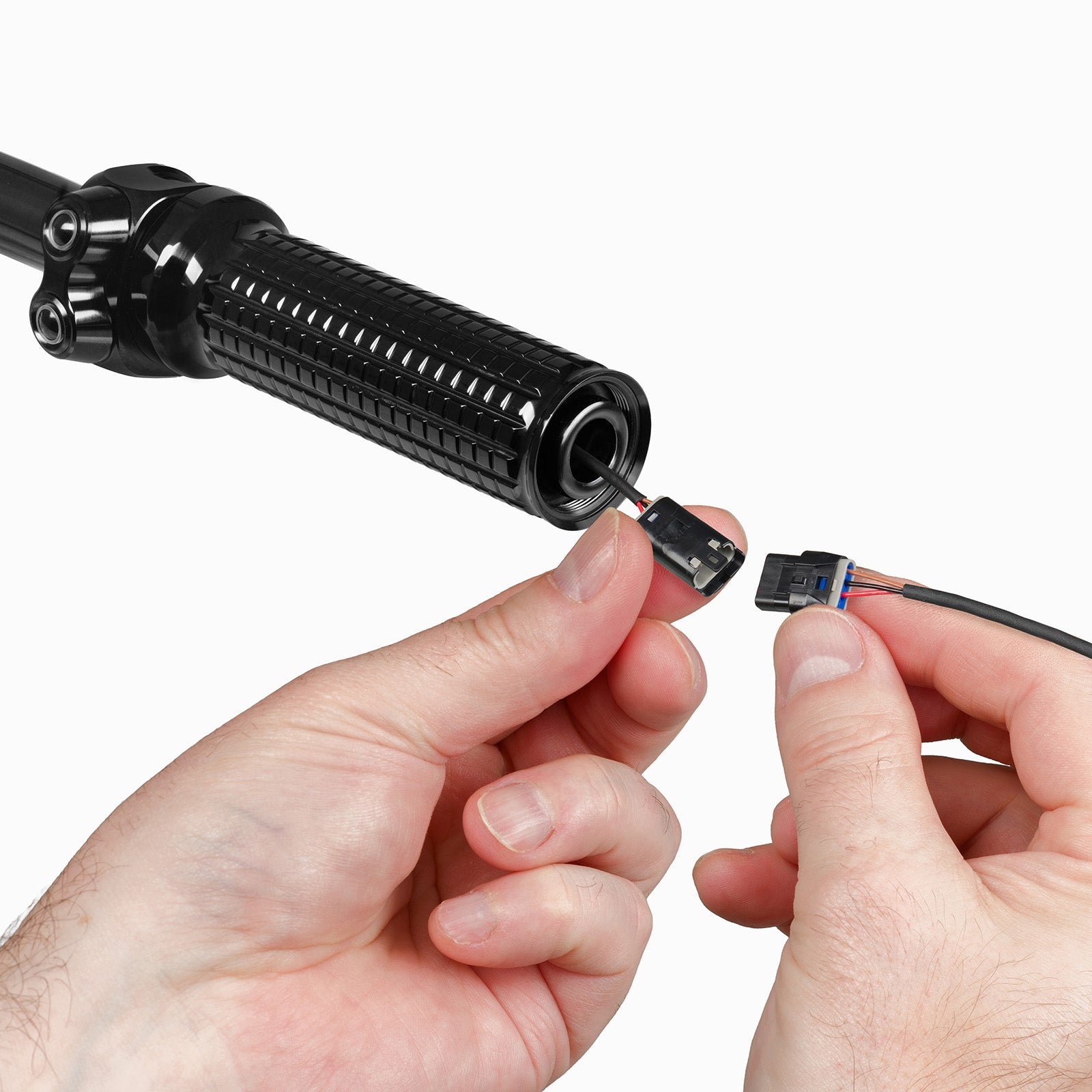

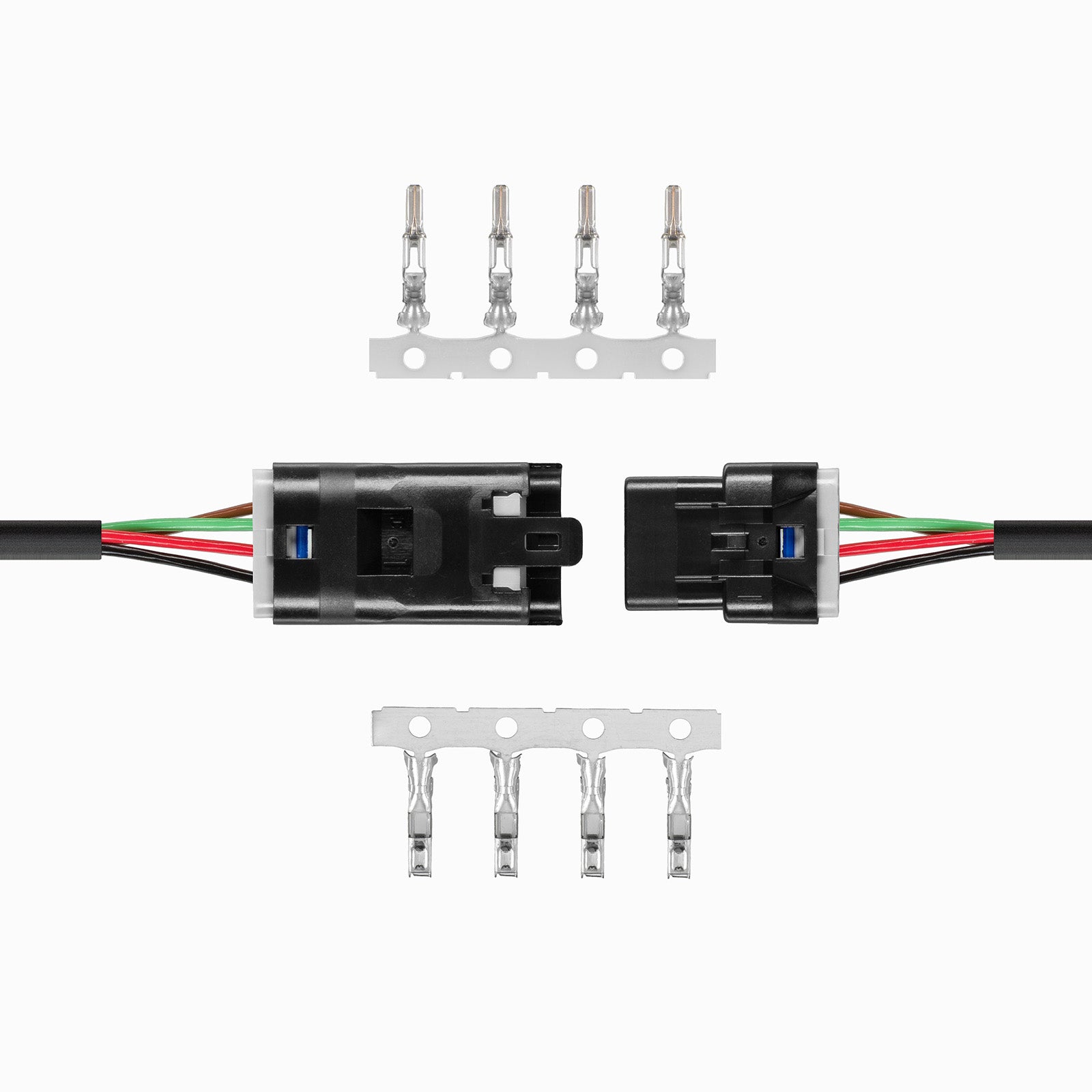

Ultra-compact automotive connectors for space-constrained applications. The world's first miniature sealed system on the market to achieve IP67 certification, providing superior levels of dustproof and waterproof protection along with massive space savings.

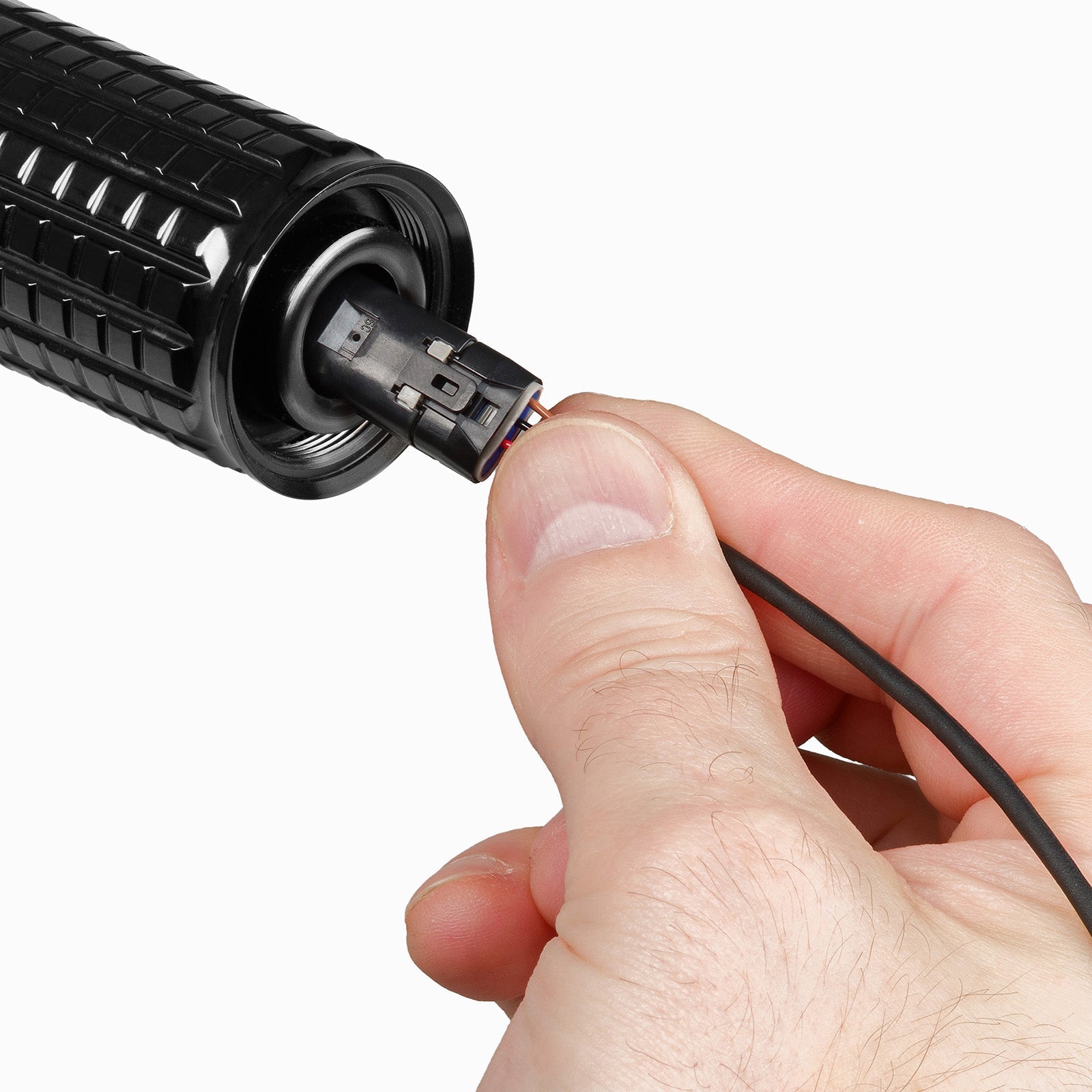

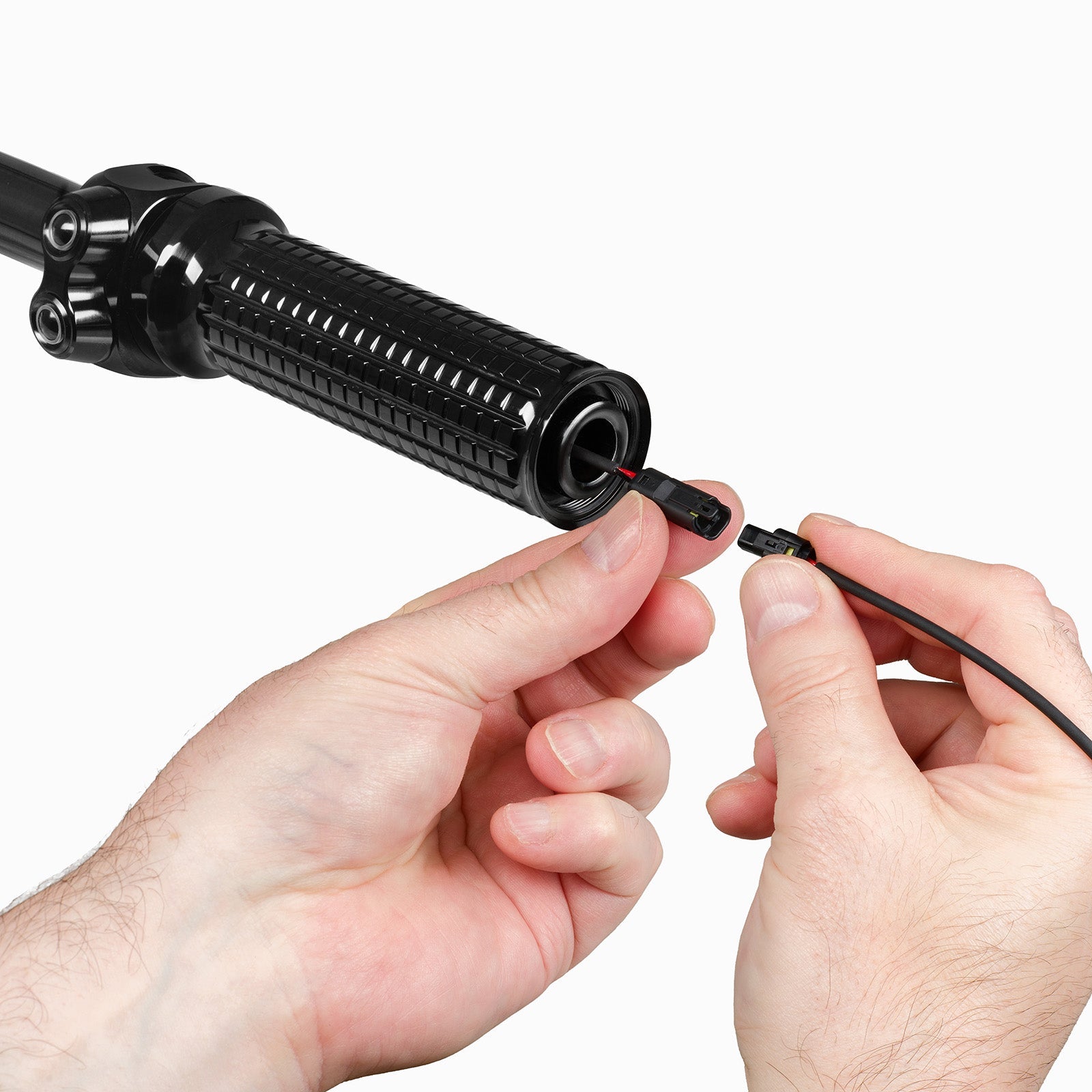

Ideal for high-quality, minimalist wiring of lights, instruments, or other components.

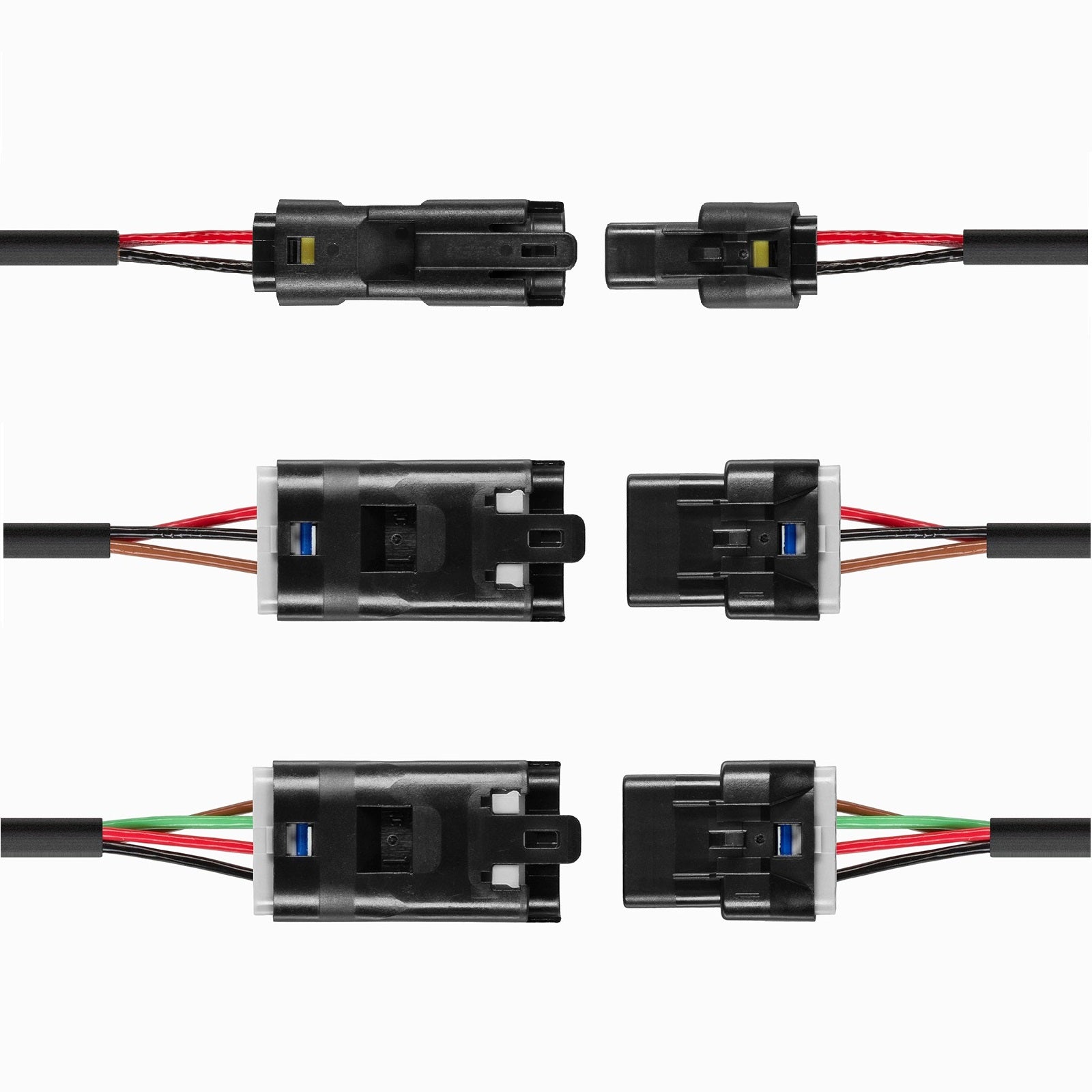

Available in 2, 3 and 4-pin configurations.
We supply each configuration with double the required number of male and female terminals, in case you make a mistake or need to make some changes down the track.
Note: these are not compatible with the motogadget mo.unit wiring kit as the cable diameter is too large. You must use our MMCC thinwall cable kit, or source your own cables. They are compatible with motogadget LED lights and instruments.
Compatible Cable Specifications:
Conductor Size: 0.3mm² to 0.5mm² (20 AWG to 22 AWG)
Minimum Insulation OD: 1.4mm
Maximum Insulation OD: 1.90mm

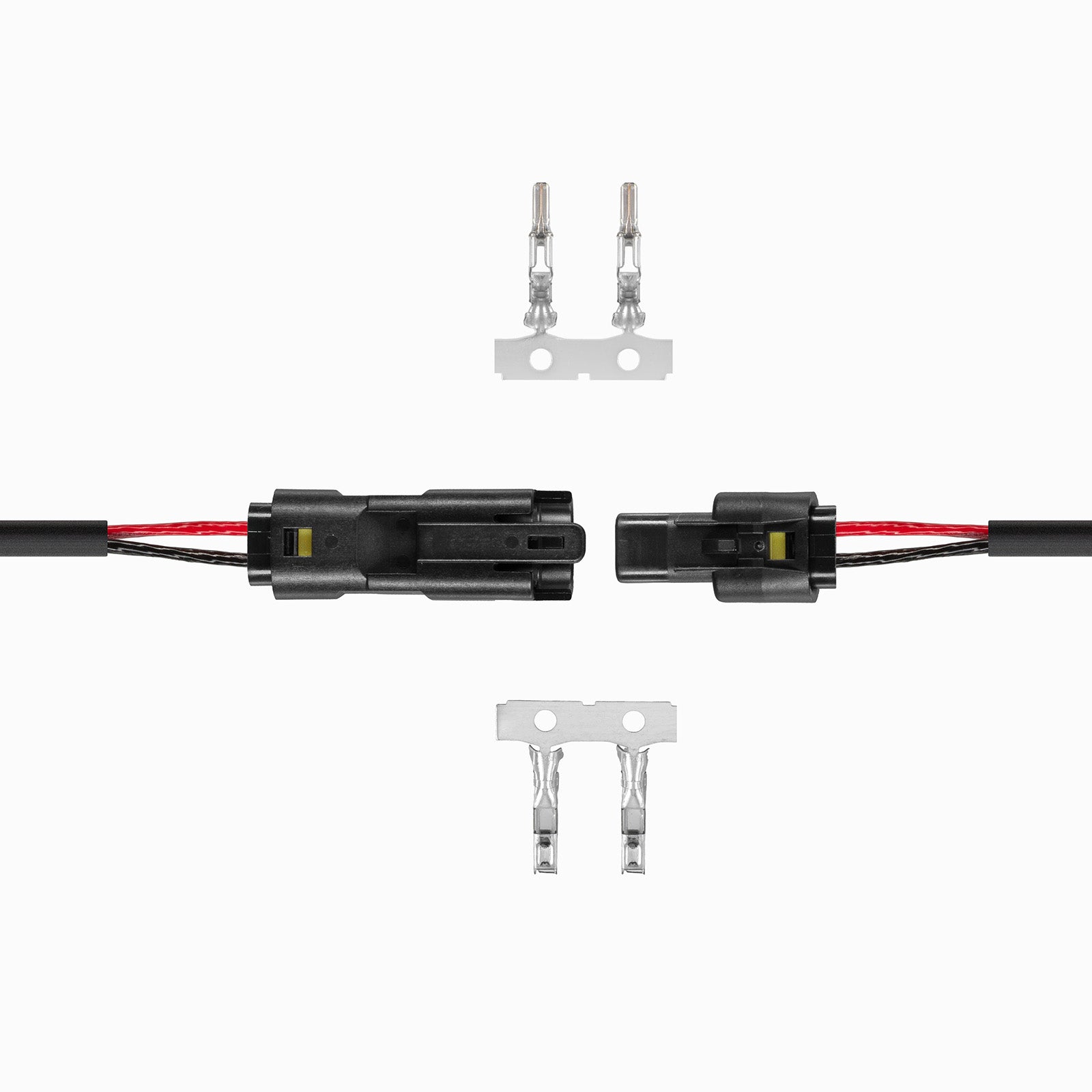

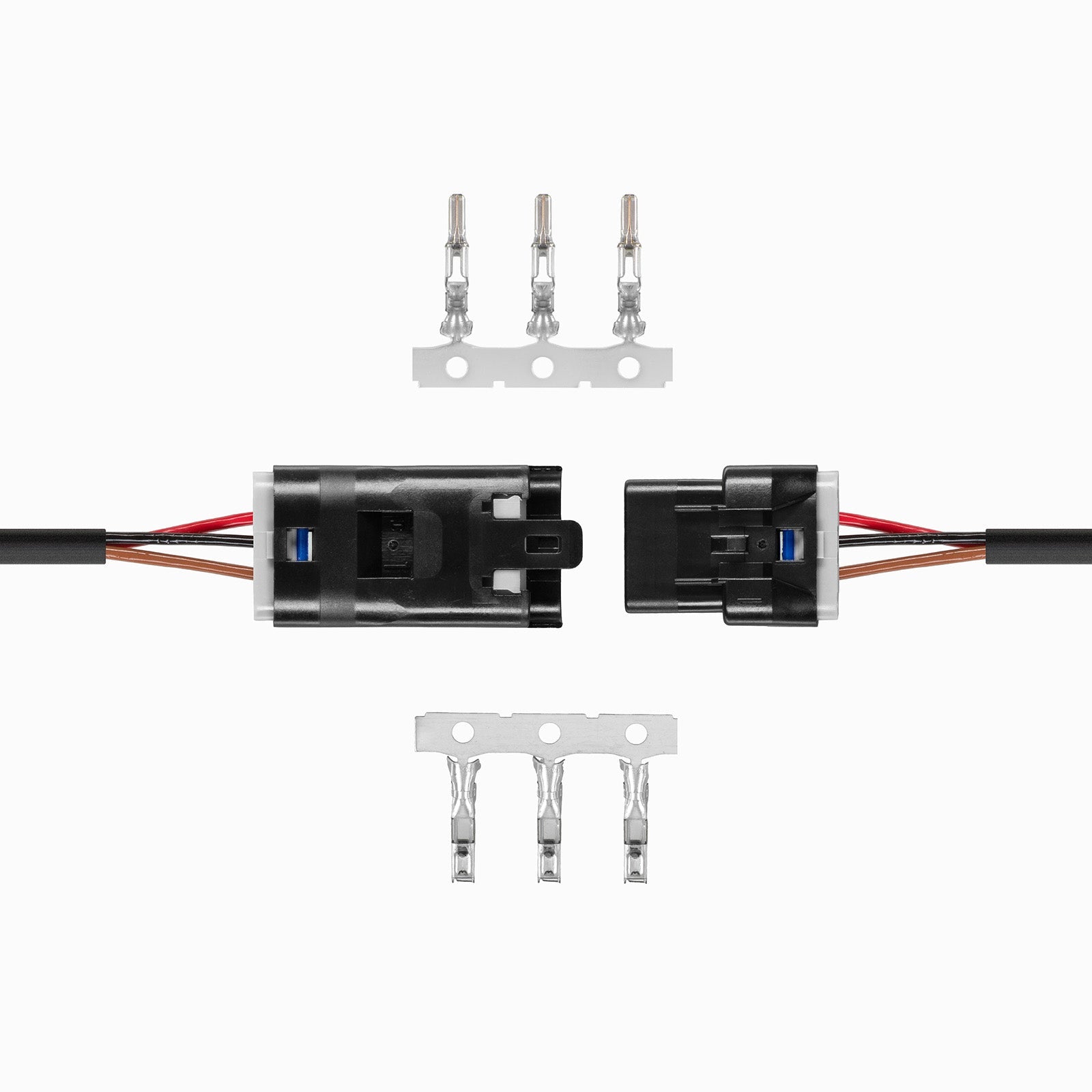

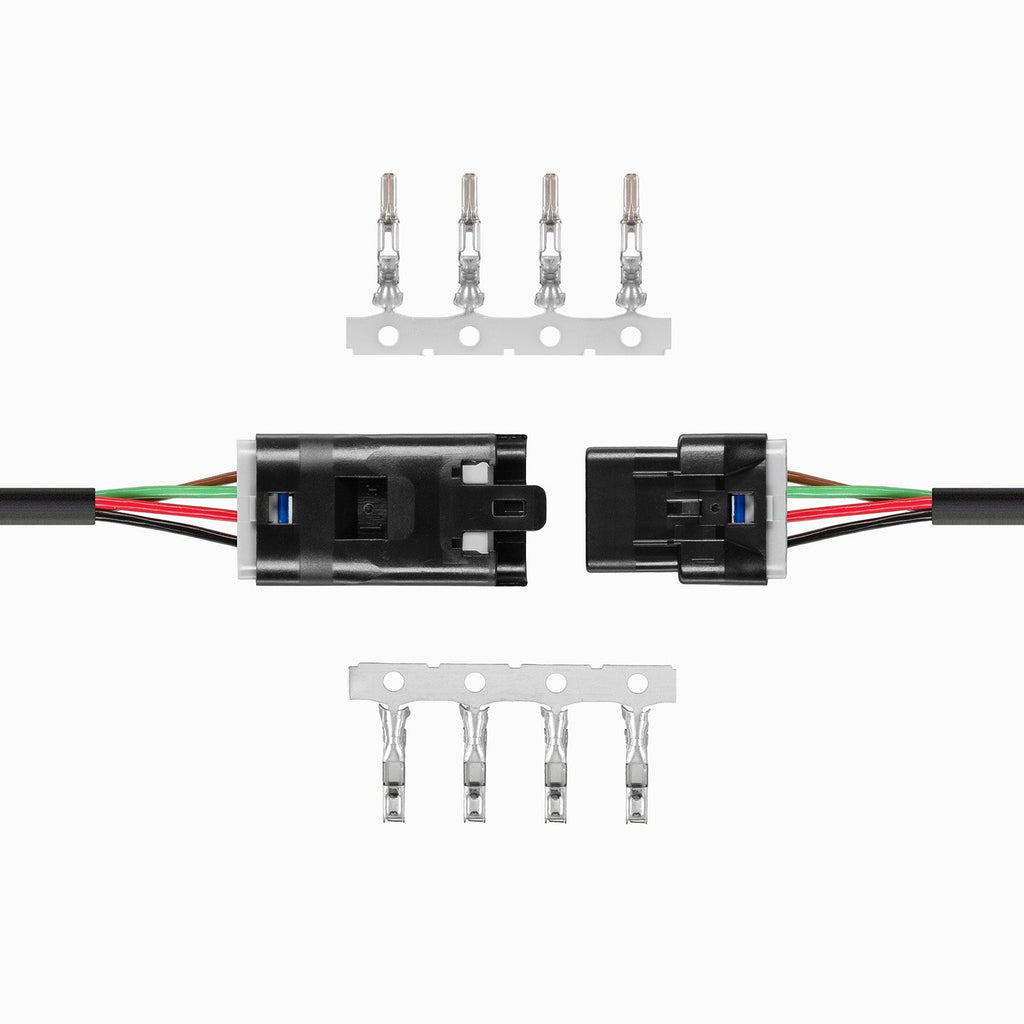

Price is per assembly (1 x male and 1 female housing, double the no. required male and female terminals)
Maximum Current
Up to 4 Amps max per contact when using 0.5mm² (20 AWG) wire.
Up to 3 Amps max per contact when using 0.3mm² (22 AWG) wire.
Waterproof Rating: IP67 (waterproof up to 1m submersion when fully assembled using compliant wire sizes)
Operating Temperature: -40°C to +105°C.
Overall Dimensions (when mated)
2-pin: 30 x 8.2 x 7.2mm
3, and 4-pin: 26.5 x 12.2 x 7.2mm
