MMCC Thinwall Battery Cable Kit, 74 Amps
AUD25.00
This kit has been put together by us here at MMCC using the same components we use in all our builds. Also compatible with the motogadget mo.unit.
Suitable for use at temperatures from -15°C to 90°C.
Suitable for 12V & 24V systems (maximum 60V).
The V90 PVC insulation offers good resistance to abrasion and cut-through, and good resistance to petrol, lubricating oils and diluted acids.
Cores manufactured to AS/NZS 1125.
Insulation manufactured to AS/NZS 3808.
Specifications
Voltage Rating: 60V
Current Rating at 30°C: 74A
Maximum Overall Diameter: 5.3mm
Conductor Specification: 96/0.32mm
Conductor Cross Section: 8mm²
Cable Length: 75cm

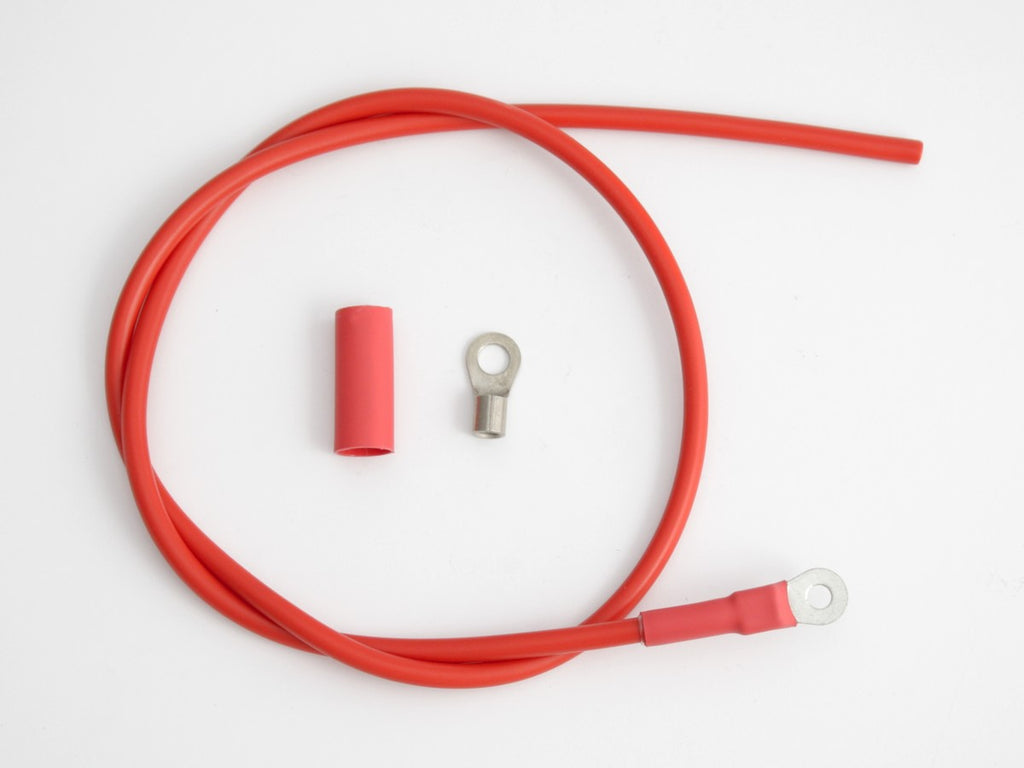

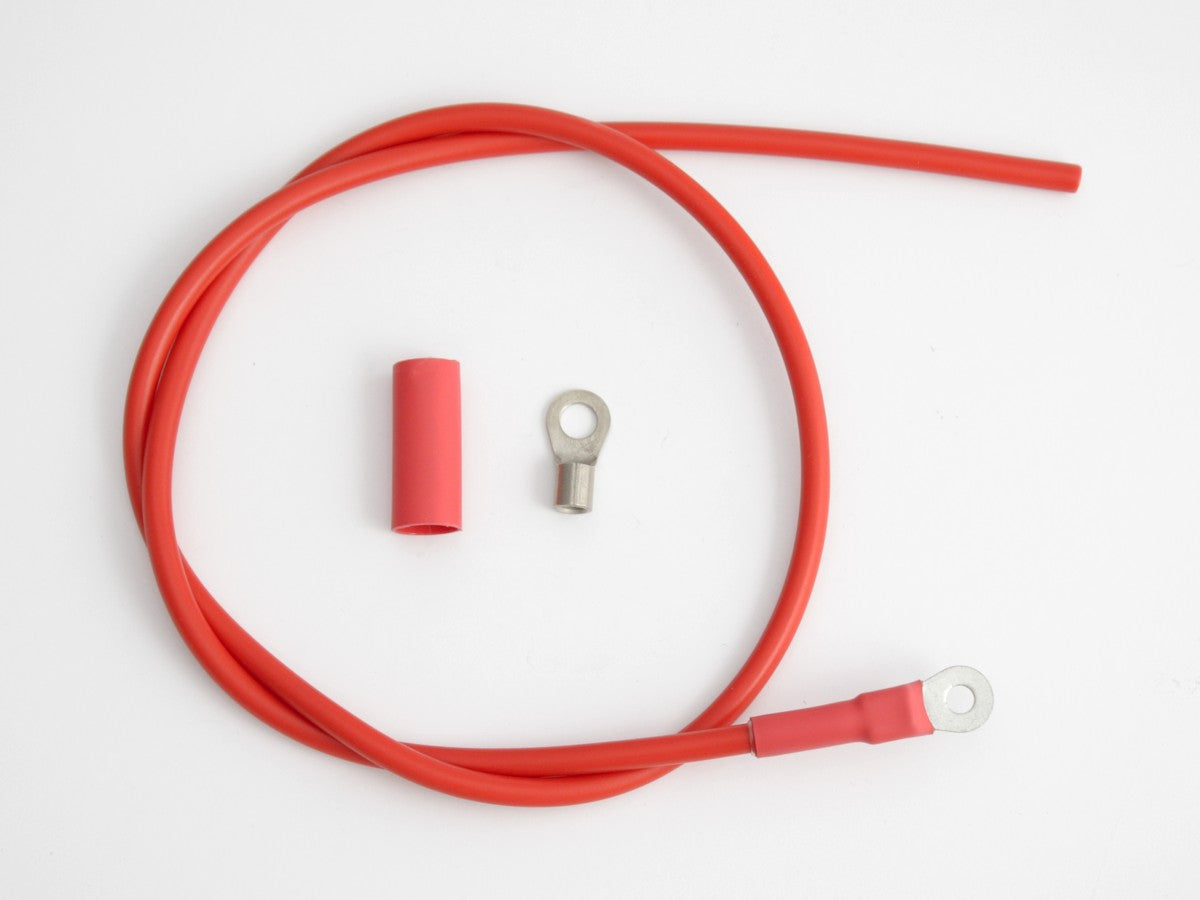

Kit Contents
- 1 x 75cm cable, 8mm² cross-section terminated with an M5 ring terminal
- 1 x M6 battery terminal
- 1 x 3:1 ratio heat-shrink (dual wall adhesive lined)
