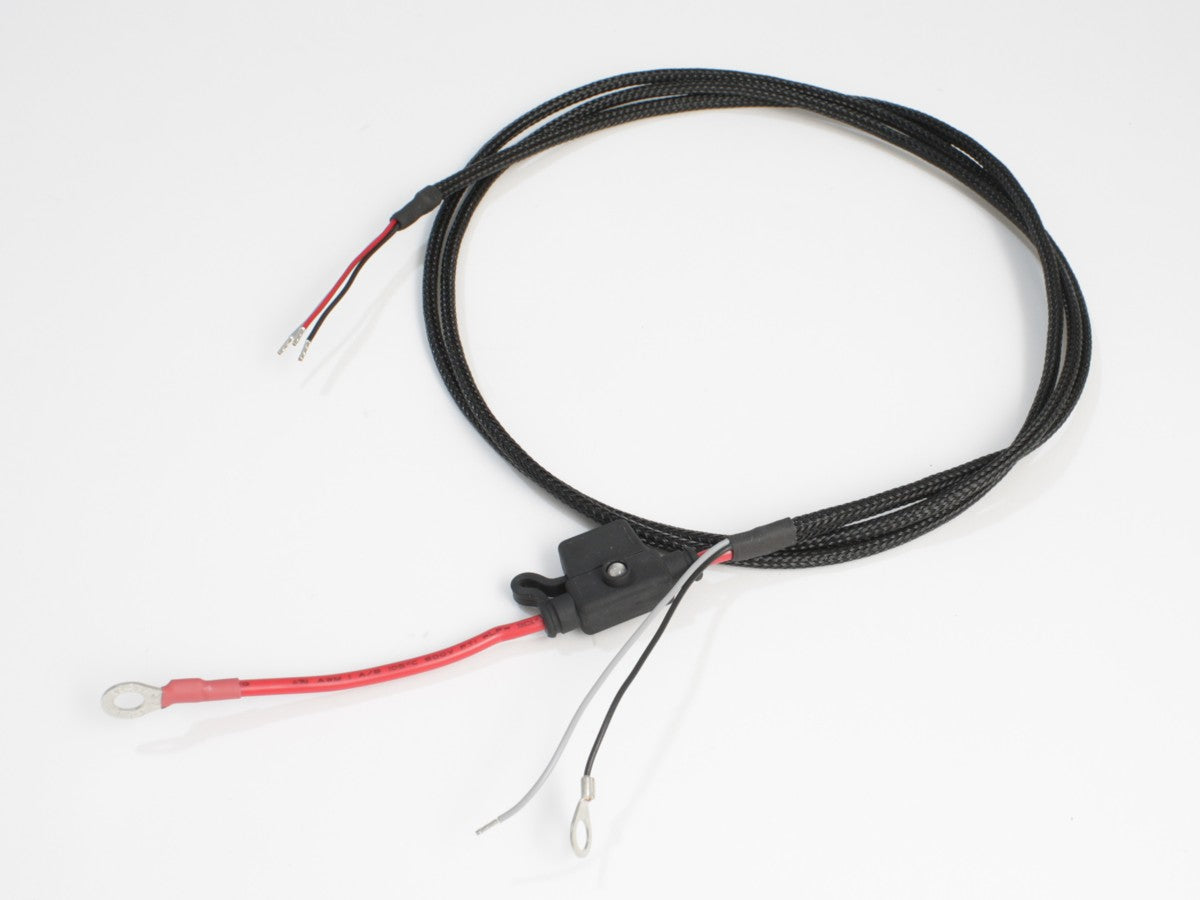

mo.lock NFC to mo.unit Cable Assembly with Fuse, High-Temp
AUD45.00
A complete, purpose-built harness for connecting your mo.lock NFC to a mo.unit, hand-built in Australia and cut to length for your bike.
Unlike our standalone mo.lock NFC Cable Kit, this harness is designed specifically for builds running mo.lock alongside a mo.unit.
Fused Power Feed

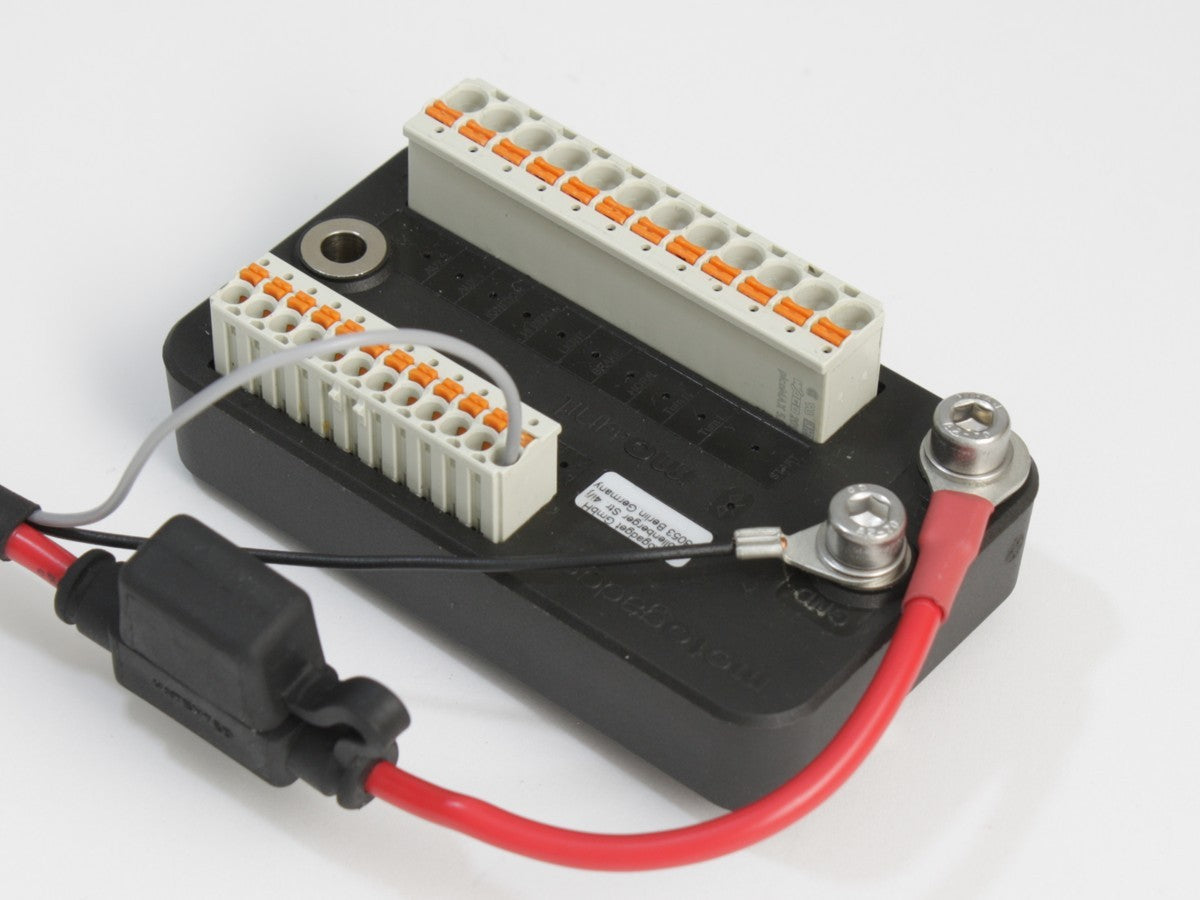

The red, 3.5mm² power lead from the 30A mini-blade fuse-holder (fitted with 5A fuse) terminates in an M6 ring terminal that you bolt to the mo.unit's power pole, alongside your mo.unit's own power feed. The cable steps down to 0.5mm² immediately after the fuse to keep the harness slim past that point and runs to the mo.lock power terminal. So the mo.lock's power circuit is protected at its own rating rather than riding on the much larger main fuse.
Clean Ground and Signal Path
A black, 0.5mm² ground cable with M5 ring terminal connects to the mo.unit's ground pole/mounting hole, giving the mo.lock a solid, direct earth. A grey 0.5mm² signal cable then links the mo.lock's power output port straight to the mo.unit's LOCK IN port, so the mo.unit knows the moment the mo.lock authorises the bike to power up.
Plug-and-Play Installation. Made to Length, Not Just to Fit
Hand-built in-house, so you're not stuck with a one-size-fits-all loom. Choose the length that suits your mounting layout for a clean install with no excess cable to coil up and hide.
All cable ends are terminated for you in ring terminals and bootlace ferrules. No soldering, no crimping, nothing left to figure out.
3-Year Warranty!
Manufactured by us here in Australia using the highest quality components. If the cable fails within 3 years of purchase, we will replace it for you free of charge.
Note: This harness is intended for customers connecting a motogadget mo.lock NFC to a mo.unit Blue or Basic. If you're running your mo.lock without a mo.unit, see our standalone mo.lock NFC Cable Kit instead.
Specifications
Fuse Holder
Max. Current Rating: 30A
Max. Voltage Rating: 32V
Maximum Overall Cable Diameter: 4mm
Conductor Cross Section: 3.5mm²
Includes 2 x 5A mini-blade fuses
Features LED indicator which illuminates when fuse is blown.
mo.lock Cables
Current Rating: 11A
Voltage Rating: 12V to 24V
Maximum Overall Diameter: 1.6mm
Conductor Specification: 16/0.2mm
Conductor Cross Section: 0.5mm²
Temperature Range: -40°C to 105°C with excursions up to 120°C.
Sleeving: braided, black PET sleeving, -50ºc to +150ºc
Sleeved Diameter: 4.5mm
