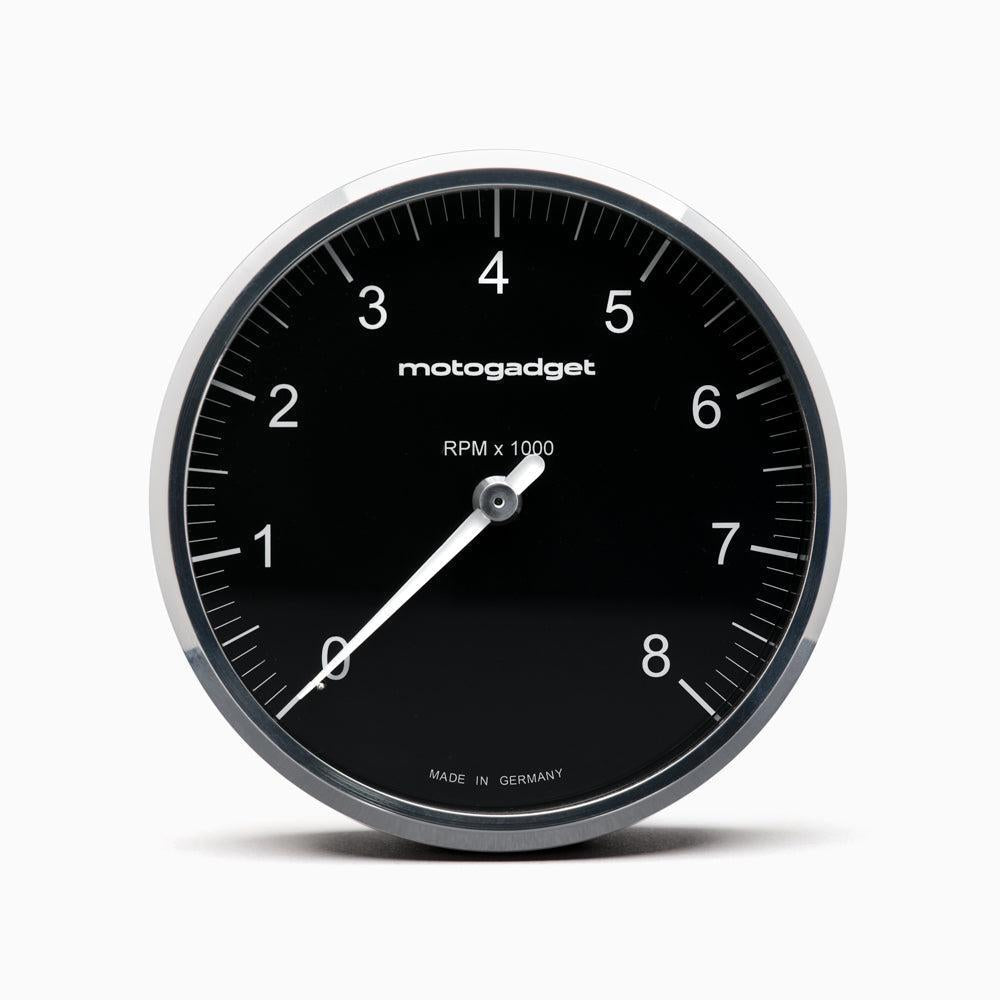

Motogadget Chronoclassic 2, 8k, Polished Bezel

PRE-ORDER NOW, DISPATCHES IN 3 TO 6 WEEKS.

motogadget's most innovative round instrument, with an invisible LED display. Classic on the outside, high-tech on the inside.

More than 20 years of experience went into developing motogadget's slimmest and most innovative round instrument.

With an 80 mm diameter and a case depth of just 22 mm, it allows an exceptionally compact design and opens up new ways of integrating it into your bike.

When switched off, all you see is a seamless black dial: modern, minimalist and timelessly classic. The digital display, developed in-house by motogadget, is a matrix of 512 tiny, super-bright red LEDs that shines through the dial face. Nothing else on the aftermarket does this.

The two-line display is perfectly readable even in direct sunlight. The top line shows the gear and speed, and the bottom line shows a choice of values you can switch between at the touch of a button. An illuminated pointer, evenly lit backlighting and automatic LED brightness control make it just as easy to read in the dark.

The indicator lights are invisible when switched off and shine through the dial when lit.

What works with and without a Breakout Box

Instrument only (no Breakout Box)

• Speed, from the included speed sensor or a compatible OEM 3-wire sensor
• RPM, analogue needle and digital, connected directly to the ignition coil (CDI ignitions need the motogadget ignition signal pickup, sold separately)
• Gear indicator, after a teach-in ride
• Shift light
• Trip A and B, odometer, travel time and clock
• On-board voltage, with low-voltage warning
• Acceleration and max acceleration, average and max speed, max RPM, 0-100 km/h timer
• Operating hours counter, with service interval warning
• Universal warning light, used with the instrument's warning messages

With Breakout Box A (adds)

• Indicator lights: turn signals left and right, high beam, neutral, oil pressure switch and engine warning light
• Fuel level display (float resistor sender) or reserve warning (float switch or thermistor sender)

With Breakout Box B (adds everything in A, plus)

• Oil temperature, water temperature and air temperature (motogadget sensors required, sold separately)
• Oil pressure reading (motogadget oil pressure sensor required, sold separately)
• Adjustable warnings for each of these

Both Breakout Boxes connect to the instrument with a single cable and are waterproof (IP69).

Specifications

• Overall diameter: 83 mm
• Mounting diameter: 80 mm
• Depth: 22 mm (case), 34 mm (including rear connector)
• Weight incl. connection cable: 220 g

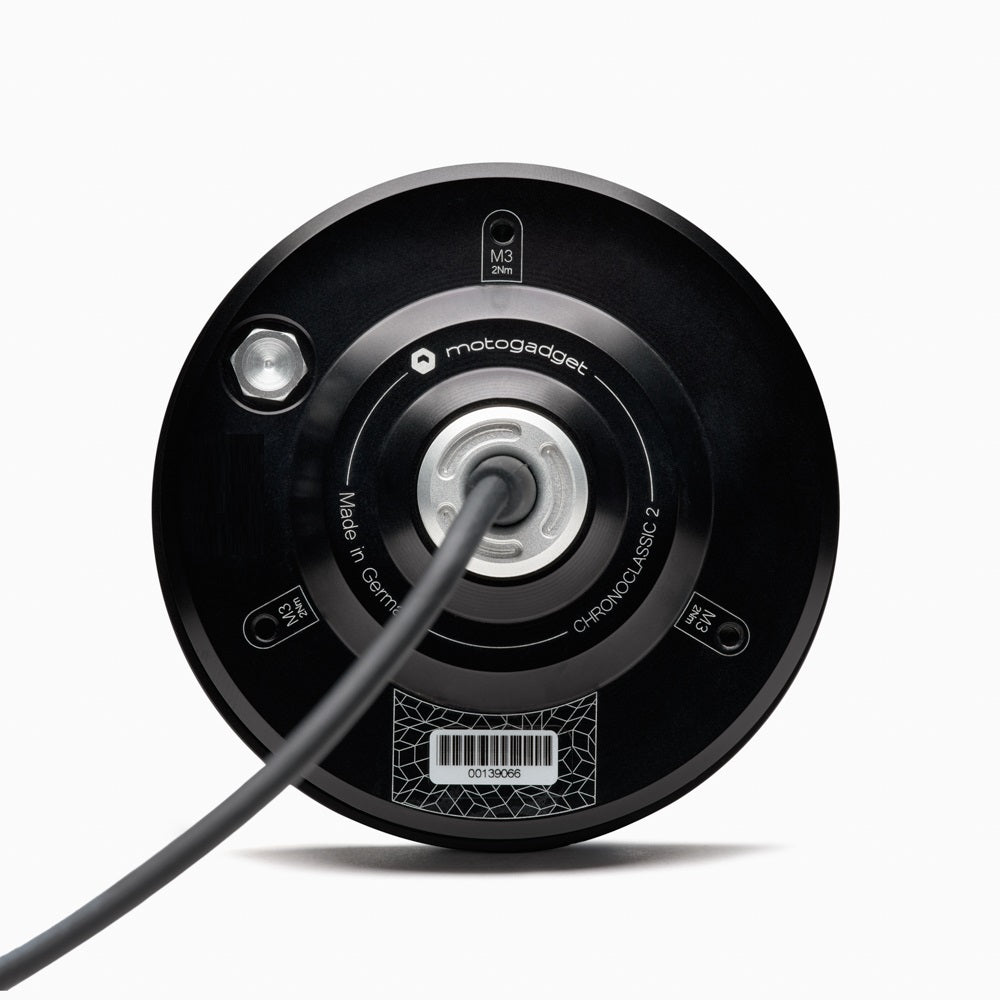

• Mounting threads: 3 x M3, 4 mm deep
• Power consumption: max. 200 mA
• Standby current: 400 μA
• Operating voltage: 9 to 15 V
• Operating temperature: -20 to +80 °C
• Display: motogadget DOT matrix of 512 individual LEDs

Indicator lights

• Turn signal left
• Turn signal right
• High beam
• Neutral
• Oil pressure
• Engine warning / MIL
• Reserve
• Oil temperature / water temperature
• Universal warning light

Analogue dial

• White illuminated pointer
• Scale: 8,000 RPM

Shift light

• Adjustable from 100 to 19,900 RPM

Display values

• Gear indicator
• Speed up to 999 km/h or mph
• Trip A and Trip B up to 999.9 km or mi
• Odometer up to 999,999 km or mi
• Engine speed up to 19,999 RPM
• Travel time
• Clock
• 0-100 km/h (0-60 mph) timer
• Acceleration in G
• Average speed
• Maximum speed
• Maximum RPM
• Maximum positive and negative acceleration
• On-board voltage 9 to 16 V
• Operating hours counter up to 9,999 h
• Fuel level 0 to 100 % (Breakout Box A or B)
• Oil temperature 40 to 150 °C (Breakout Box B)
• Water temperature 40 to 120 °C (Breakout Box B)
• Air temperature -20 to +80 °C (Breakout Box B)
• Oil pressure 0.5 to 8.0 bar (Breakout Box B)

Units switchable between km/mi, °C/°F and bar/psi.

Adjustable warning messages

• Low on-board voltage
• Service interval
• Oil pressure switch
• Engine warning
• Low fuel
• Oil temperature
• Water temperature
• Air temperature
• Oil pressure

Package contents

• motoscope chronoclassic 2 with 75 cm connection cable and plug connection
• Cable fuse
• Speed sensor with 150 cm connection cable and two magnets
• Mini push-button
• Stainless steel mounting screws
• QR code for mounting and operating instructions

Sold separately

• Breakout Box A or B, for indicator lights and sensors (see above)
• Universal mounting bracket and outer cup (aluminium, CNC, black anodised)
