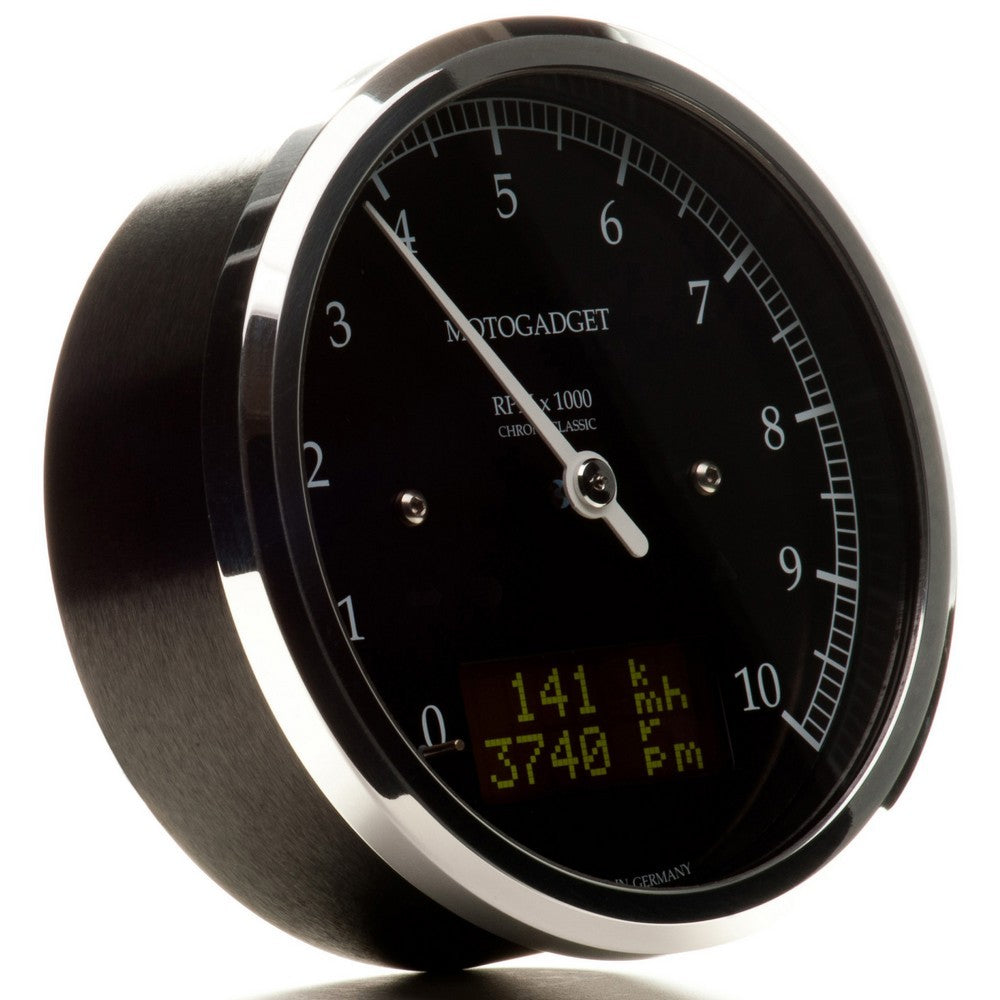

Motogadget Chronoclassic, Black Bezel, DarkEdition, 10k

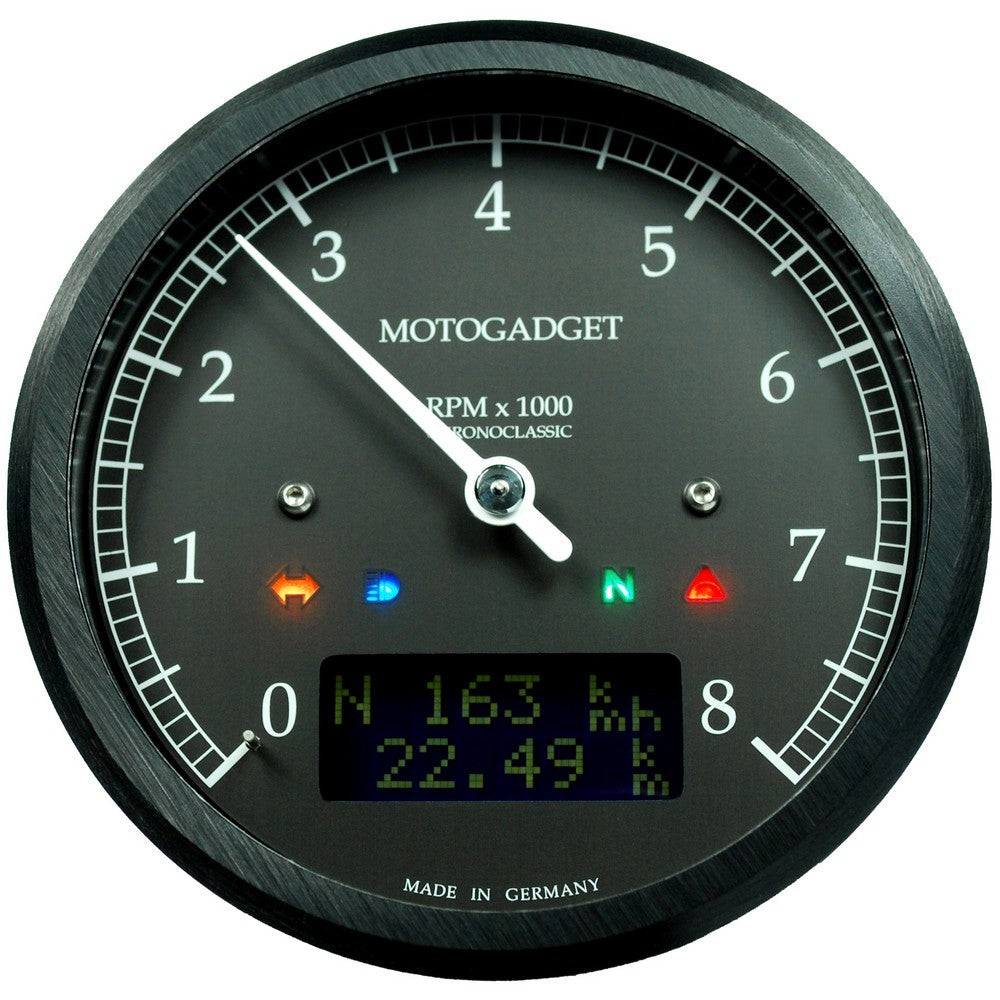

The motogadget chronoclassic is a digital multi-purpose instrument in a classic round casing.

Technically identical to the motoscope classic, it brandishes a black dial and a white indicator. The design resembles old Smiths brand instruments.

Another distinct characteristic is the dark LCD (DarkEdition). It further increases the harmonic look of the gauge.

Please note: We explicitly stress that readability decreases in cases of direct sunlight. If readability is of primary concern to you, please purchase the standard green display.



Package Contents

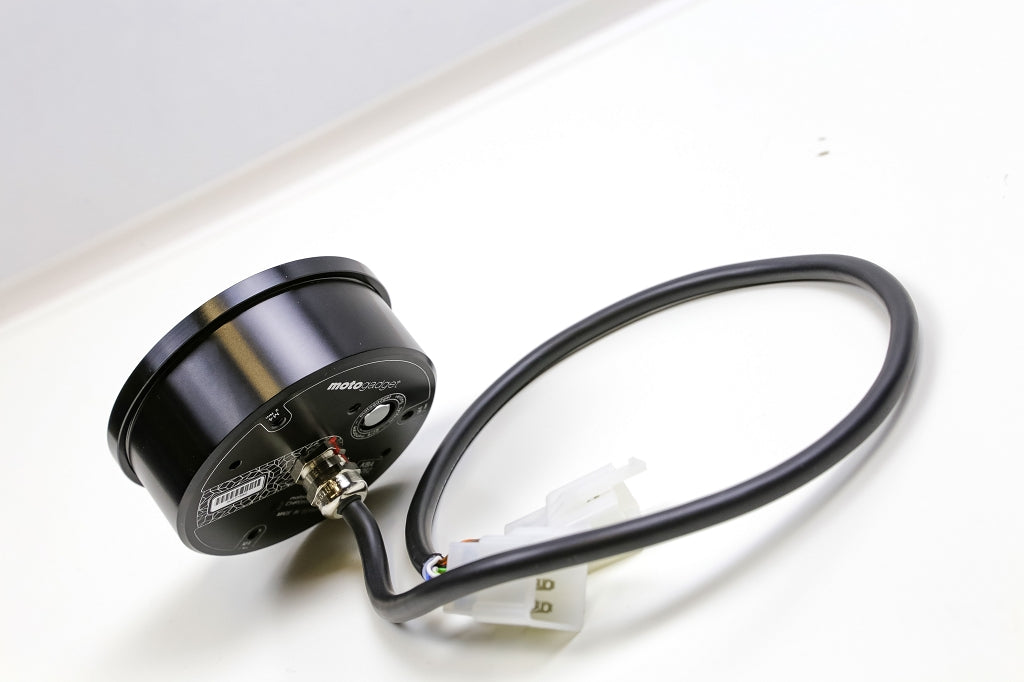

  • Instrument with approx. 55 cm connector cable
  • Complete wiring
  • Fuse
  • Speedometer sensor M5 x 0,5 fine-pitch thread with 150 cm connector cable
  • 2 x magnets
  • Mini push-button
  • 3x M4 screws (stainless steel)
  • Detailed installation and operating instructions

Please note that temperature and pressure sensors have to be ordered separately.



Specifications

Mounting diameter: 80 mm

Total diameter (bezel): 85 mm

Depth without cable fitting: 34 mm

Weight: approx. 230 g

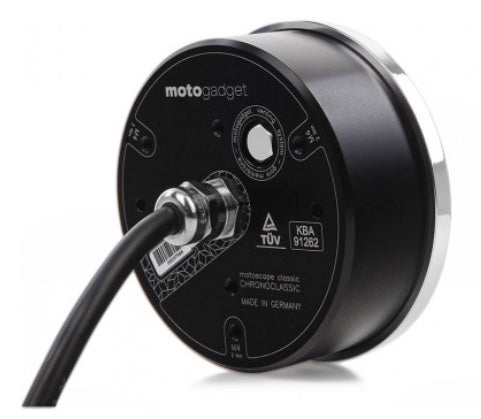

Mount: 3 x M4 threaded hole

Power consumption, operating: approx. 200 mA (load dependent)

Power consumption, standby: 0 mA

Operating voltage: 9 V - 18 V

Operating temperature: -20°... +80°C

Rev counter (analogue/indicator): 0 – 10,000rpm

Speedometer: (LCD) 0 – 350 km/h or mi/h

Trip meter: 999 km or mi max.

Total distance: (adjustable) 250000 km or mi max.

Journey time display: 0 – 99:99:99 h/min/s

Rev counter (on LCD): 0 – 20000 rpm

RPM threshold warning, adjustable: (int. LED and ext. gear shift flash) 0 – 20000 rpm

On-board voltage display: 9 V – 18 V

NEW! Low voltage warning: LED blinks if on-board voltage drops below approx. 11V - replacement for battery charge status light

Air temperature* (optional instead of water temp.): -20 - 80 °C / -4 - 176 °F with high-/low warning

Water temperature* (optional instead of air temp.): 40 - 120 °C / 104 - 248 °F with high-/low warning

Oil temperature*: 40 - 160 °C / 104 - 320 °F with high-/low warning

Oil pressure*: 0 - 8 bar / 0 - 116 psi with high-/low warning

Timer: 0 - 100 km/h or 0 - 60 mi/h 0.0 – 99.9 s

Current acceleration: (-20.0) – 20.0 m/s2

Average speed: 0 – 350 km/h or mi/h

Max. speed: 0 – 350 km/h or mi/h

Max. rpm: 0 – 20.000 rpm

Max. positive acceleration: 0 – 20.0 m/s2

Max. negative acceleration: 0 – (-20.0) m/s2

Gear indicator: N, gear 1 - 6

Green indicator LED: Neutral (N)

Yellow indicator LED: Turn signal left, right

Blue indicator LED: High beam

Red indicator LED: Different warning functions external (e. g. oil pressure switch), internal (rpm, temperature, pressure, voltage)

Output external gear shift flash light: Switched power 1.4 A max.
