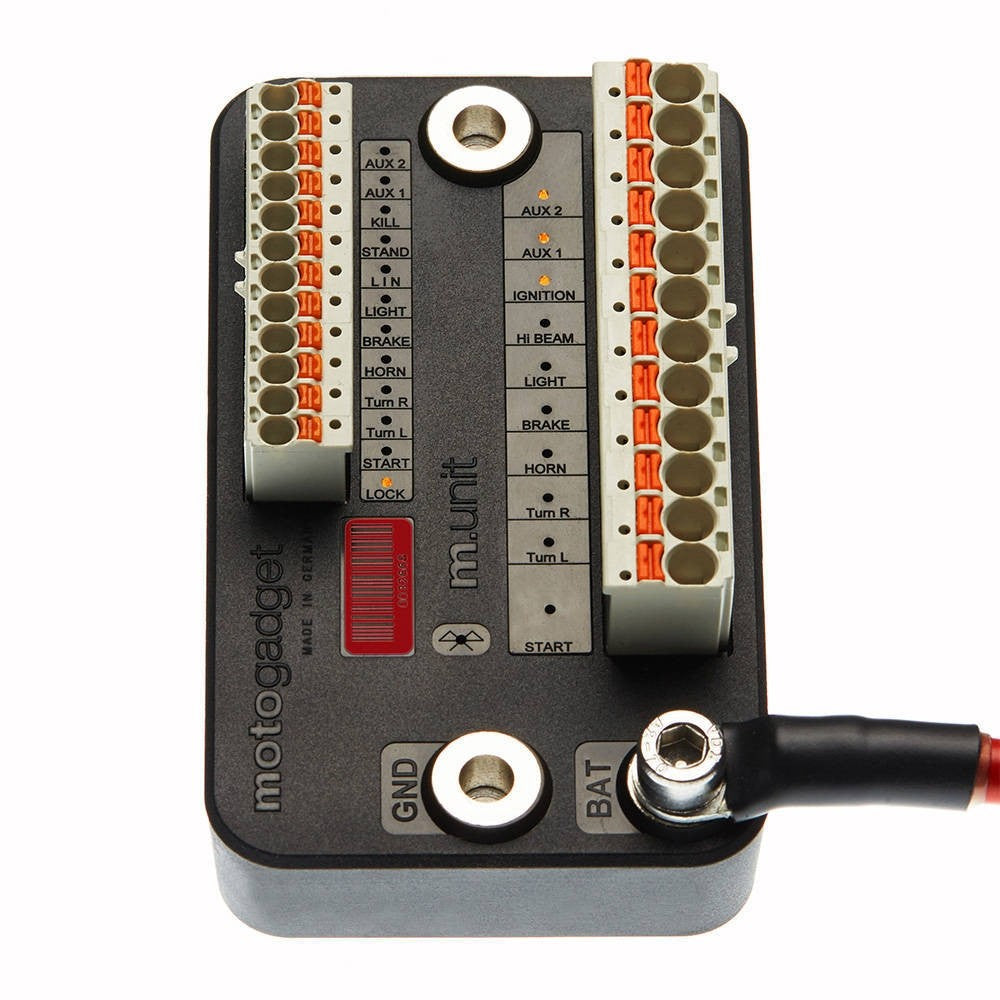

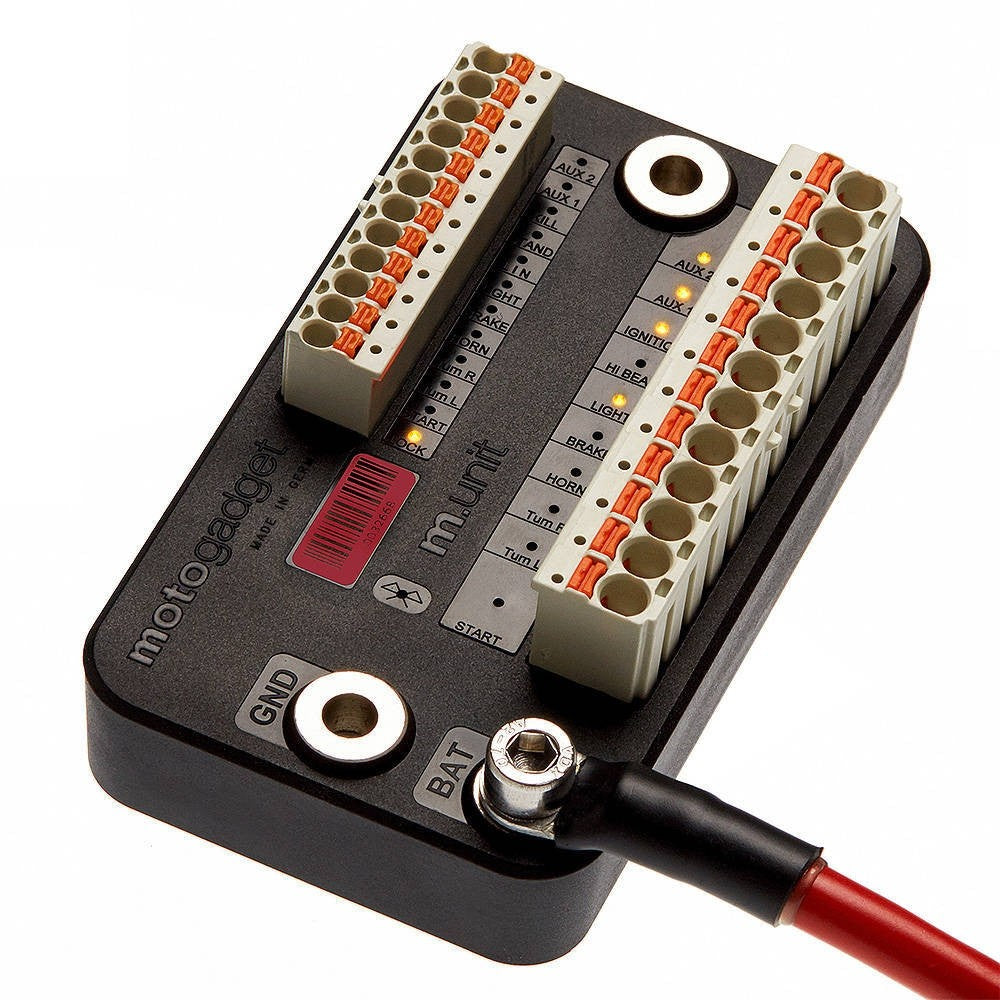

The mo.unit basic is a reliable, high-quality programmable control unit for motorcycles that is characterised by its versatile functions. The mo.unit basic has the same features as the mo.unit blue, but without the Bluetooth wireless connectivity.

The mo.unit basic is a digital control center, the heart of the entire vehicle electrical system. It can be operated both with push-button fittings and with conventional, toggle switch handlebar switches. The mo.unit basic switches all components in the vehicle via wear-free, high-performance semiconductor switches and takes over the tasks of the electrical fuses. Various relays, connectors and individual components in the wiring harness are made obsolete, minimising the vehicle wiring system, making it quick and easy to put together.

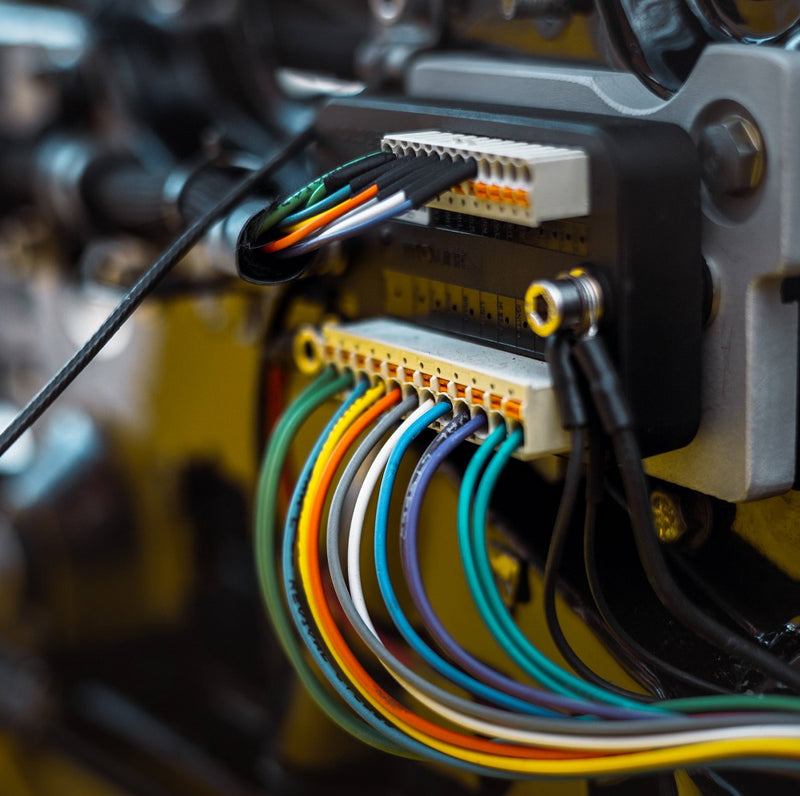

The mo.unit basic has 12 inputs, 10 outputs and replaceable, quality cable terminals.

Functions

  • Push-button control for 4 or 5-button operation
  • Replacement of the vehicle fuses
  • Alarm system
  • Load-independent flasher relay
  • Hazard warning lights
  • Blinker as position light (adjustable)
  • Time-controlled blinker switch-off
  • Path-controlled turn signal deactivation (speedometer sensor required)
  • Parking light and headlight flasher
  • Control of low beam and high beam with one button
  • Stop light modulator (8 adjustable modes)
  • Emergency stop light
  • Garage light
  • Fan run-on
  • Hyperbeam (200W high beam + low beam)
  • Starter relay for starter with magnetic switch (max. 30 A)
  • Intelligent switch-off of consumers at startup
  • Integrated, digital horn relay
  • Two configurable additional outputs AUX1 and AUX2
  • Complete wiring system diagnostic function
  • Defect detection of all light sources


Technical Data

  • Dimensions 90 x 53 x 30mm (L/W/H)
  • Waterproof, vibration-resistant - IP69
  • Weight approx. 180 g
  • Fastening 2 x M5 screw, distance 74mm
  • Operating voltage 6 V - 20 V
  • Operating temperature -20° to +80°C


Inputs

  • Ignition lock +12V or mo.lock
  • Turn signal left
  • Turn signal right
  • Light
  • Starter
  • Horn
  • Brake light
  • Kill
  • Side stand
  • LIN bus
  • AUX1
  • AUX2


Outputs

  • Indicator left
  • Indicator right
  • Low beam
  • High beam
  • Starter
  • Horn
  • Brake light
  • Ignition
  • AUX1 (Universal)
  • AUX2 (Universal)


Package Contents

  • mo.unit basic
  • Positive pole screw M5
  • 2 x M5 screws with nuts and washers

 Battery cable sold separately
