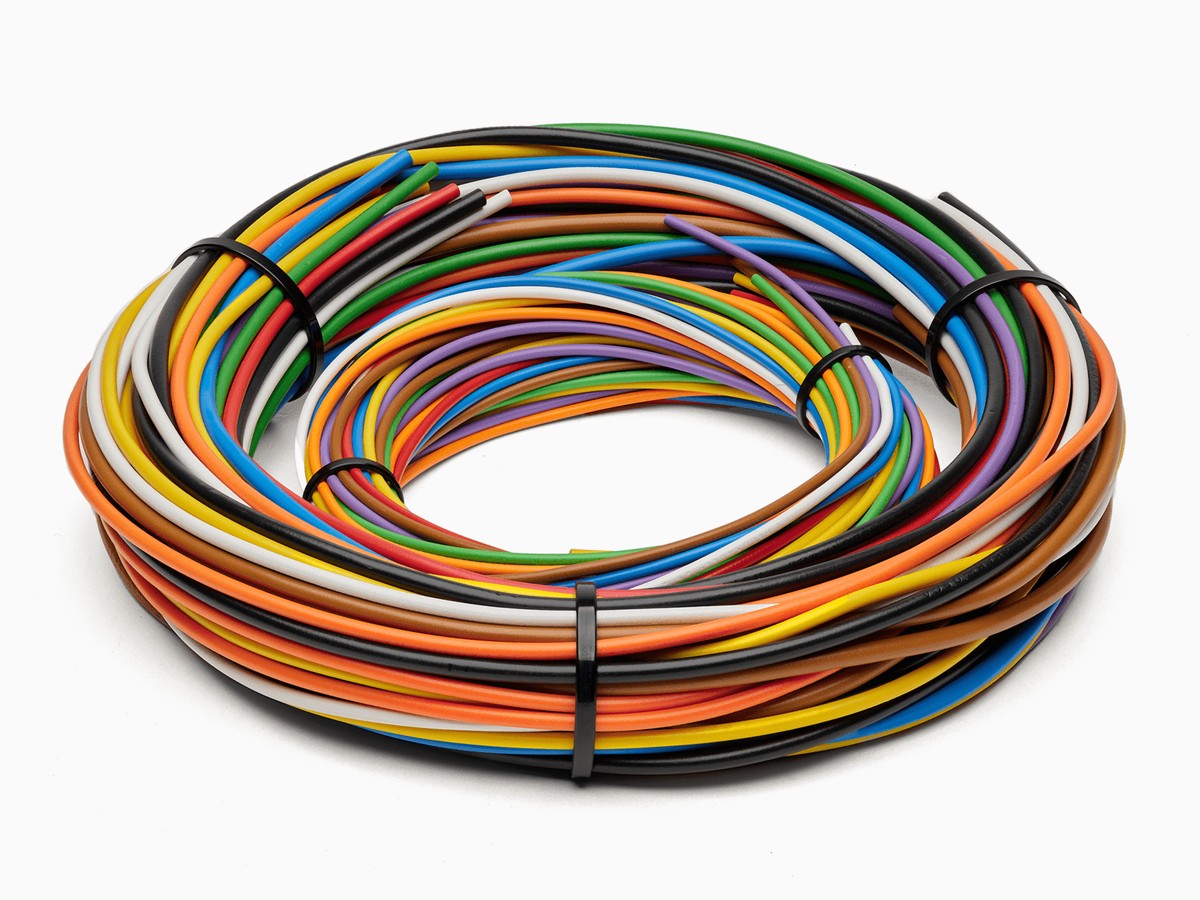

mo.unit Cable Kit by motogadget
$105.00 AUD
Total of 45 metres of cable in 9 different colours.
Note: not compatible with our range of compact connectors. Please consider our thinwall cable kit if you need to connect your cables to compact connectors.
Sourced and assembled by motogadget, this mo.unit cable kit is a ready made set of cables to aid in the assembly of a wiring harness. This cable kit consists of top grade copper-strand cables and will help you doing quick work of creating a new wiring harness.
The different cross-sections and cable colours are ideal for use with the mo.unit and are sufficient in quantity and length for many vehicles. The kit also contains various cable ties and ferrules.
Parts delivered
| Colour | Cross Section | Overall Dia. | Estimated Current Rating (A) | Length (m) |
| brown | 2.5mm² | 3.54mm | 24 | 5 |
| black | 2.5mm² | 3.54mm | 24 | 4 |
| blue | 2.5mm² | 3.54mm | 24 | 2 |
| white | 1.5mm² | 2.78mm | 15.5 | 4 |
| red | 1.5mm² | 2.78mm | 15.5 | 2 |
| yellow | 1.5mm² | 2.78mm | 15.5 | 4 |
| orange | 1.5mm² | 2.78mm | 15.5 | 4 |
| green | 1.5mm² | 2.78mm | 15.5 | 2 |
| purple | 1.5mm² | 2.78mm | 15.5 | 2 |
| white | 0.5mm² | 2.04mm | 9 | 2 |
| blue | 0.5mm² | 2.04mm | 9 | 2 |
| red | 0.5mm² | 2.04mm | 9 | 2 |
| yellow | 0.5mm² | 2.04mm | 9 | 2 |
| green | 0.5mm² | 2.04mm | 9 | 2 |
| orange | 0.5mm² | 2.04mm | 9 | 2 |
| purple | 0.5mm² | 2.04mm | 9 | 2 |
| brown | 0.5mm² | 2.04mm | 9 | 2 |
Estimated current ratings based on published H07V-K manufacturer datasheets; Motogadget does not publish official current ratings for this kit.
Cable Ties, 100mm x 2.5mm: 15 pcs
Cable Ties, 200mm x 3.5mm: 15 pcs
Bootlace Ferrule, 6 mm x 1.3mm: 10 pcs
Bootlace Ferrule, 7 mm x 2mm: 10 pcs
Bootlace Ferrule, 7 mm x 2.6mm: 10 pcs
Specifications (1.5mm² and 2.5mm²)
Core Standard: EN 50525-2-31 / IEC 60227-3, cable type H07V-K (general electrical installation standard)
Application: General-purpose wiring
Operating Temperature: 70°C max conductor temperature;
Voltage Rating: 450/750V
Conductor: Class 5 fine-stranded bare copper, to IEC 60228
Insulation: PVC (general-purpose grade)
Fire Rating: Flame non-propagation to EN 60332-1-2 / IEC 60332-1-2, vertical flame test, 1kW pre-mixed flame, supporting CPR reaction-to-fire class Eca (for general electrical applications)
