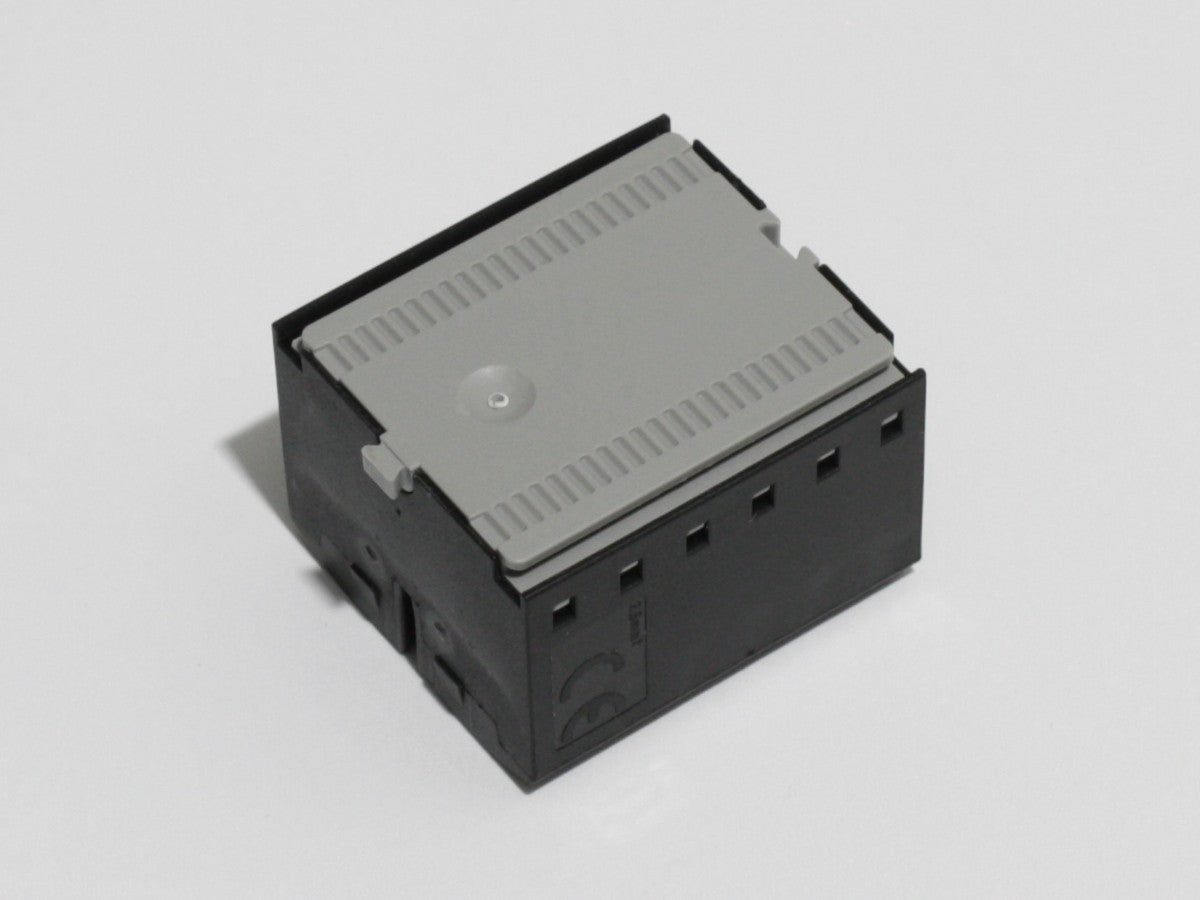

Power/Ground Distribution Block, 12-Way, 24A
AUD25.00
Compact, high-quality 12-position distribution block, ideal for streamlining custom motorcycle electrical systems. Provides a clean, reliable method for distributing common power or ground paths within tight electronics trays, under-seat boxes, or headlight buckets.
Featuring push-in connection technology, allowing for fast, secure wiring that resists vibration and ensures long-term electrical contact reliability on custom builds.
Mounting & Modular Integration

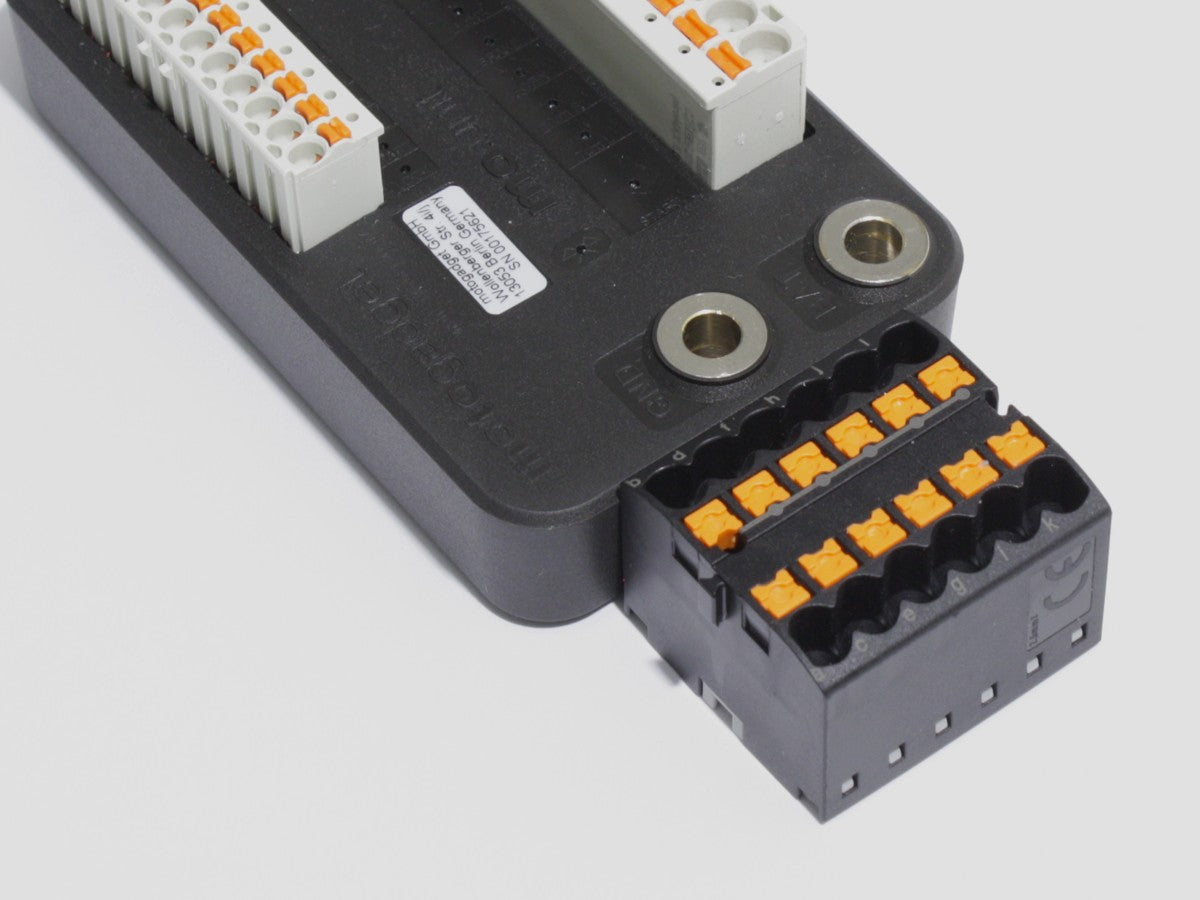

The compact, lightweight design provides total flexibility for custom layout configuration. Blocks can be tucked loose into headlight buckets, secured inside electronics trays using heavy-duty double-sided adhesive tape or Velcro strips, or snapped onto a standard DIN rail using a compatible adapter.

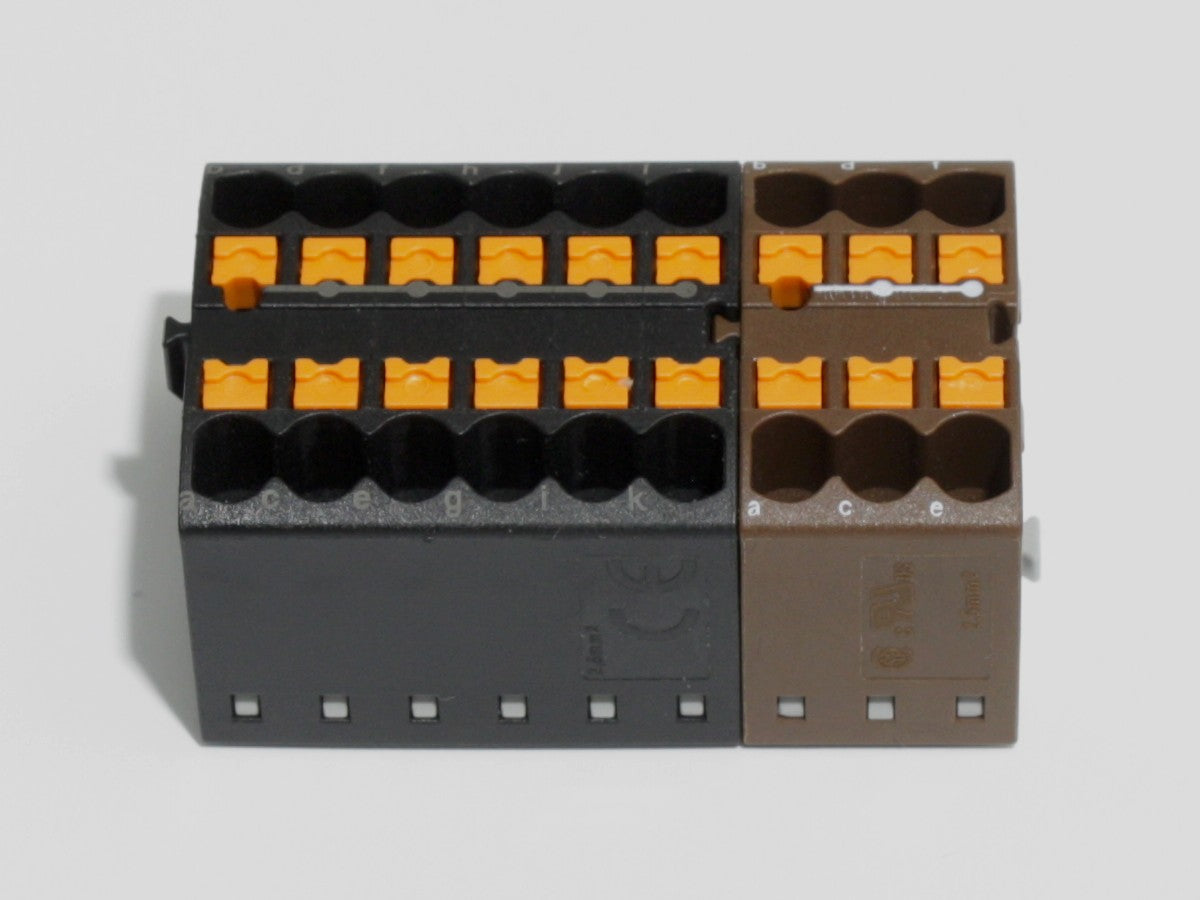

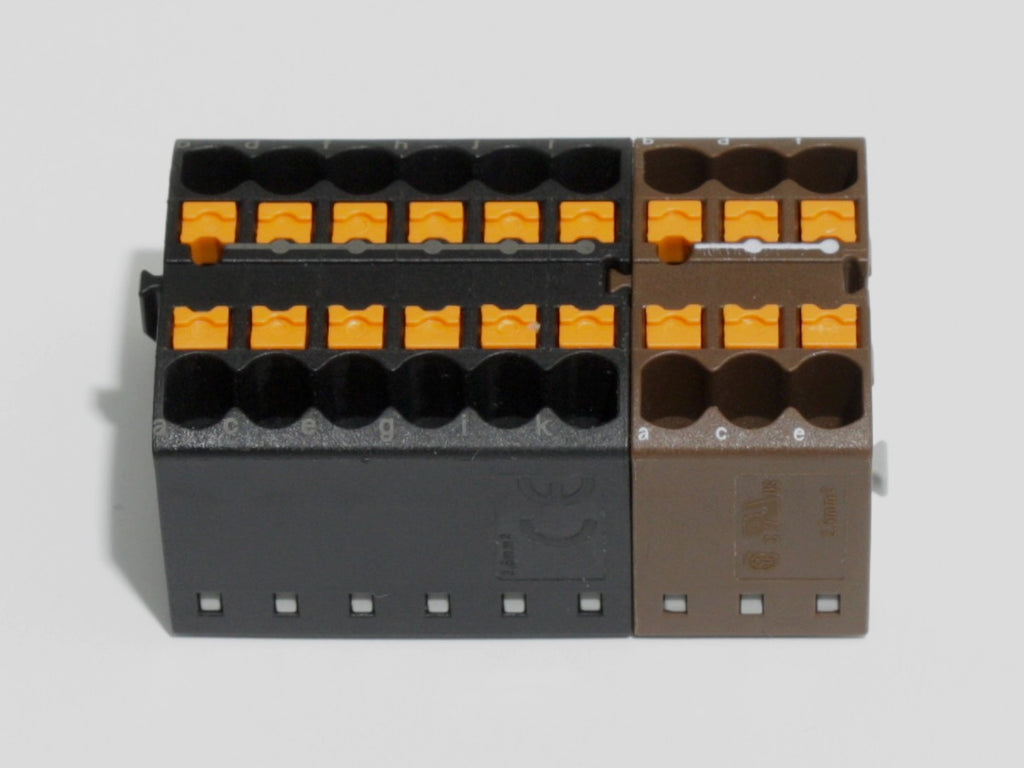

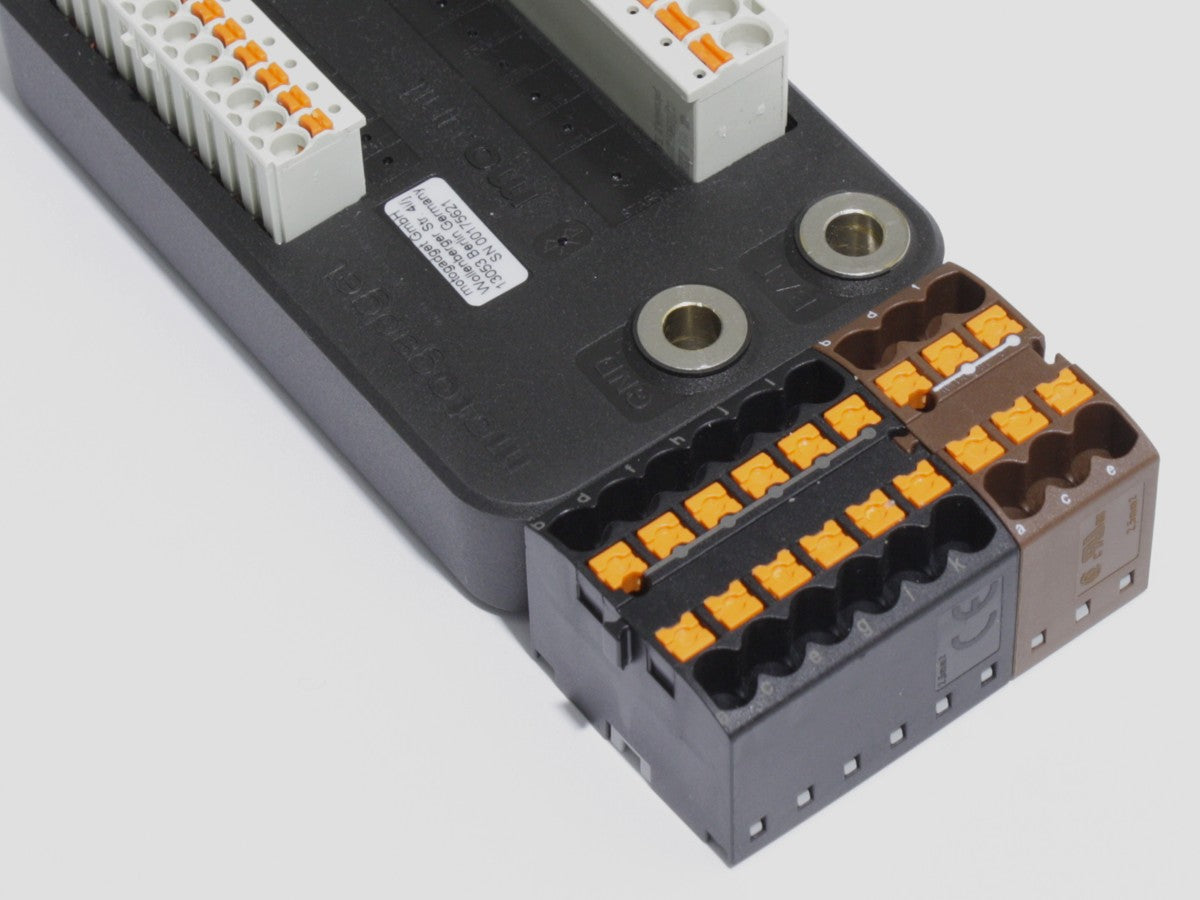

For larger wiring layouts requiring independent circuits (such as separating switched 12V power and chassis grounds), multiple blocks can be physically clipped together side-by-side to form a neat, secure, and modular distribution bank.
Included Bootlace Ferrules
To ensure clean, reliable terminations on flexible multi-strand motorcycle wiring, each distribution block includes a selection of 45 bootlace ferrules in 3 different sizes. Crimping these onto stripped wire ends prevents splayed or frayed copper strands, eliminates the risk of short circuits in cramped electronics enclosures, and guarantees optimum electrical contact inside the push-in terminals.
Kit includes:
6mm long x 1.3mm dia.: 15 pcs
10mm long x 1.7mm dia.: 15 pcs
10mm long x 2.55mm dia.: 15 pcs
Features

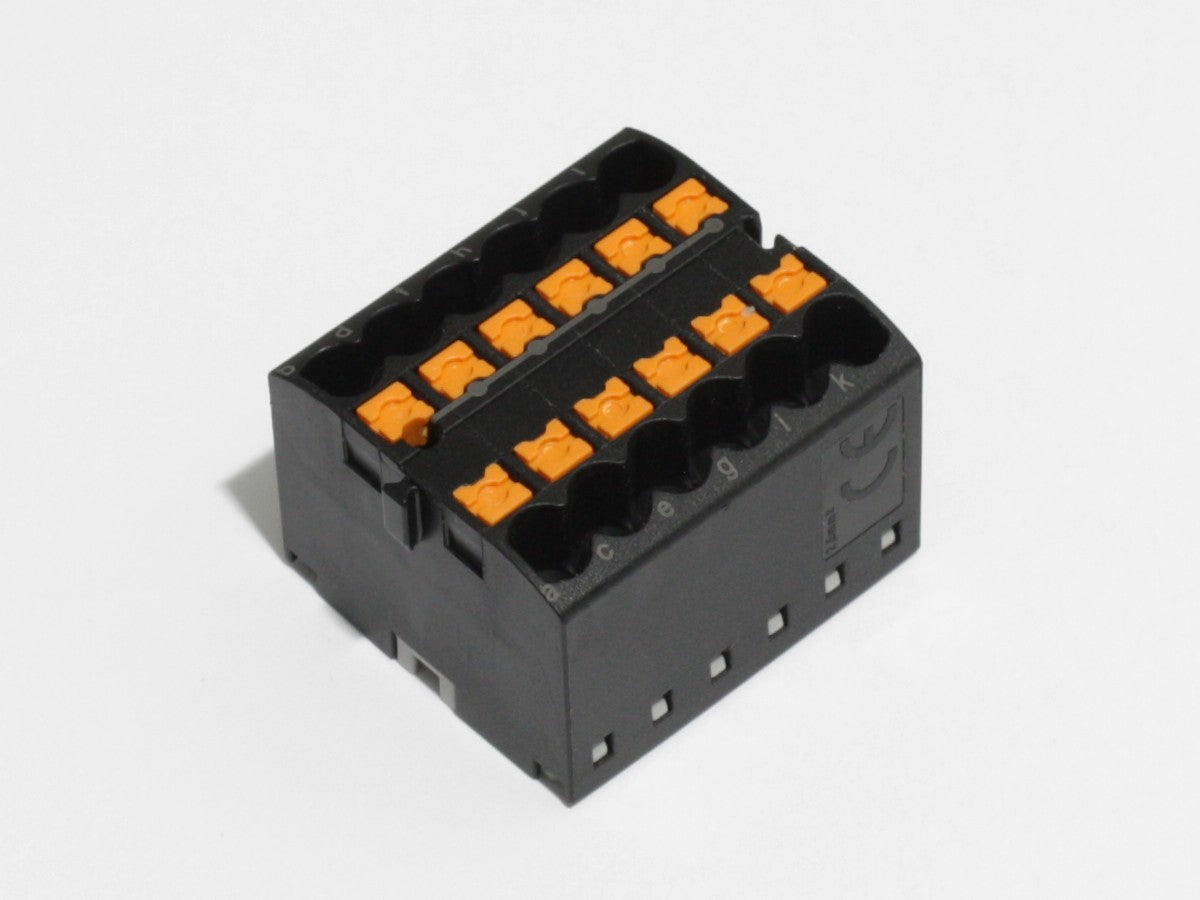

Pre-Bridged Configuration: All 12 terminal points are connected internally. This allows a single main input feed (power or ground) to safely distribute to 11 individual accessory outputs without the need for manual bridging.
Push-In Technology: Stripped cable ends with or without ferrules insert directly into the terminal point for a secure lock without the need for tools. Disconnection is achieved simply by pressing the integrated release button.
Vibration-Proof: The internal spring-loaded clip mechanism ensures wires remain securely locked down under constant operational movement and vibration.

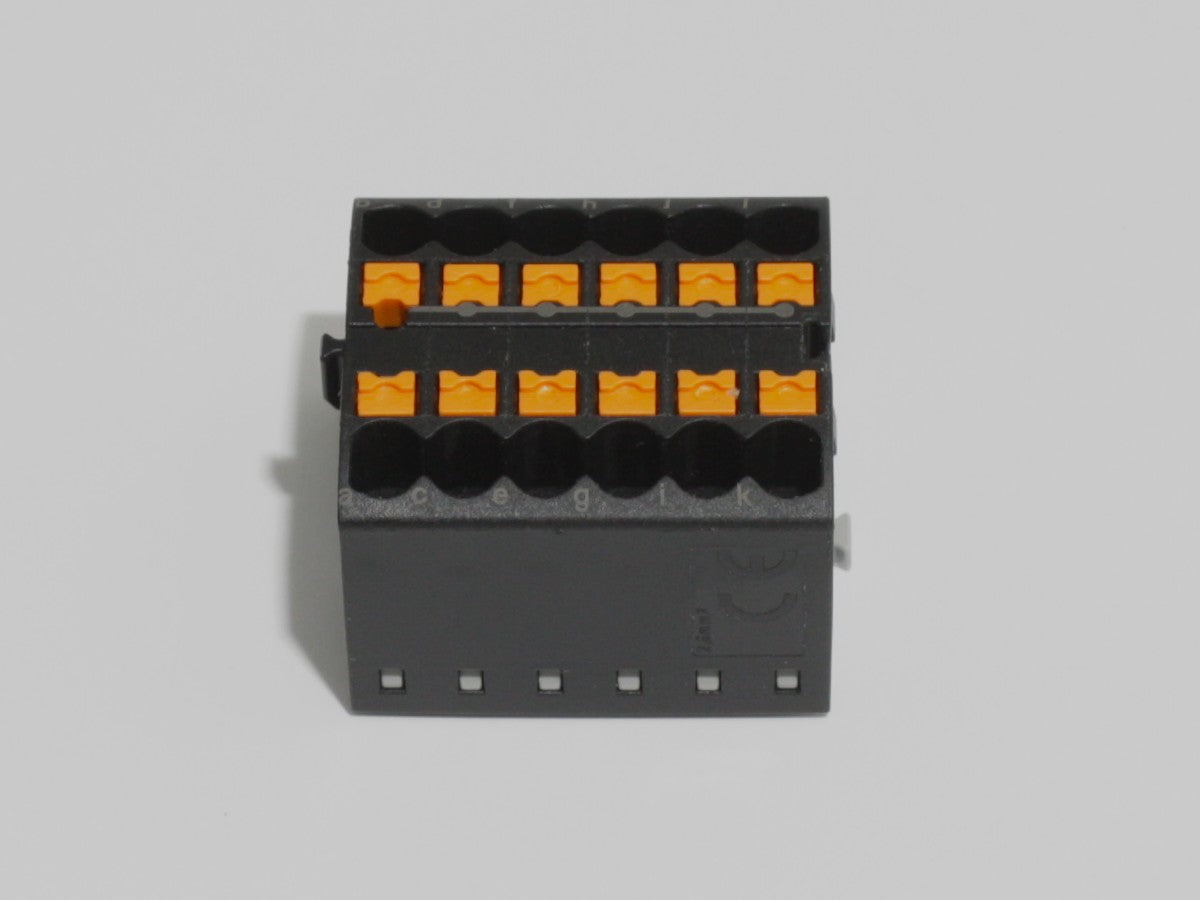

Compact Footprint: Space-efficient design allows for multi-position distribution in highly restricted spaces.
Specifications
Colour: Black
Number of Connections: 12
Connection Method: Push-in connection
Wire Cross-Section Range: 0.14 mm² to 4 mm²
Max. Current: 24A
Max. Voltage Rating: 500V
Temperature range: -60 to +110°C
Overall Dimensions: 31.2 x 28.2 x 21.2mm
Weight: 20g
Flammability Rating: UL 94 V0 (Self-extinguishing)
Certification Standards: IEC 60998-2-2, cULus Recognised, VDE Approved, CE, RoHS Compliant
