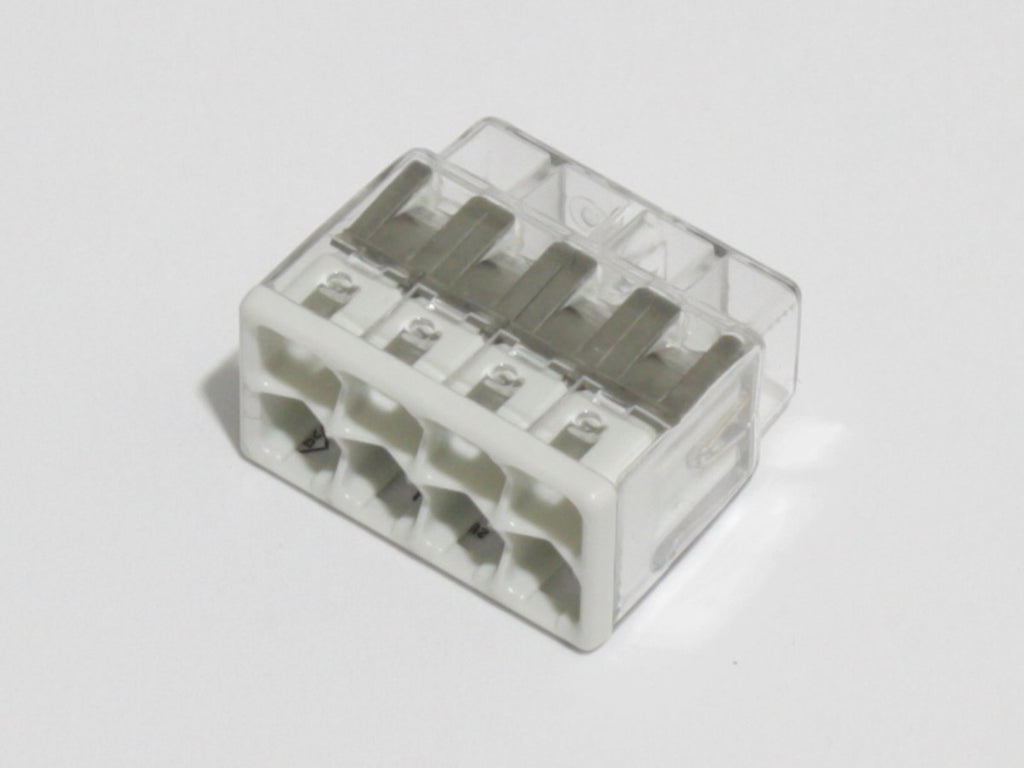

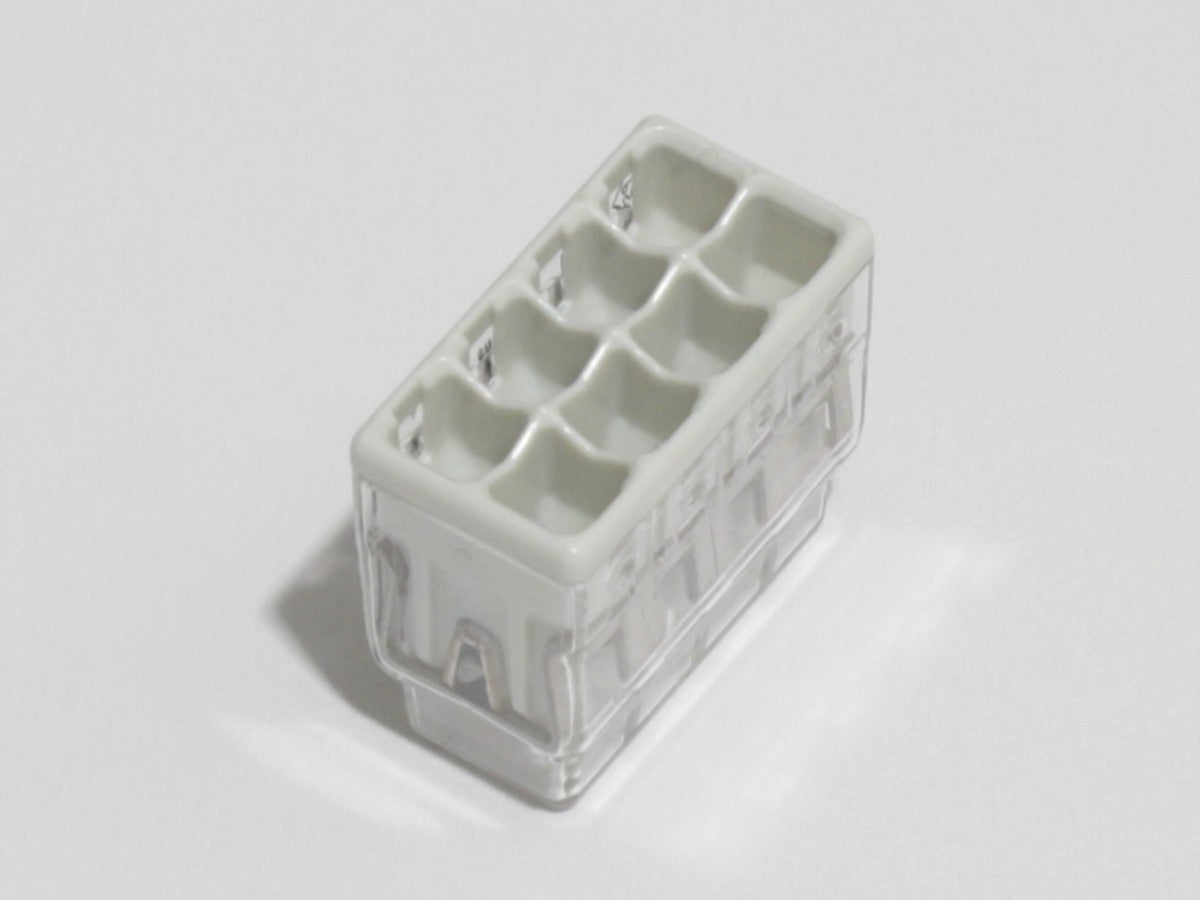

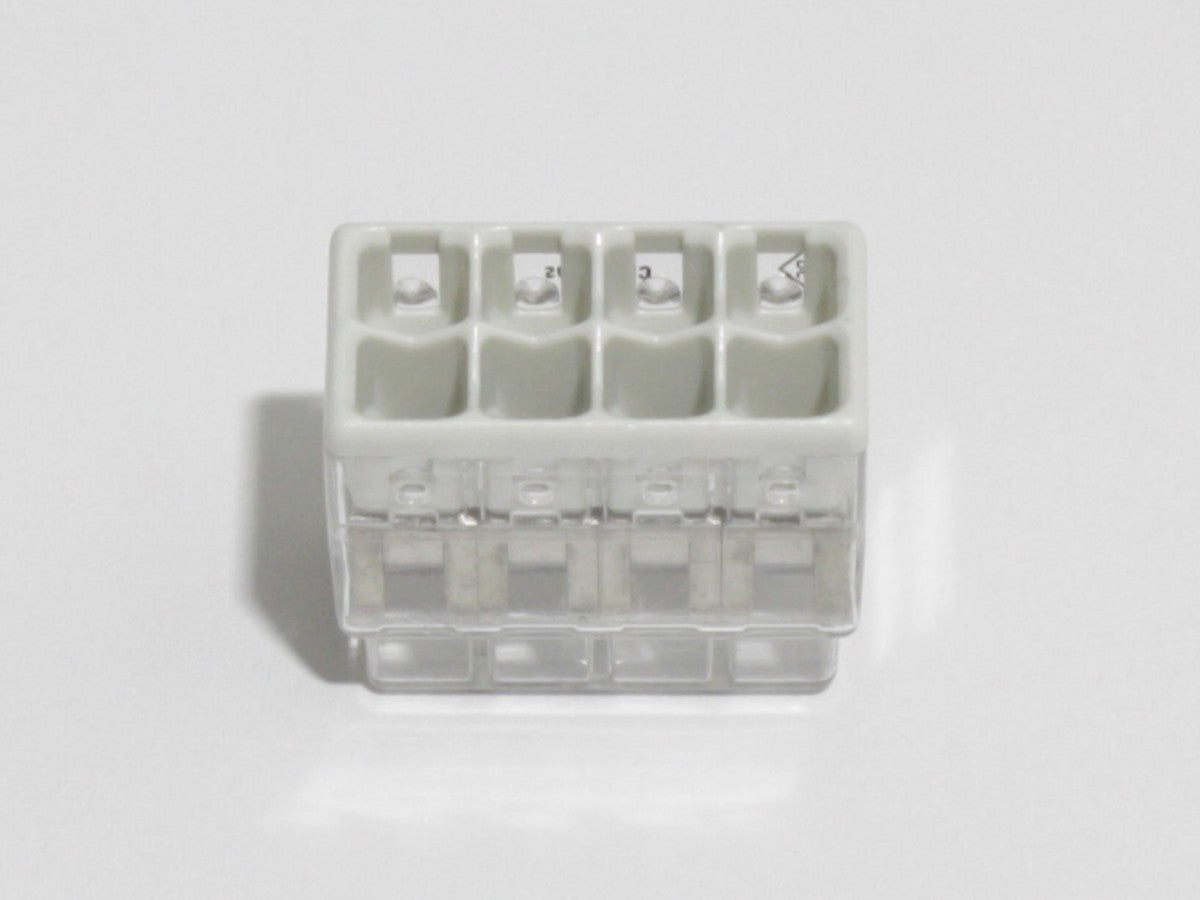

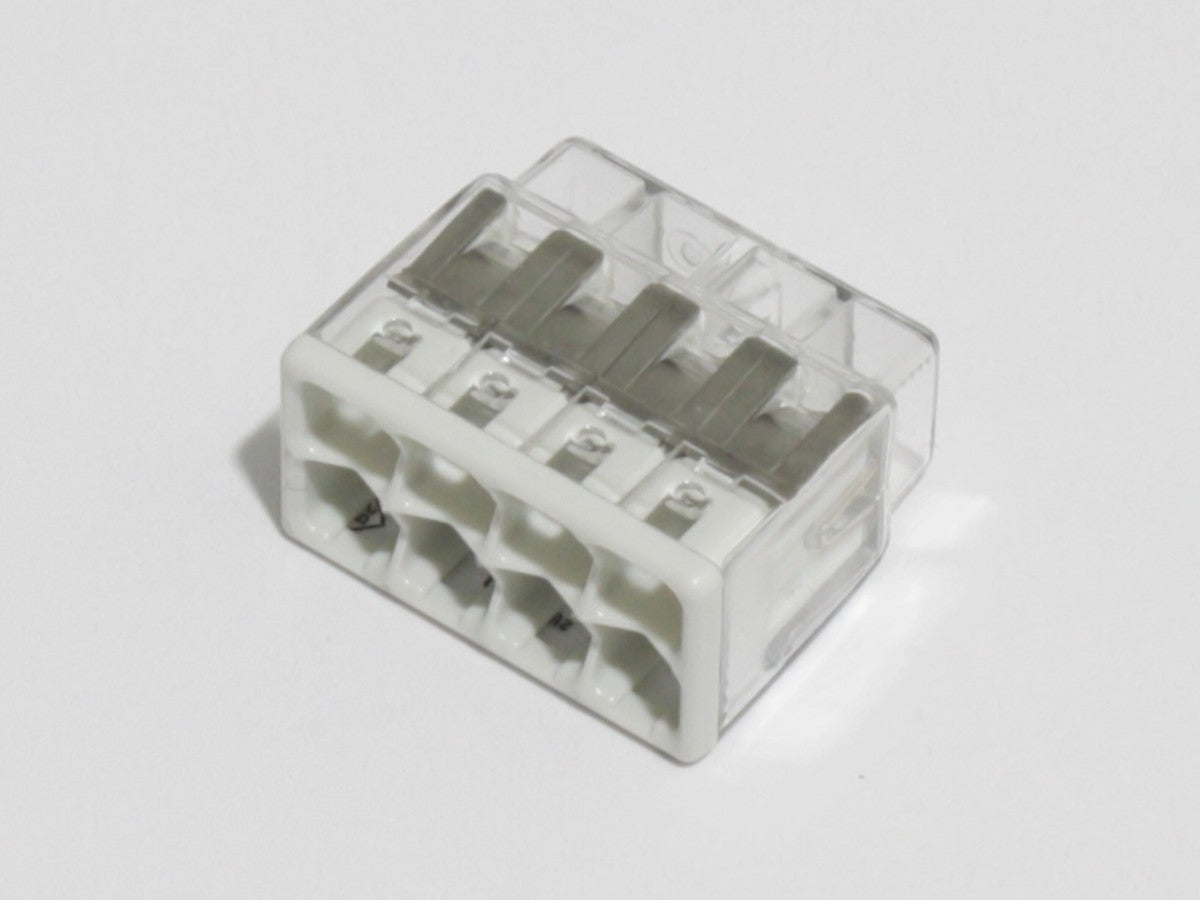

Power/Ground Distribution Blocks, 8-Way, 32A
$12.00 AUD
Ultra-compact, high-quality 8-position Heavy-duty distribution blocks, ideal for streamlining custom motorcycle electrical systems. Provides a clean, reliable method for distributing common power or ground paths within tight electronics trays, under-seat boxes, or headlight buckets.
Featuring push-in connection technology, allowing for fast, secure wiring that resists vibration and ensures long-term electrical contact reliability on custom builds.
Included Bootlace Ferrules
To ensure clean, reliable terminations on flexible multi-strand motorcycle wiring, our kit includes a selection of 60 bootlace ferrules (20 x 1.3mm, 20 x 2mm, and 20 x 2.6mm). Crimping these onto stripped wire ends prevents splayed or frayed copper strands, eliminates the risk of short circuits in cramped electronics enclosures, and guarantees optimum electrical contact inside the push-in terminals. The 1.3mm ferrules are fully tested to provide an exceptionally secure hold on standard 0.5 mm² cable, making it simple to achieve a professional, workshop-grade finish.
Features
Pre-Bridged Configuration: All 8 terminal points are connected internally. This allows a single main input feed (power or ground) to safely distribute to 7 individual accessory outputs without the need for manual bridging.
Push-In Technology: Stripped cable ends with or without ferrules insert directly into the terminal point for a secure lock without the need for tools. Disconnection is achieved simply by pulling out the cable.
Vibration-Proof: The internal spring-loaded clip mechanism ensures wires remain securely locked down under constant operational movement and vibration.
Compact Footprint: Space-efficient design allows for multi-position distribution in highly restricted spaces.
Kit Contents

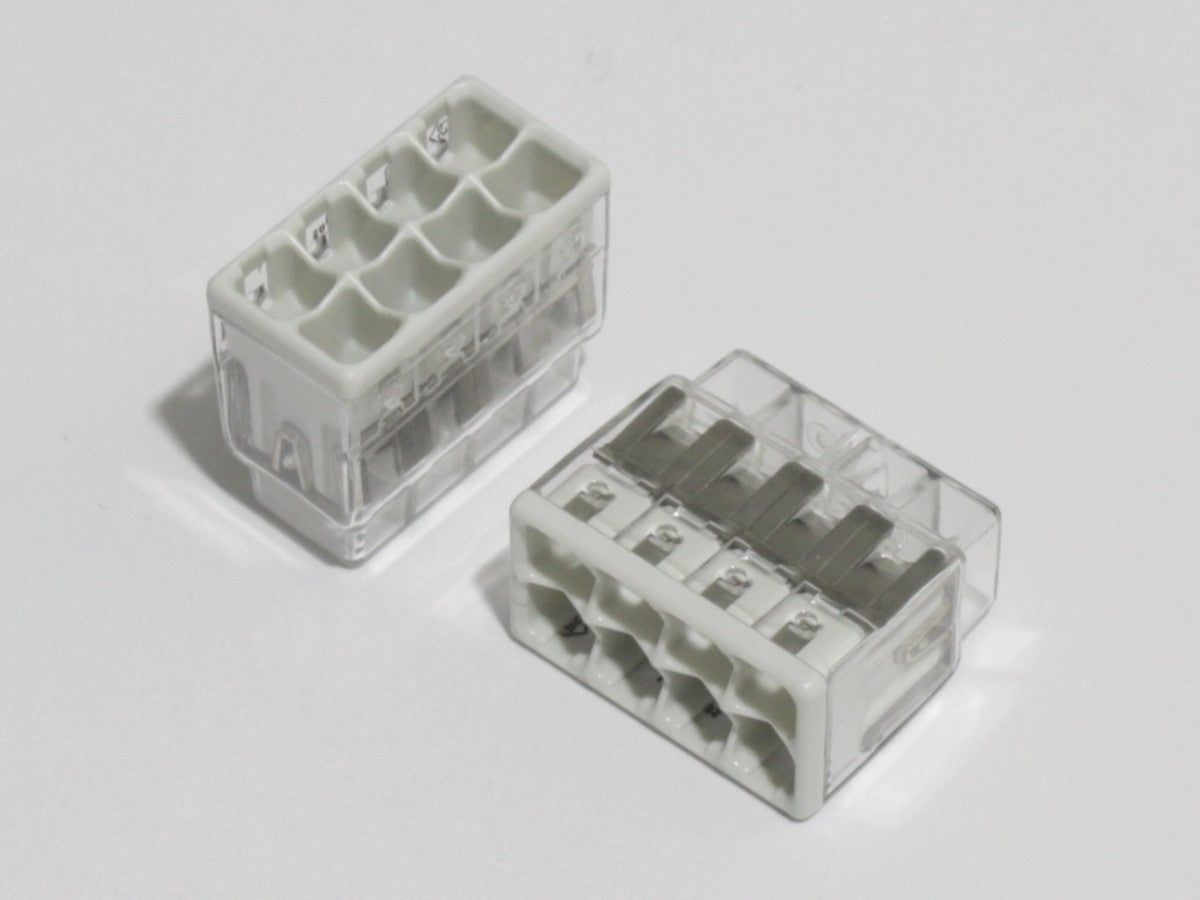

- 2 x 8-Port Distribution Blocks
- 20 x 1.3mm Bootlace Ferrules (Ideal for thin 0.5mm² switchgear, instrument, and LED signal wires)
- 20 x 2mm Bootlace Ferrules (Ideal for standard auxiliary power lines)
- 20 x 2.6mm Bootlace Ferrules (Ideal for main power distribution up to 4.0mm²)
Specifications (per block)
Number of Connections: 8
Connection Method: Push-in connection
Wire Cross-Section Range: 0.5 mm² to 4 mm²
Max. Current: 32A
Max. Voltage Rating: 450V
Temperature range: -40 to +105°C

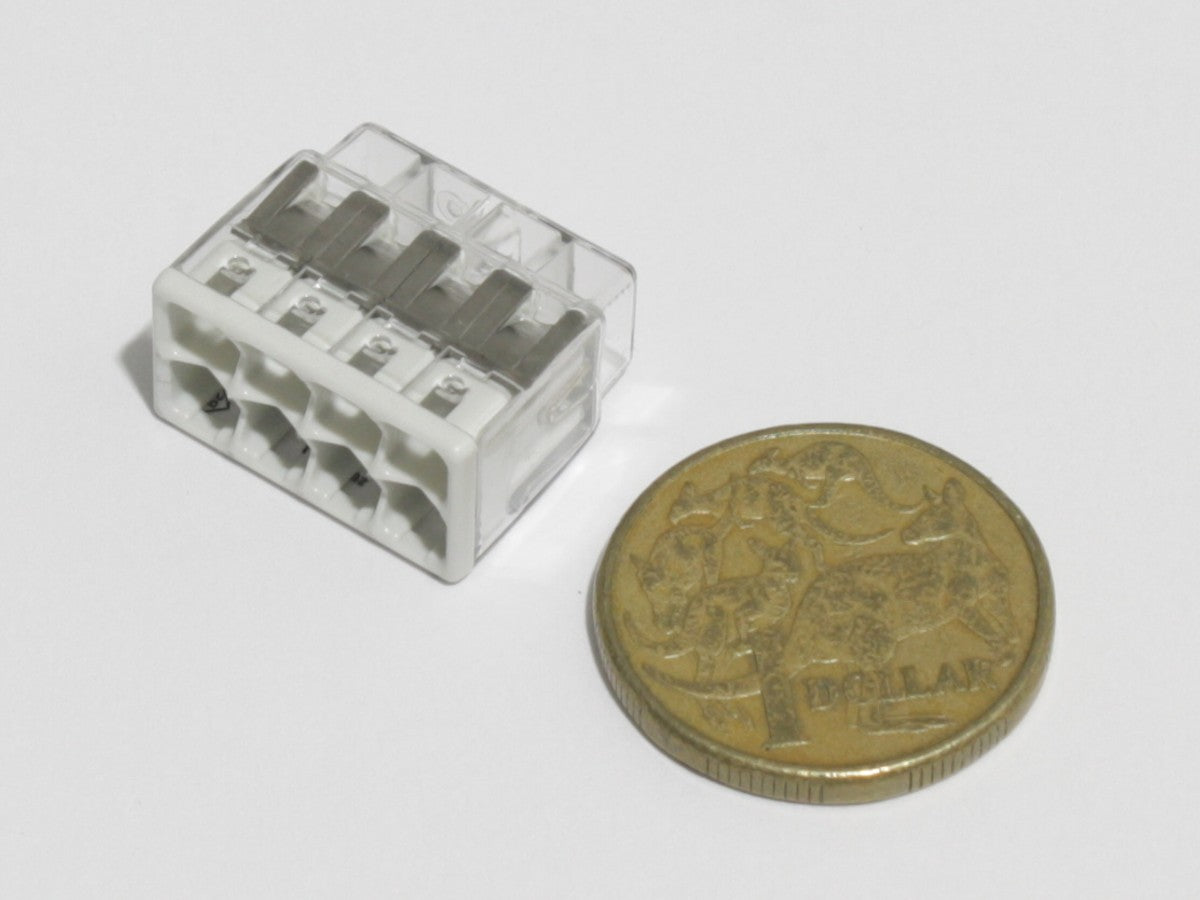

Overall Dimensions: 11.3 x 18.6 x 21.2mm
Flammability Rating: UL 94 V2
Certification Standards: IEC/EN 60998, KEMA-KEUR Approved, CE, RoHS Compliant
Practical Wiring Limit: While rated up to 32A for building infrastructure, for continuous 12V DC automotive circuits enclosed in tight, heat-retaining bike trays, we recommend a practical safety limit of 15A to 20A on your main feed wire.
