Power/Ground Distribution Blocks, 8-Way, Micro, 6A
$9.00 AUD

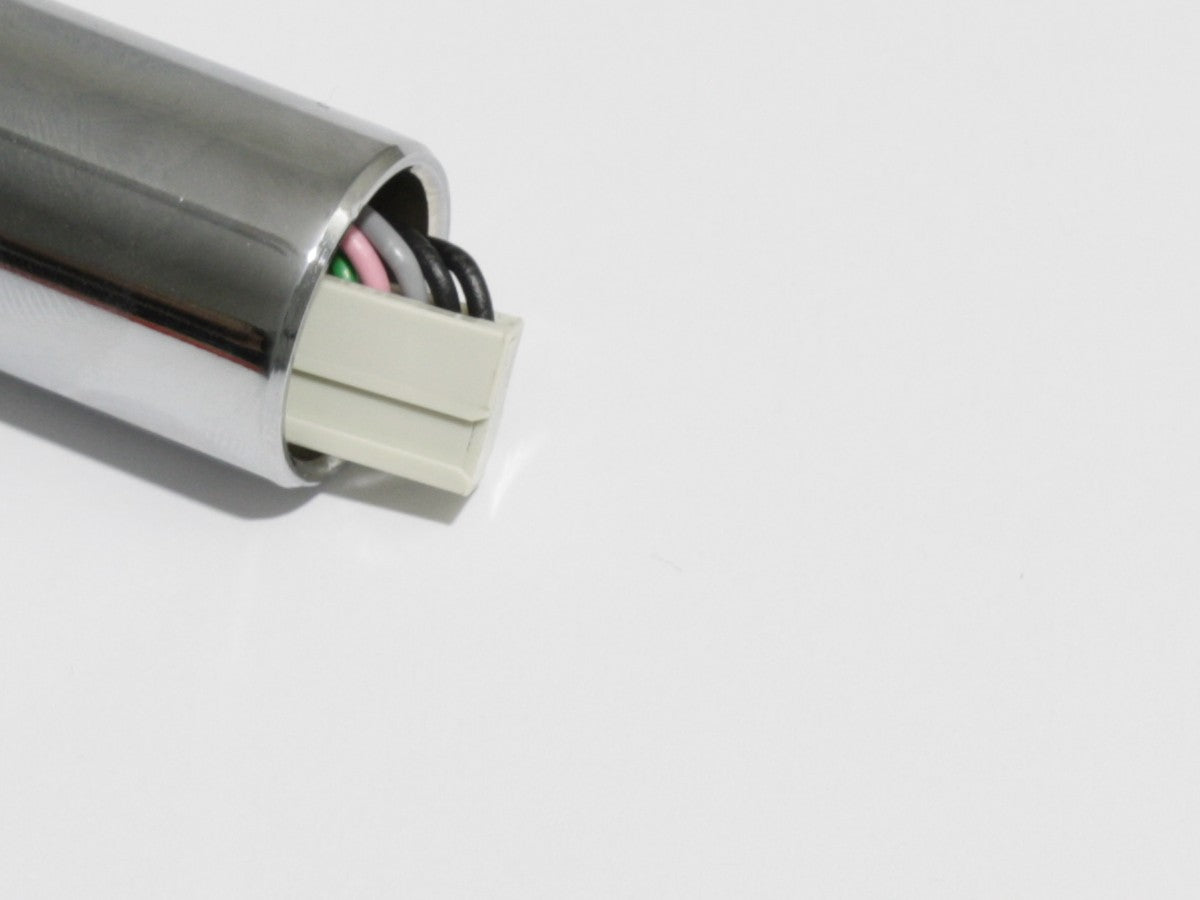

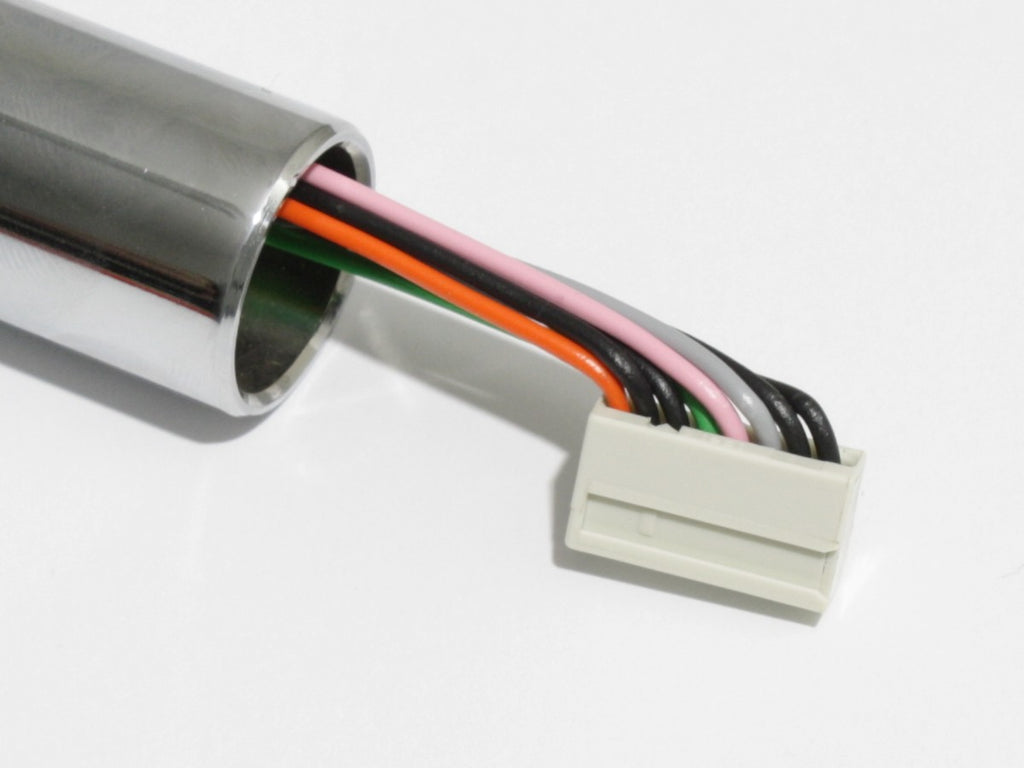

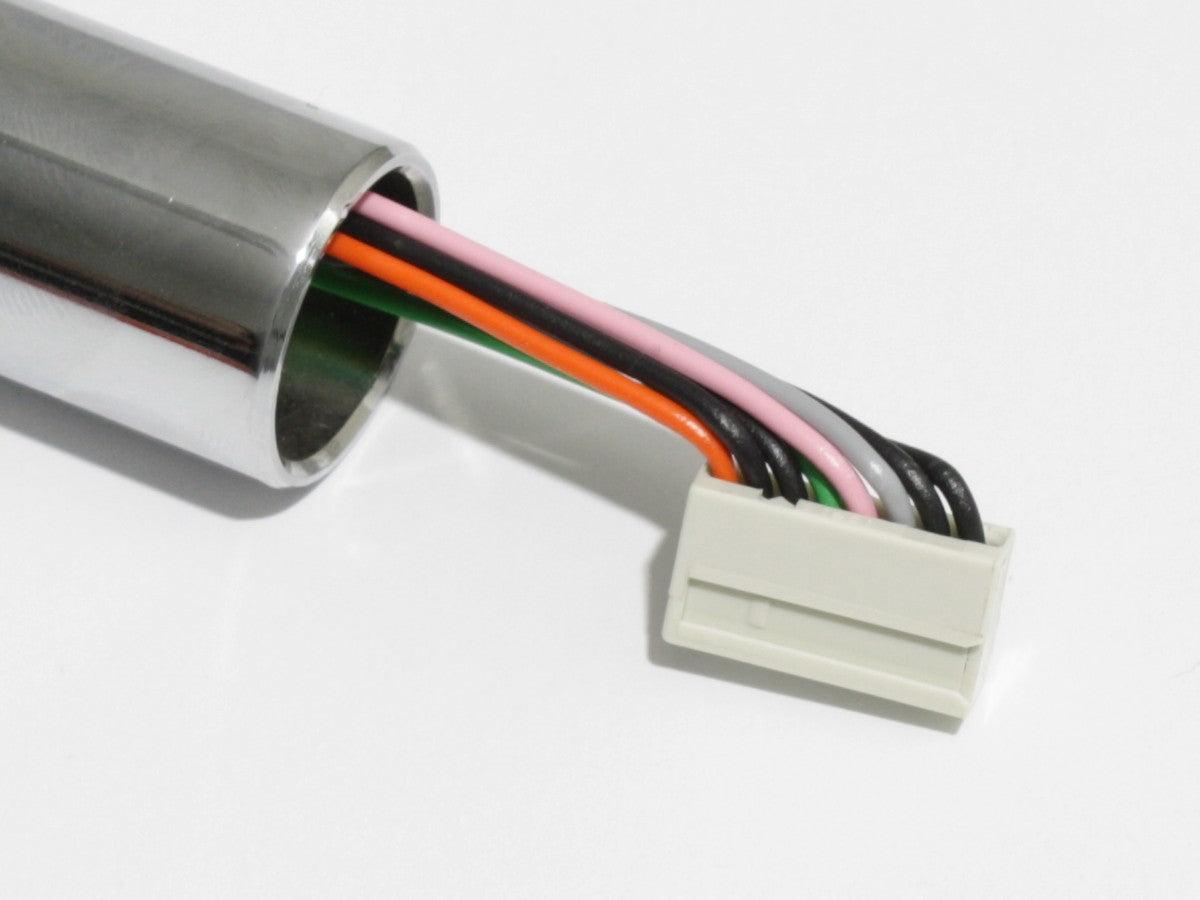

Absolutely tiny distribution block! Perfect for combining your switch block and/or LED indicator earths right inside your handlebars. Useful when fitting a motogadget mo.unit with or without the mo.button.
Ultra-compact, set of 2, high-quality 8-position distribution blocks, ideal for streamlining custom motorcycle electrical systems. Provides a clean, reliable method for distributing common power or ground paths within tight electronics trays, under-seat boxes, or headlight buckets.

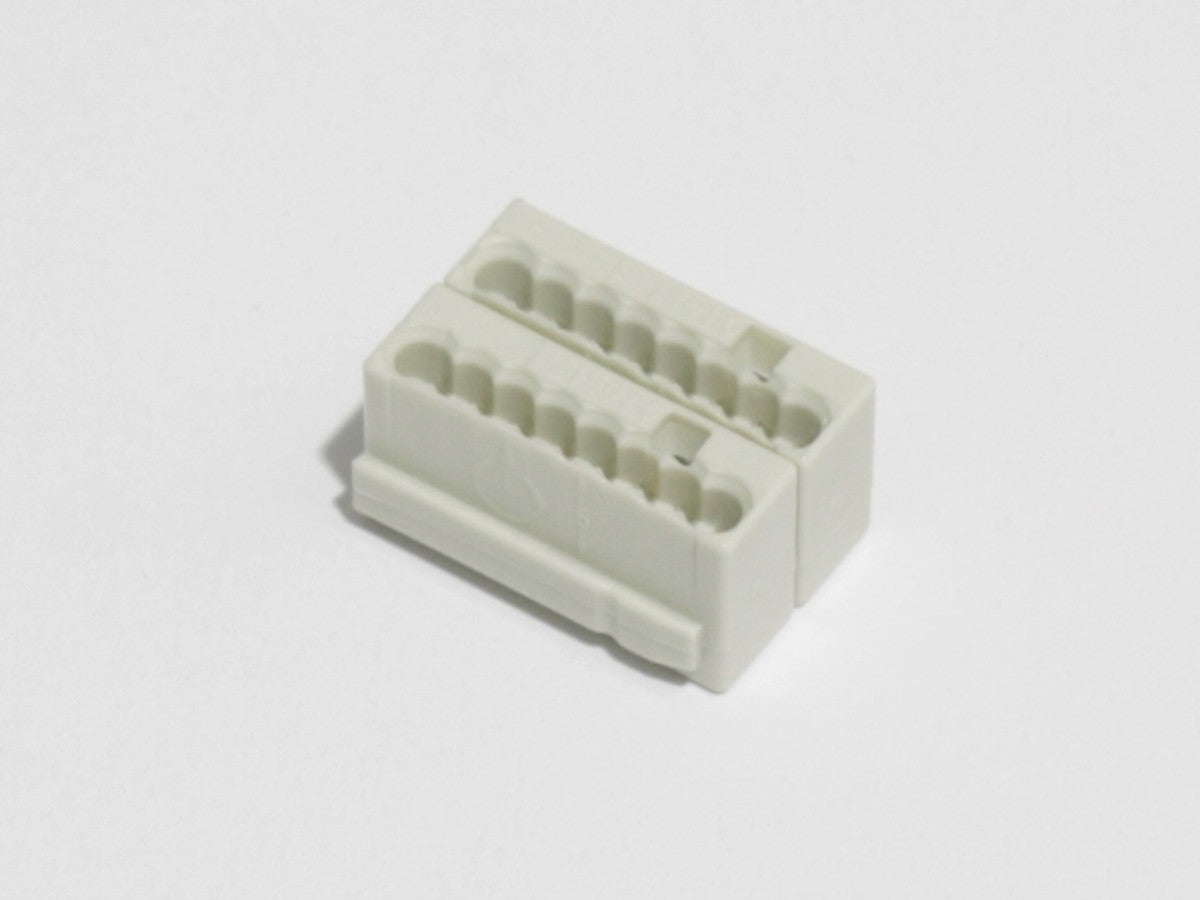

Multiple blocks can be physically clipped together side-by-side to form a neat, secure, and modular distribution bank.
Featuring push-in connection technology, allowing for fast, secure wiring that resists vibration and ensures long-term electrical contact reliability on custom builds.
Features

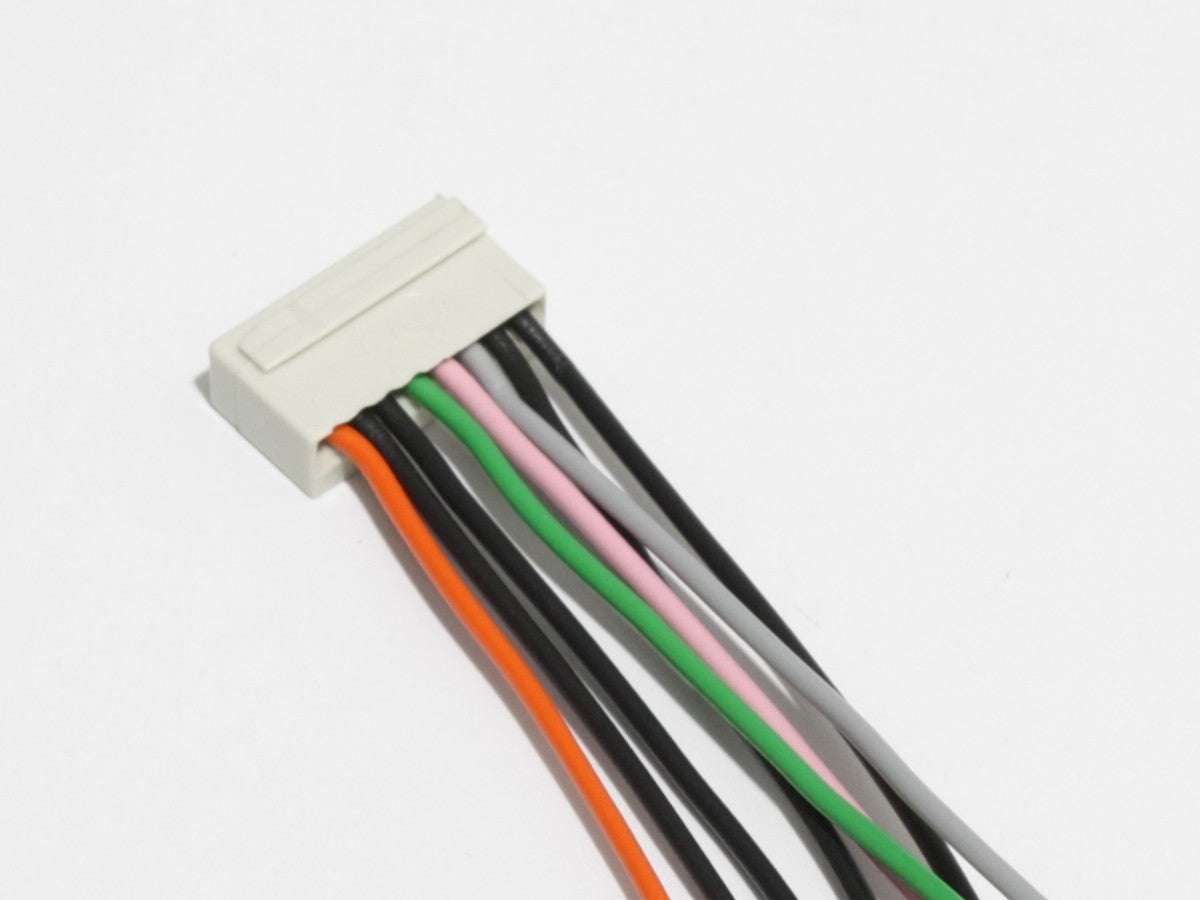

Pre-Bridged Configuration: All 8 terminal points are connected internally. This allows a single main input feed (power or ground) to safely distribute to 7 individual accessory outputs without the need for manual bridging.
Push-In Technology: Stripped cable ends with or without ferrules insert directly into the terminal point for a secure lock without the need for tools. Disconnection is achieved simply by pulling out the cable.
Vibration-Proof: The internal spring-loaded clip mechanism ensures wires remain securely locked down under constant operational movement and vibration.
Compact Footprint: Space-efficient design allows for multi-position distribution in highly restricted spaces.
Kit Contents
- 2 x 8-Port Micro Distribution Blocks
Specifications (per block)
Number of Connections: 8
Connection Method: Push-in connection
Wire Cross-Section Range: 0.2mm² to 1mm²
Max. Current: 6A
Max. Voltage Rating: 100V
Max. Continuous operating temperature: 105°C

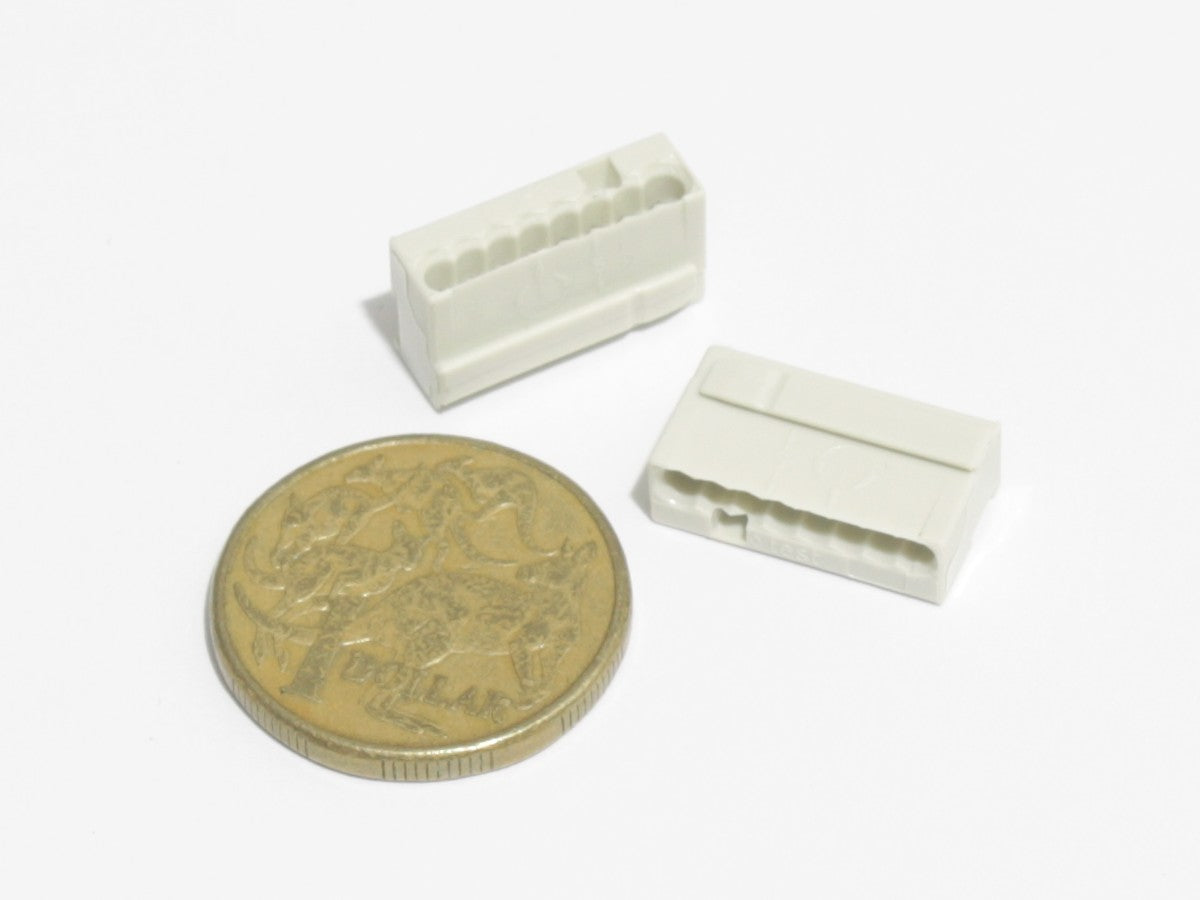

Overall Dimensions: 6.8 x 10 x 18.4mm
Certification Standards: CE, RoHS Compliant
Practical Wiring Limit: While rated up to 6A for low-voltage building infrastructure, that figure is qualified at a 60°C ambient. For 12V DC automotive circuits enclosed inside tight, heat-trapping handlebars or frame cavities where ambient can exceed that spec., we recommend a practical safety limit of 3-4A total across the block.
