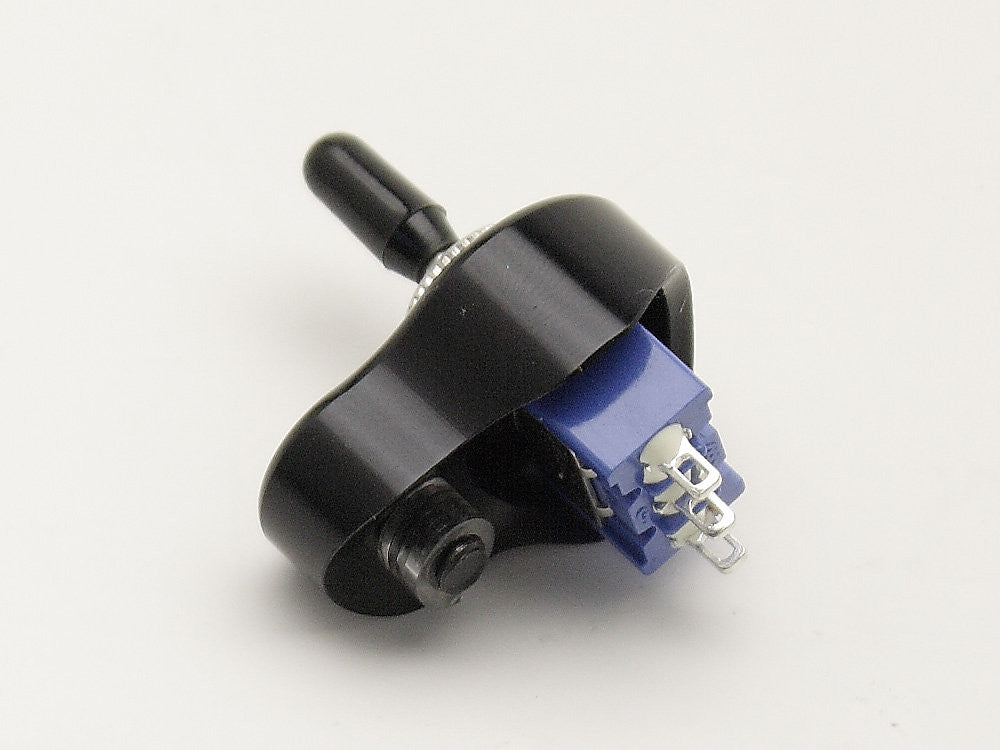

Switch Block, Black with Toggle

Mini handlebar switch block in black with ON-OFF-ON toggle switch. Made in Japan by POSH.

This listing is for 1 switch block as shown in images, switch included.

Beautiful craftsmanship as one would expect from POSH. Machined from billet aluminium. Great for that uncluttered look. Switch block body measures 28mm long x 18mm wide x 11mm high. Eliminate the need for your stock switch blocks. These mini switches have a contoured base designed to sit flush on 7/8" or 1" handlebars.

Easy to install. Requires the drilling of 2 holes - a 15mm hole for the push button switch & a 3.3mm hole needs to be drilled and tapped with an M4 tap to create threads for the supplied M4 screw which fastens the switch to the bar. All the associated wiring can be routed through the handlebar to an exit point of your choosing (exit hole may need to be drilled).

The switch configuration is ON-OFF-ON, centre being the off position. Many uses... left indicators-indicators off-right indicators, high beam-lights off-low beam or engine off-engine run-engine off for example. The toggle can be rotated in the base so as to provide a left-right or up-down operation.

Switches can handle up to around 6 amps... suitable for indicators, lights or ignition as an example.
