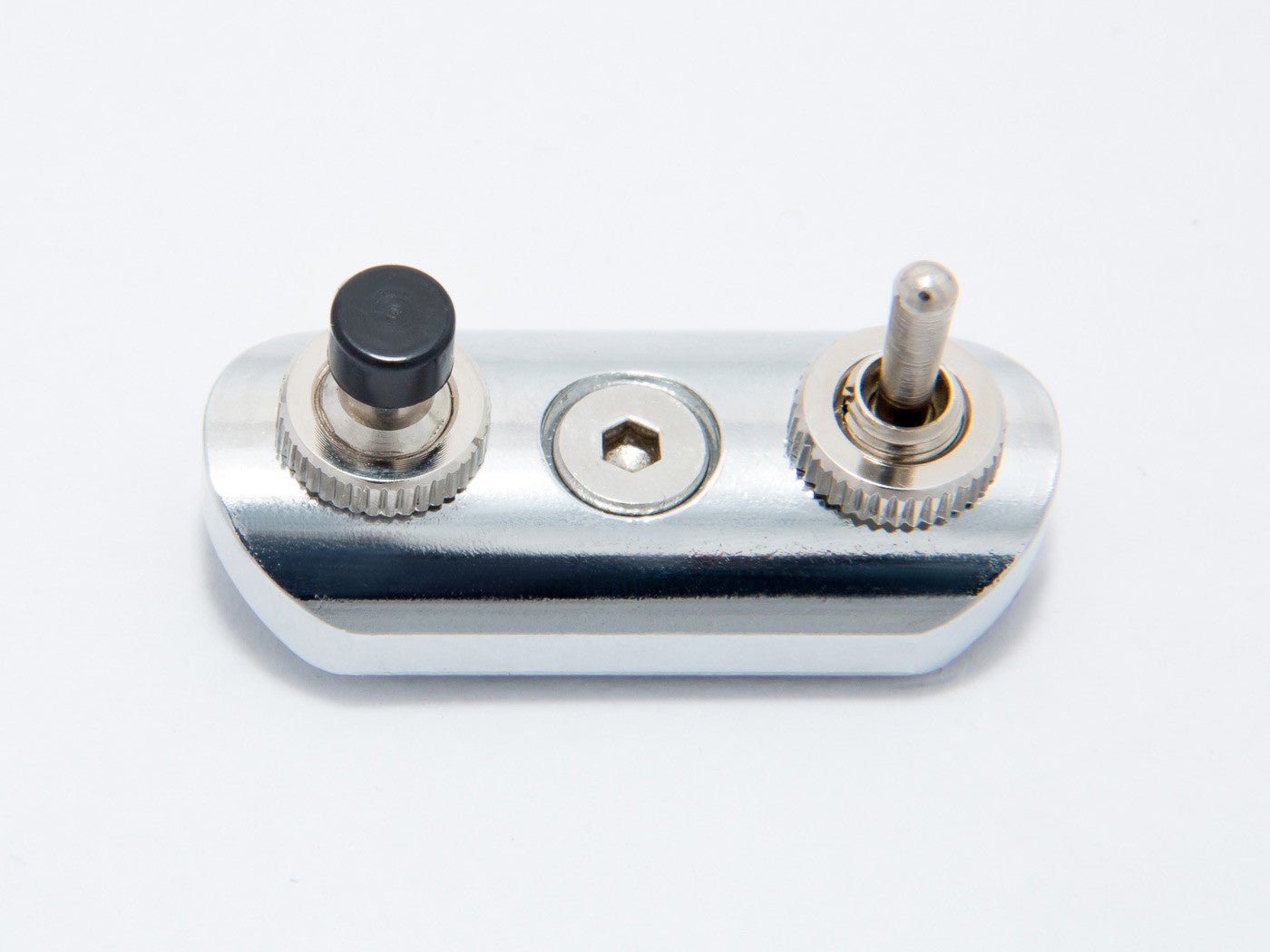

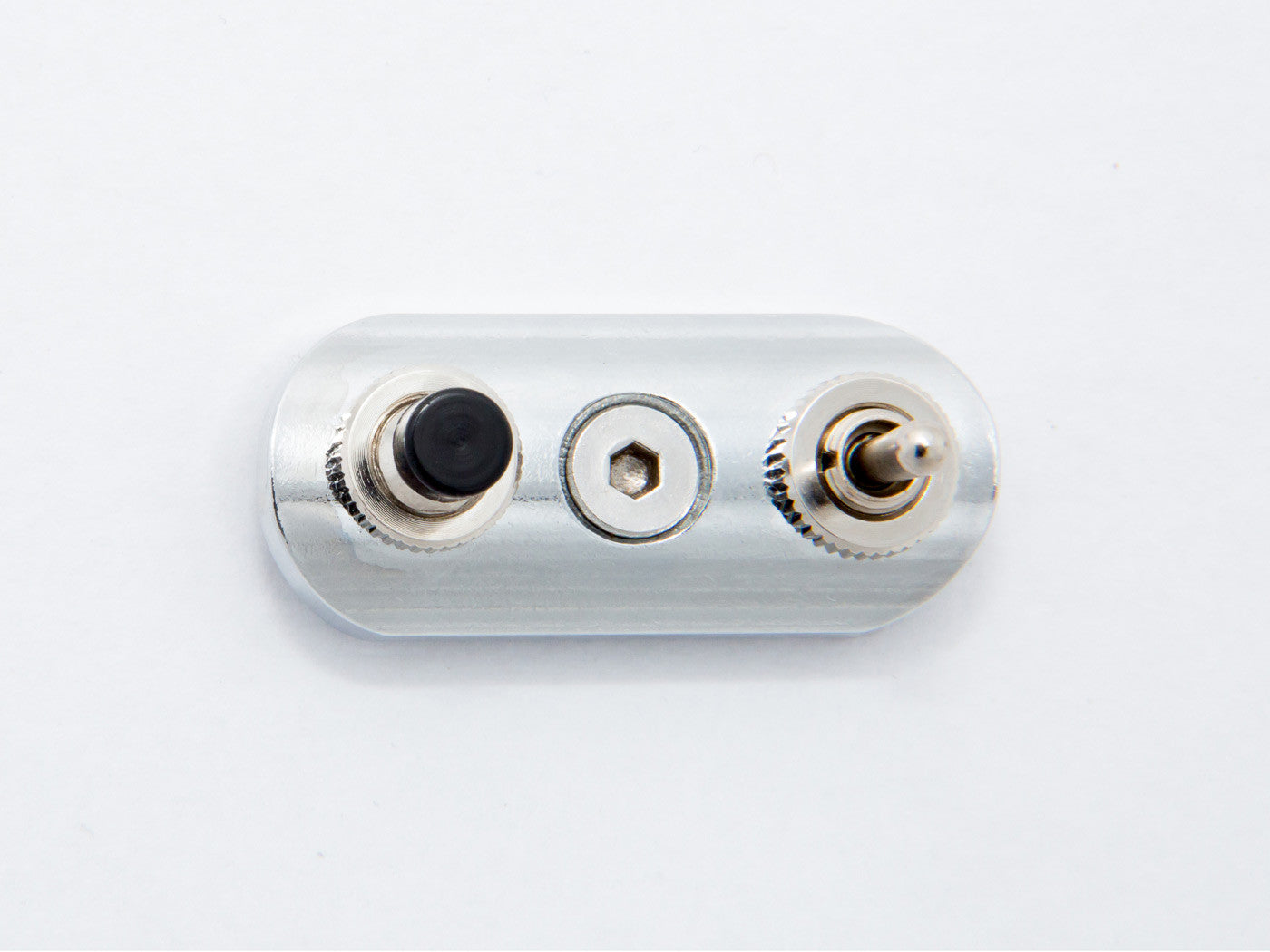

Mini switch block, chrome plated, low-profile, curved fascia.

Suit 7/8" handlebars.

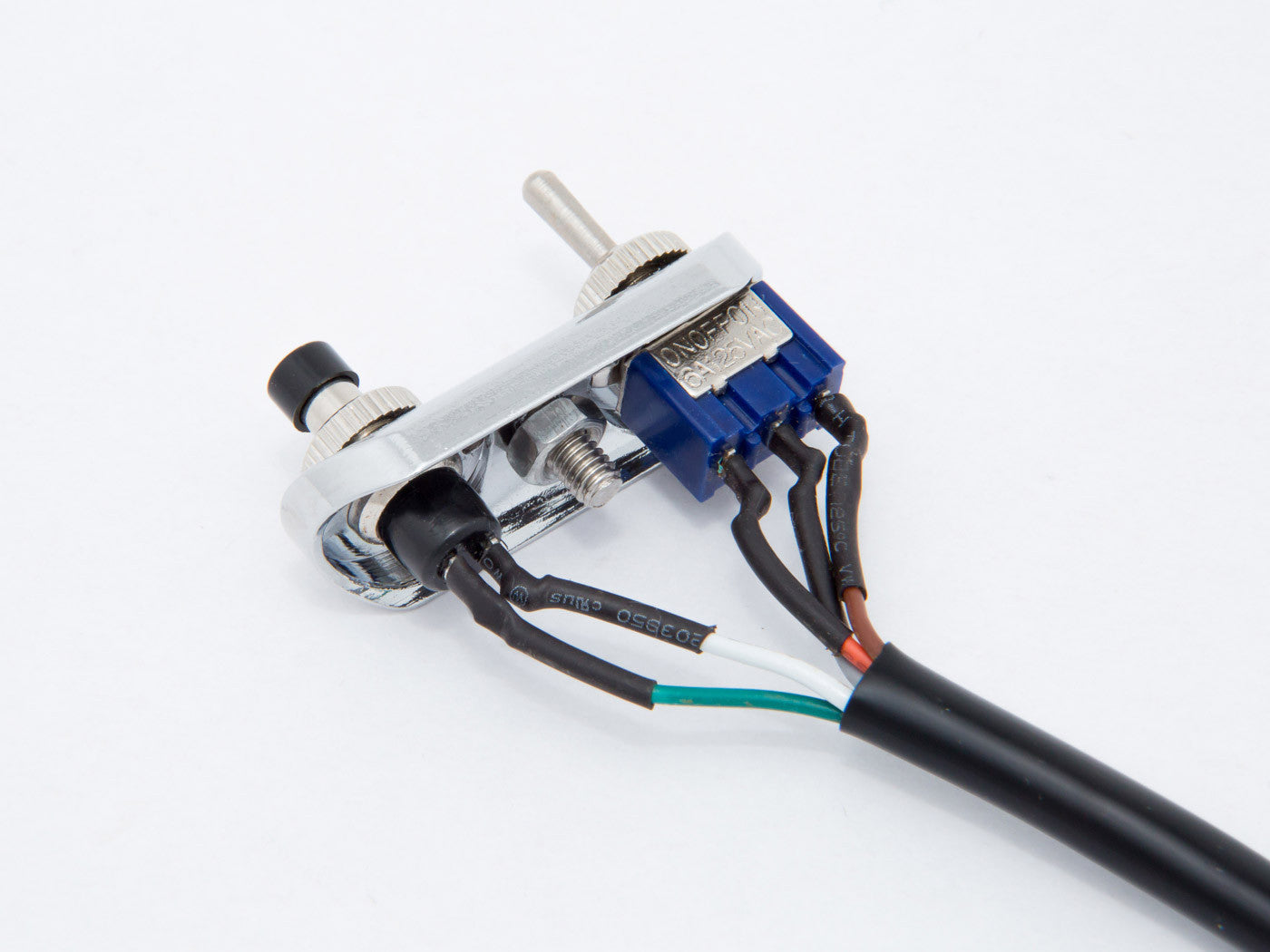

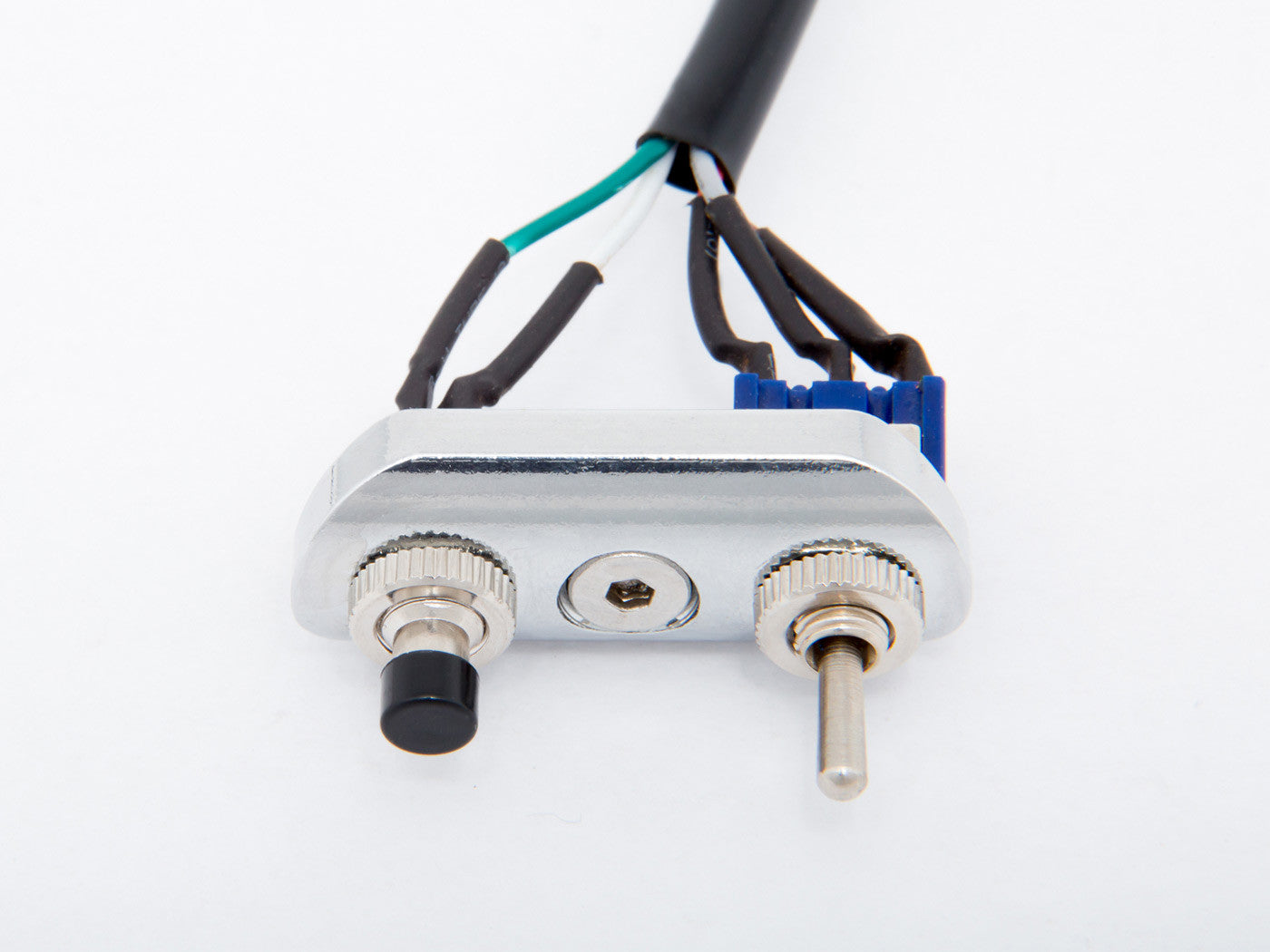

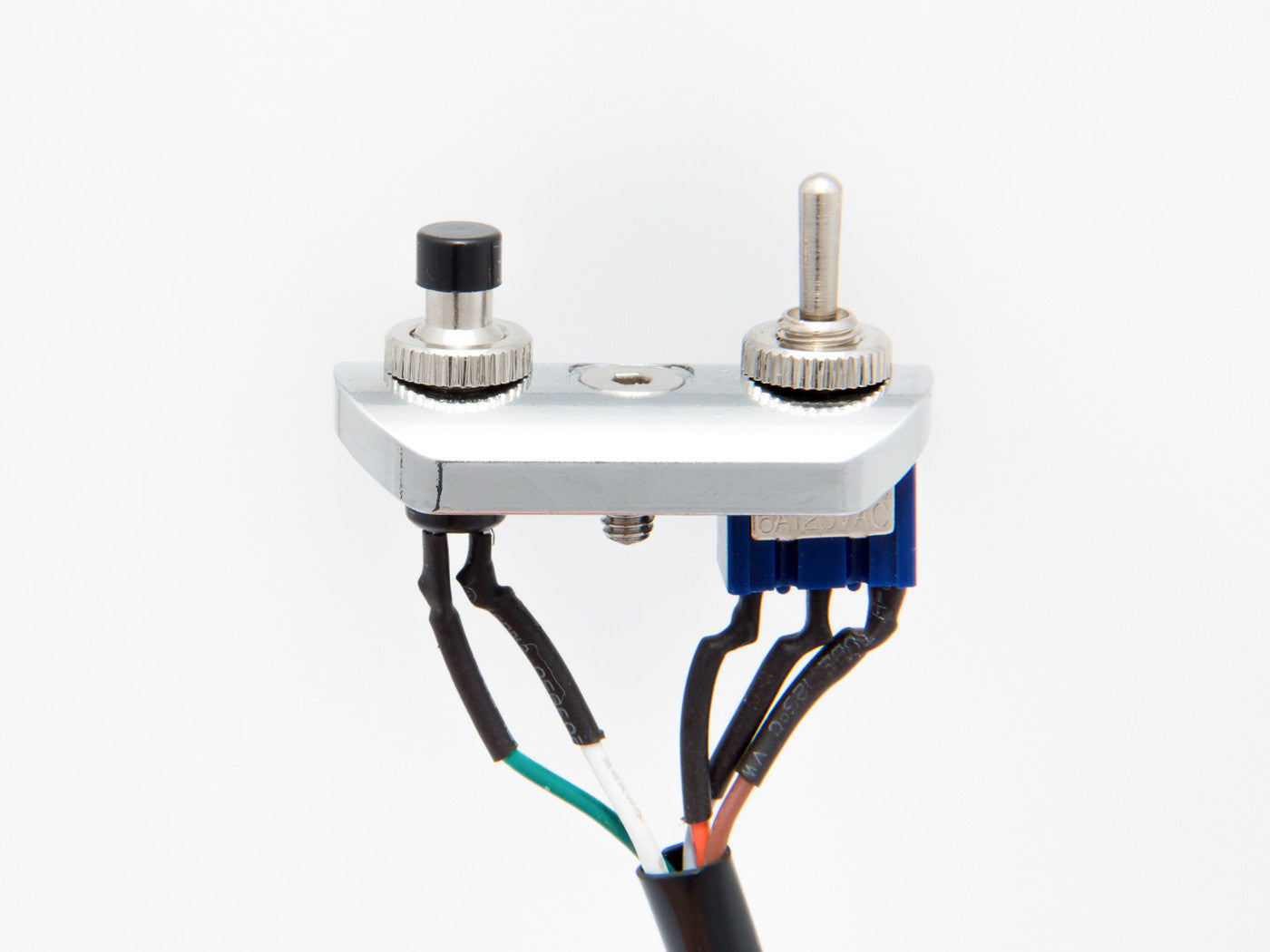

Designed by us here at MMCC, we've had the wires soldered on for you as we know how easy it is to destroy the switches by putting slightly too much heat in during soldering.

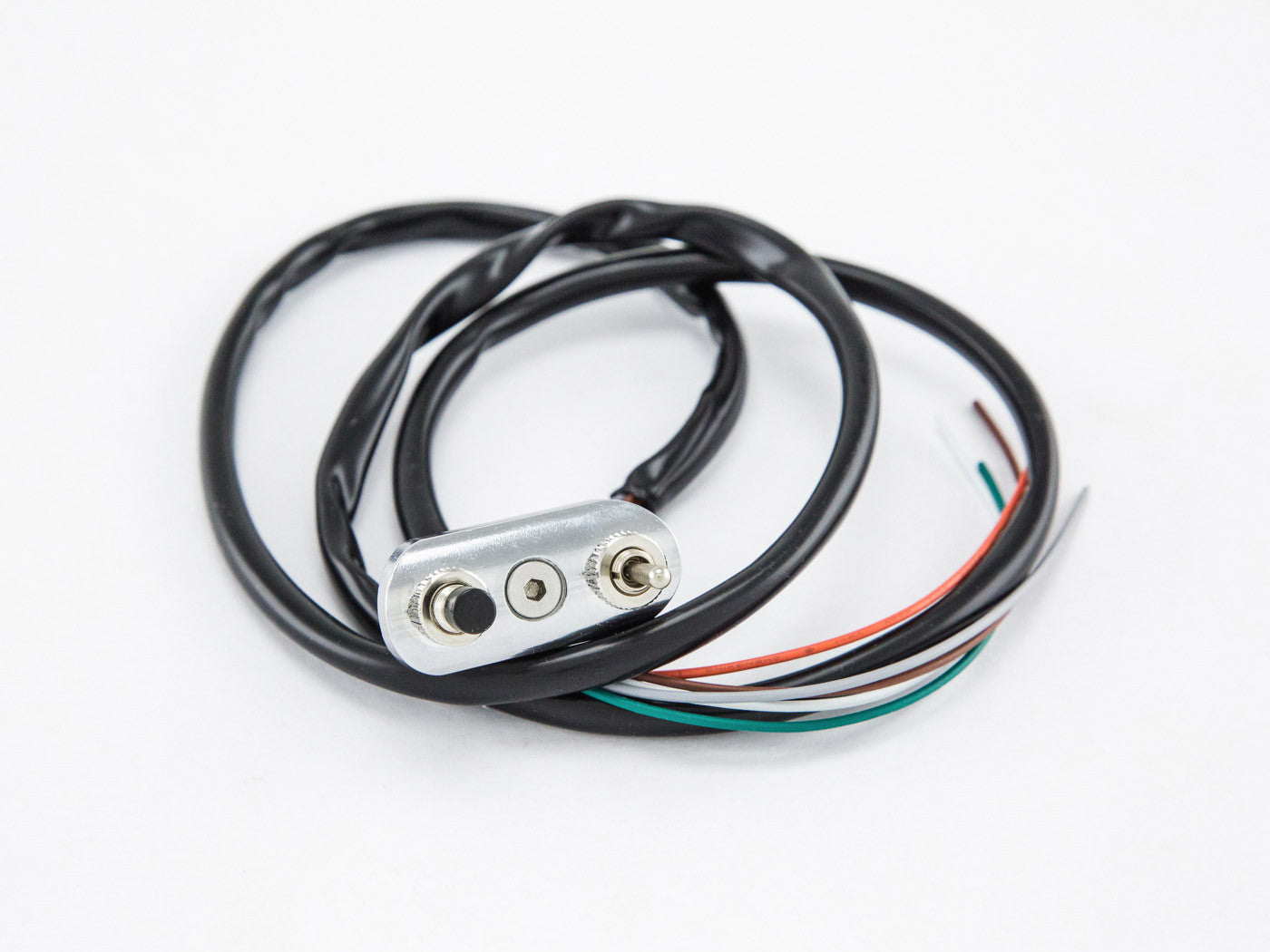

Wiring length: 85cm.

Suitable for lights, indicators, horn, starter, kill switch, etc.

This listing is for 1 switch block as shown in images, switches included.

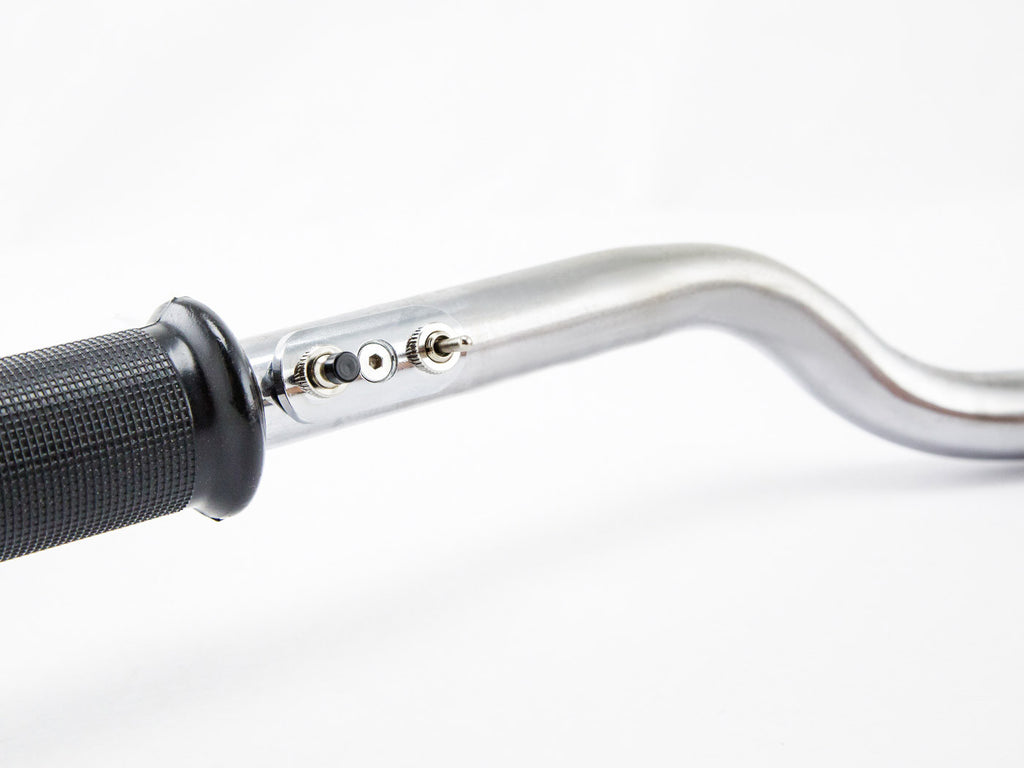

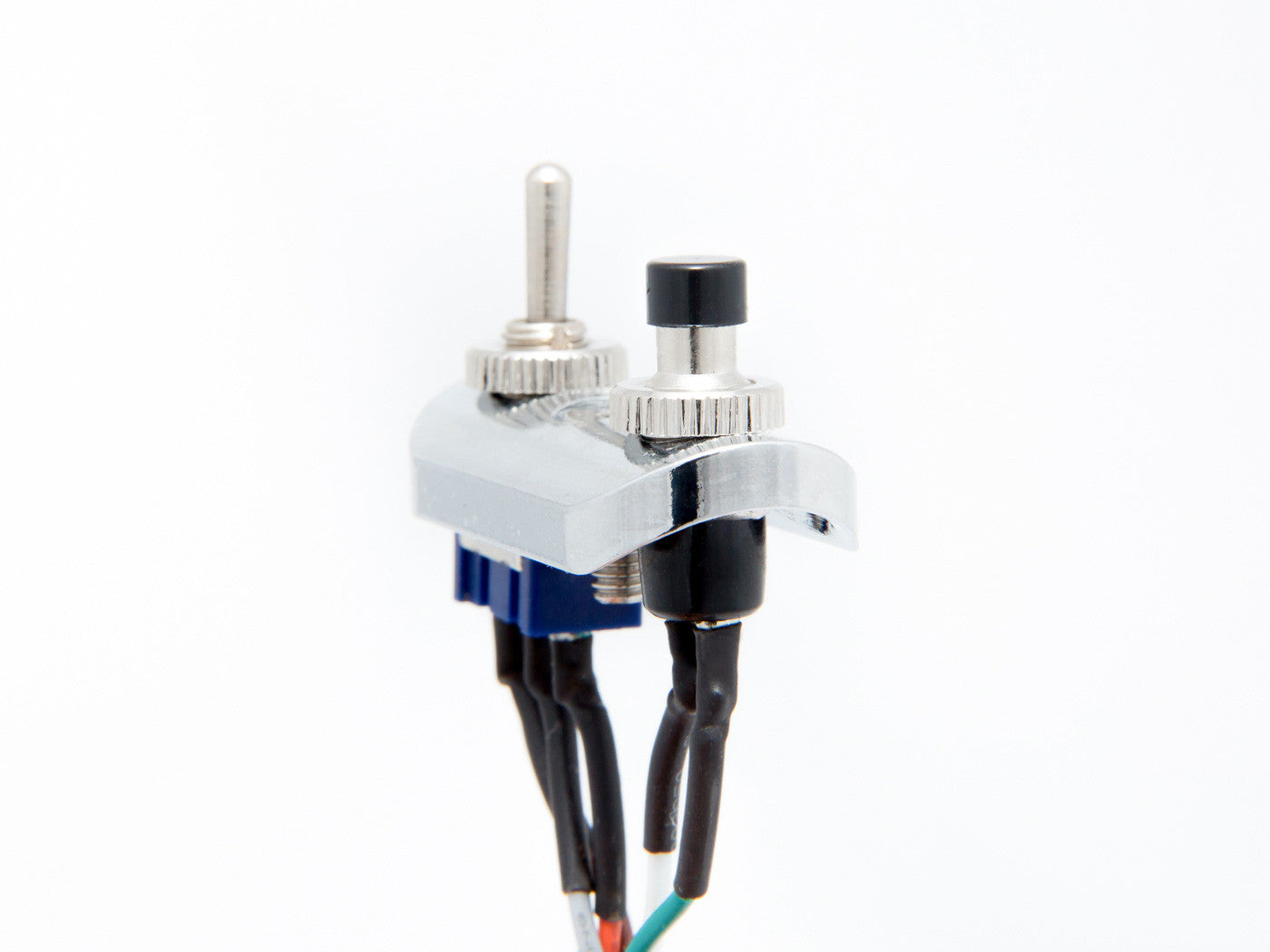

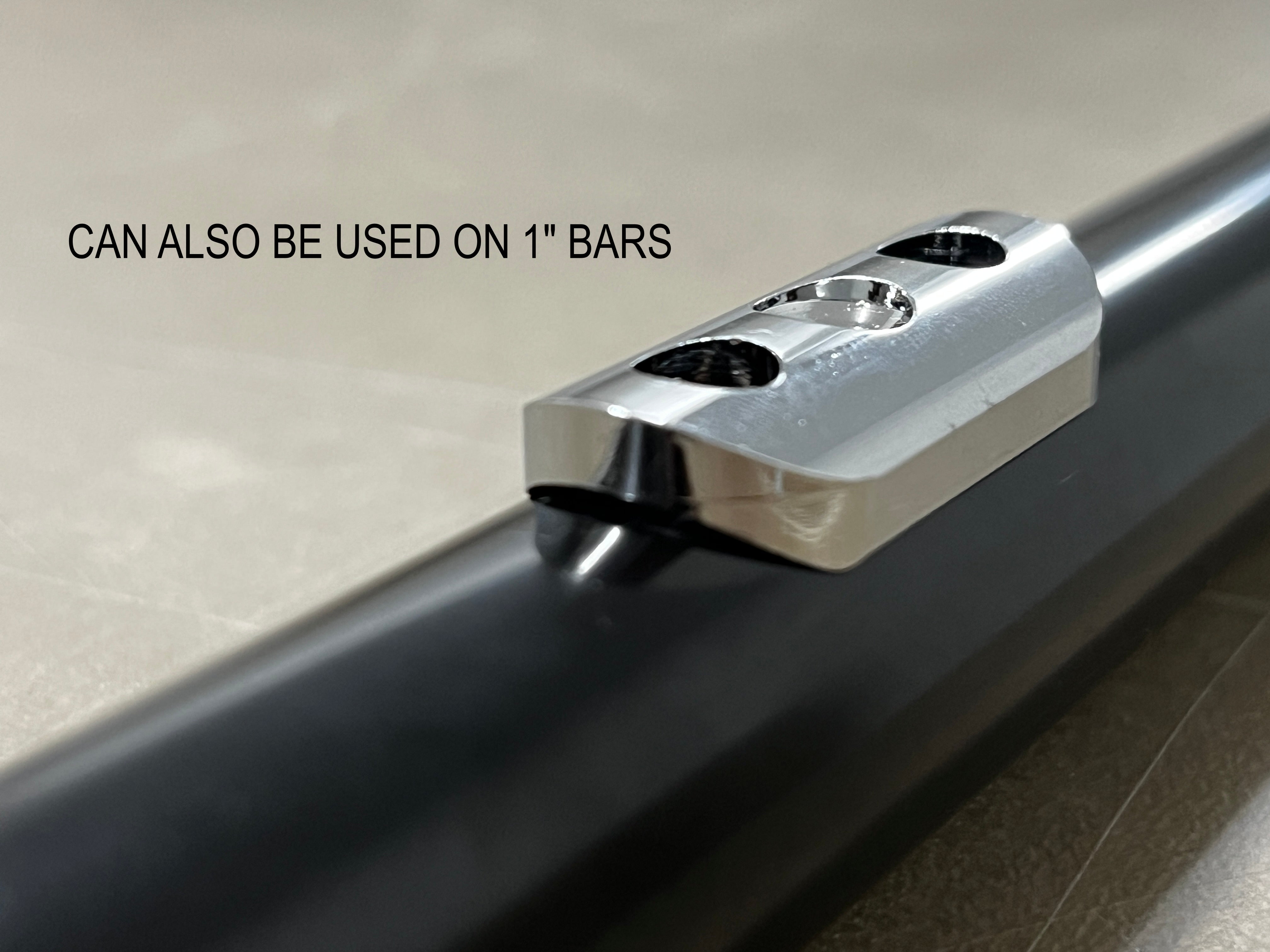

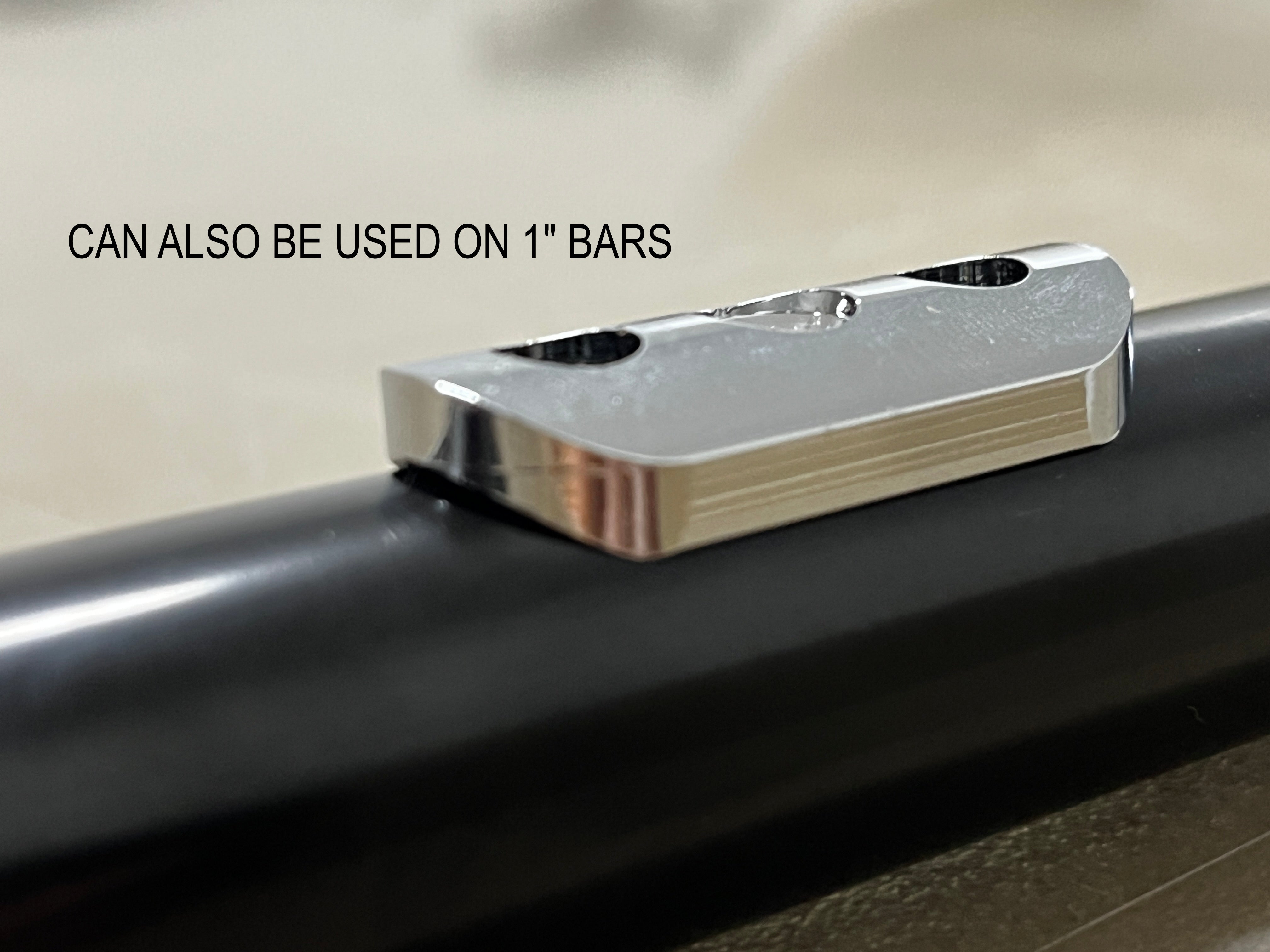

Machined from billet aluminium. Great for that uncluttered look. Switch block body measures 41mm long x 18mm wide. Eliminate the need for your stock switch blocks. These mini switches have a contoured base designed to sit flush on 7/8" handlebars.

Depending on your build, you may be able to get away with just 1 switch block. Others may require 2 - one for each side.

Easy to install. Requires the drilling of 2 holes - a 15mm diameter hole for the toggle switch, and a 9mm hole for the push button switch. Note: a 3.3mm hole needs to be drilled and tapped with an M4 tap to create threads for the supplied M4 screw which fastens the switch to the bar. All the associated wiring can be routed through the handlebar to an exit point of your choosing.

The button is a "push-on" momentary type (active only whilst pressing). The toggle is an "on/centre-off/on" type.

The push-button switch can handle around 4 amps. The toggle switch can handle around 6 amps. If you want to run higher loads than this, you will need to run them via relays.
