Warning Light Cluster, Daytona Gamma, Black, LED

DAYTONA GAMMA Micro LED Clamp-On Warning Light Cluster, Black with Mounting Bracket

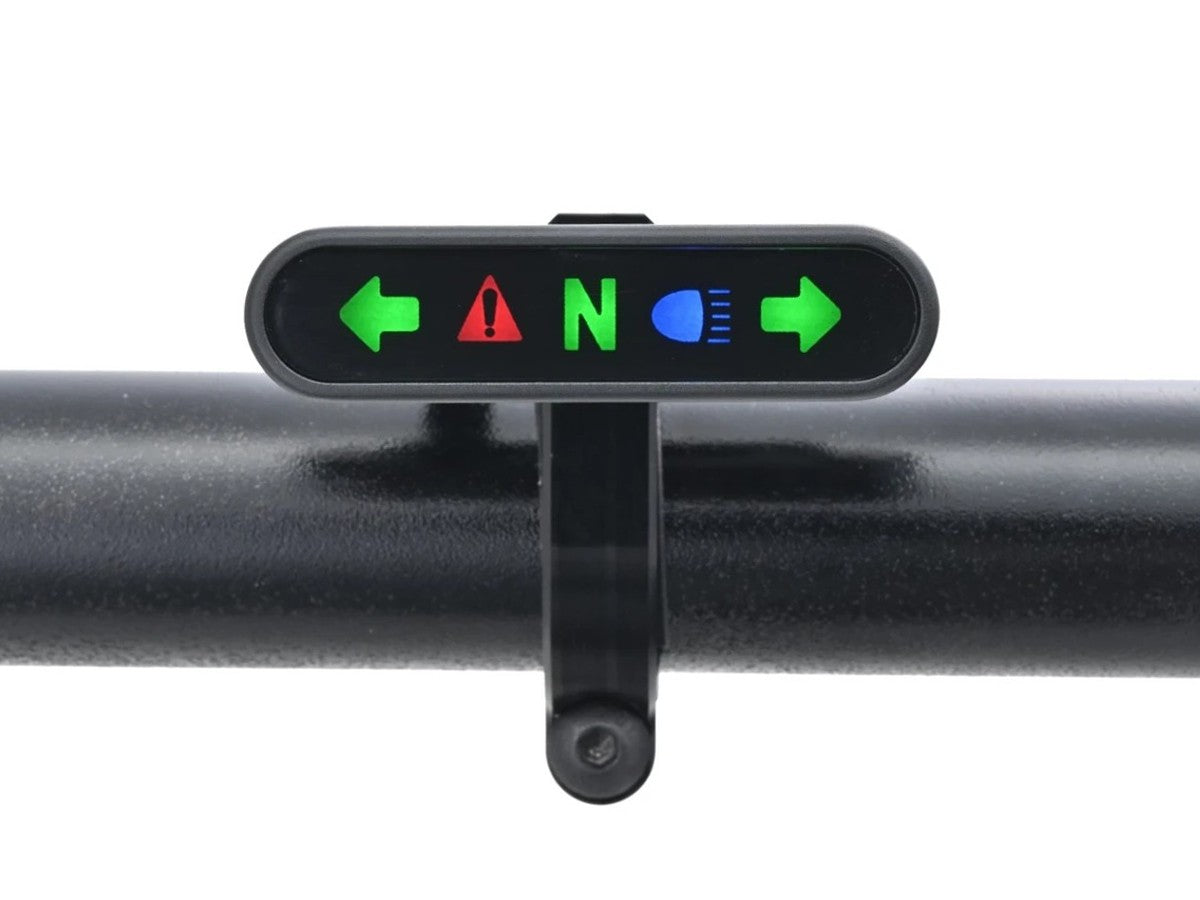

A compact aluminium-bodied warning light cluster packing five functions: left indicator, right indicator, neutral, high beam and warning (e.g. engine, oil press/temp) into one clamp-mounted unit.

Clamps directly to both 7/8" and 1" handlebars with included bracket and can be fitted either vertically or horizontally depending on your available space. Can also be mounted directly to a surface without brackets via the threaded mounting holes accessible from the back.

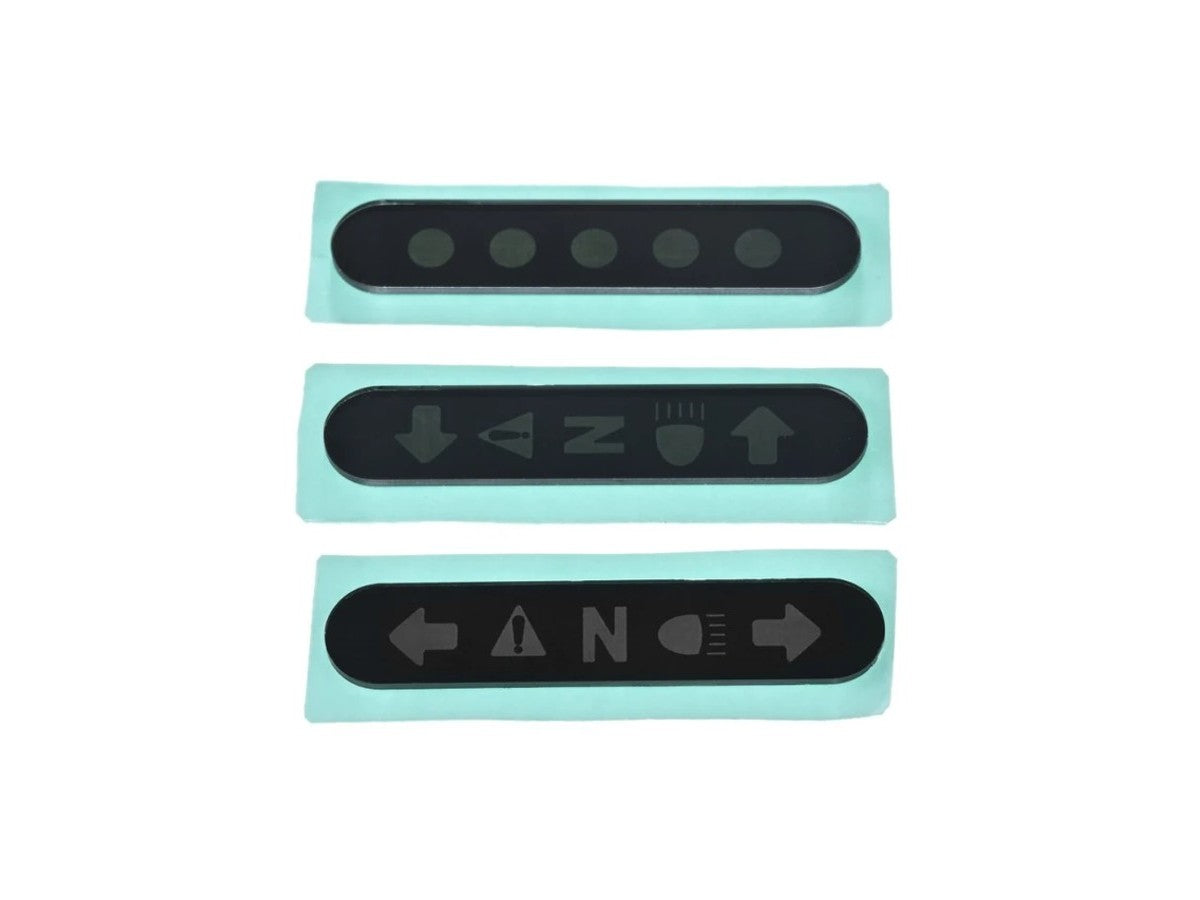

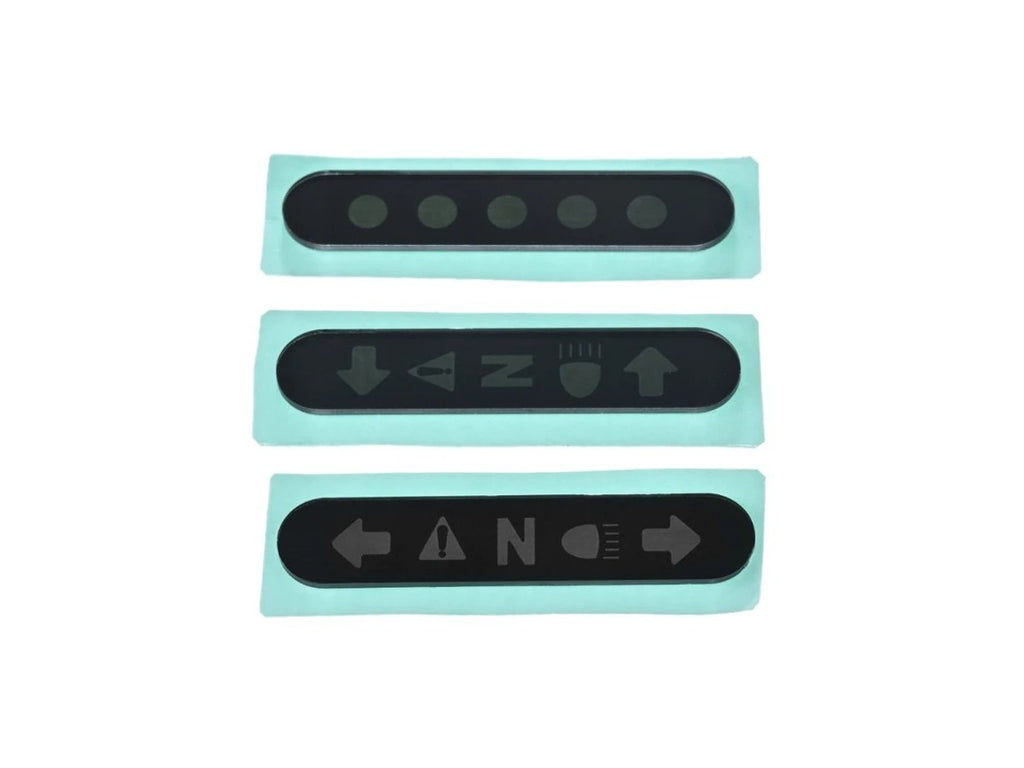

Three front lens designs are included so you can pick the layout that suits your build.

Rated IP65 for dust and water resistance once properly assembled.

12V DC vehicles only — not compatible with 6V systems, or any system without a functioning rectifier/regulator (including most battery-less/AC-electrical setups). Capacitor-eliminator setups are generally fine if the original rectifier/regulator is still fitted and working correctly. Worth checking system voltage stays steady across the rev range before wiring in. Not compatible on CAN-bus vehicles (including Harley-Davidson's CAN-bus-equipped models; operation on pre-1996 Harley-Davidson vehicles is unconfirmed by Daytona).

Specifications

Voltage: 12V

Housing Dimensions: 47 × 12 × 16mm, aluminium, matte black

Cable Length: 70cm

Clamp: fits 22.2mm (7/8") and 25.4mm (1") handlebars

LEDs: 5 total (left, right, neutral, high beam, warning)

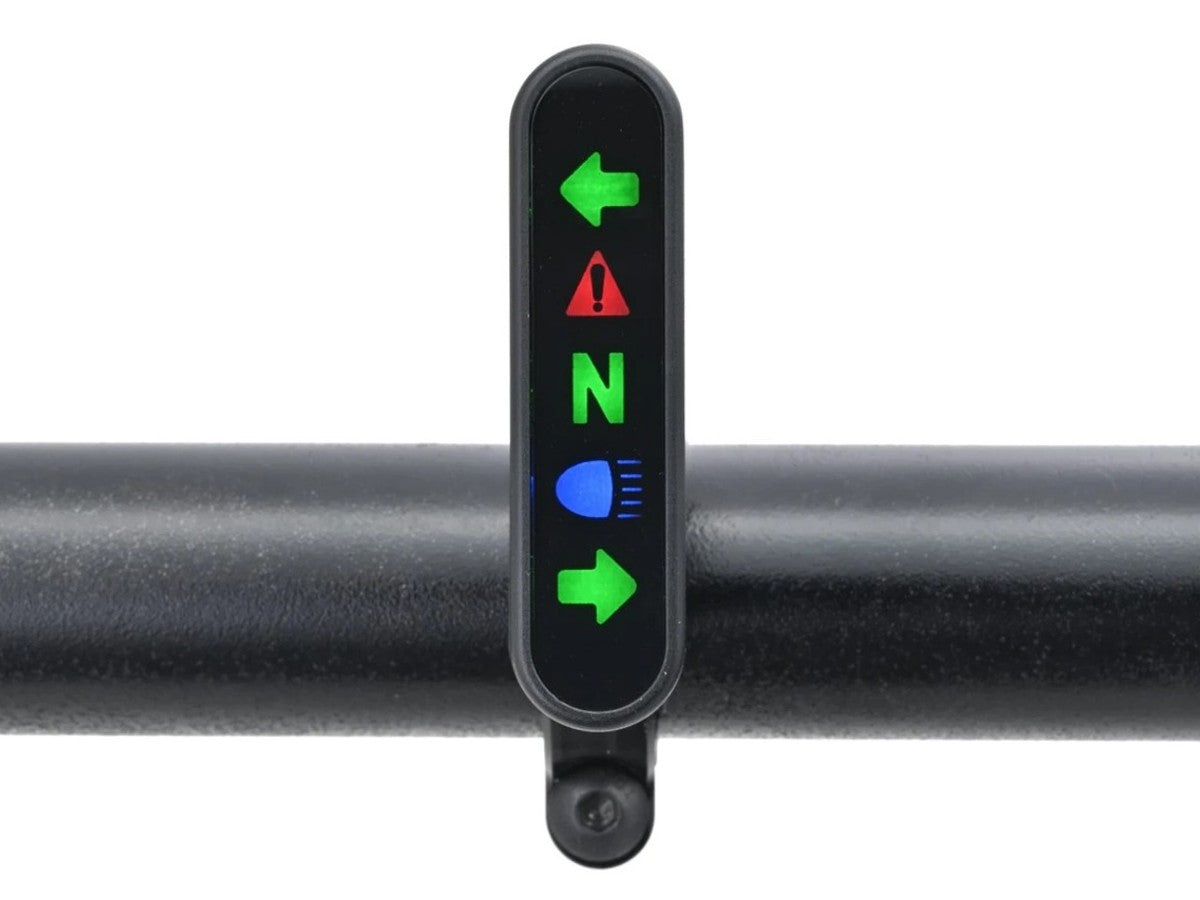

Mounting: vertical or horizontal orientation

Weatherproofing: IP65 equivalent (dust/water resistant, not submersion-rated)

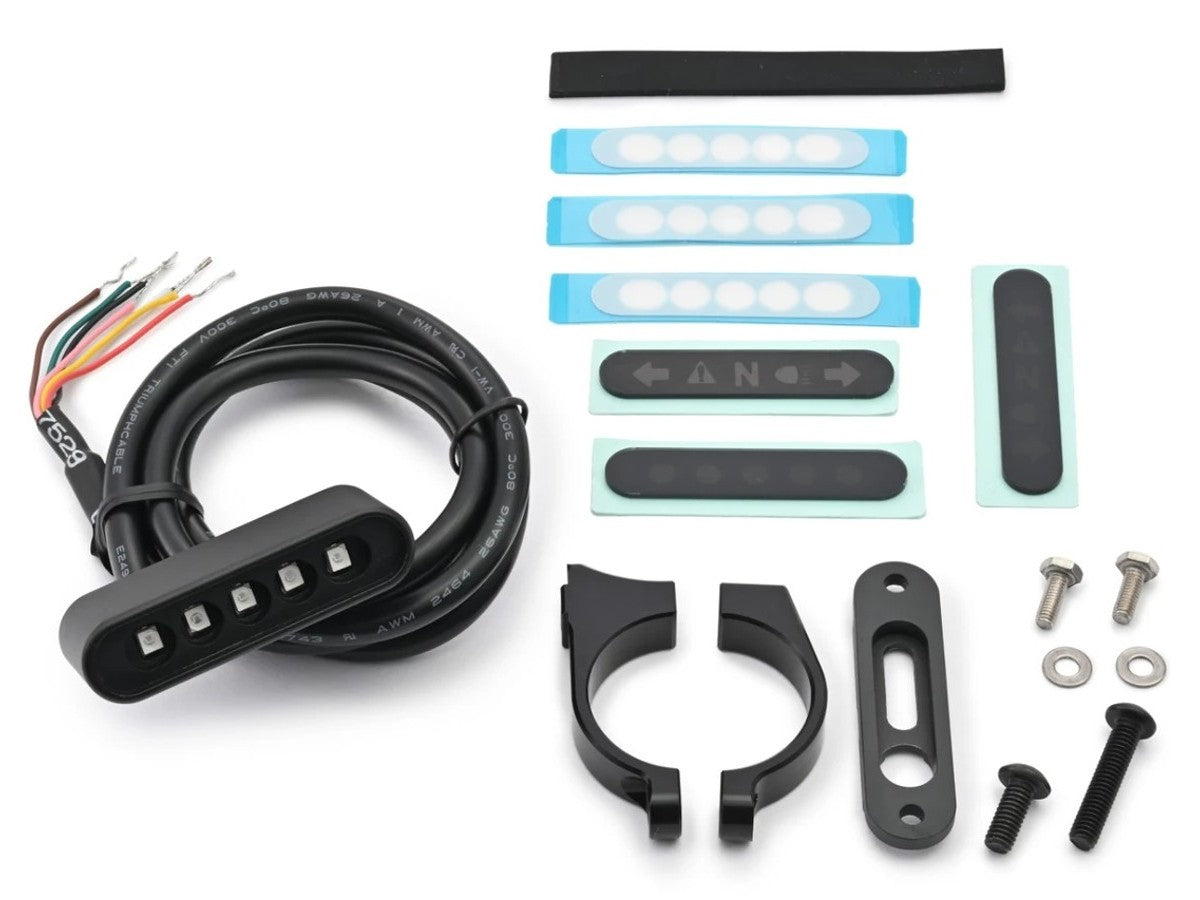

Package Contents

• 3 interchangeable front lens designs,
• Mounting bracket
• Mounting Fasteners
• Instruction manual in Japanese and the English manual from the export version of this product.
